北斗系统C波段导航信号调制方式及性能评估

doi:10.12305/j.issn.1001-506X.2022.12.25

系统工程与电子技术 ›› 2022, Vol. 44 ›› Issue (12): 3800-3810.doi: 10.12305/j.issn.1001-506X.2022.12.25

北斗系统C波段导航信号调制方式及性能评估

倪育德¹, 邹玲¹, 刘瑞华^1,*, 陈万通¹, 秦哲², 王凯¹

1. 中国民航大学电子信息与自动化学院, 天津 300300
2. 中国民航大学中欧航空工程师学院, 天津 300300

收稿日期:2021-10-25 出版日期:2022-11-14 发布日期:2022-11-24
通讯作者: 刘瑞华
作者简介:倪育德 (1963—), 男, 教授, 硕士, 主要研究方向为全球导航卫星系统、陆基导航系统|邹玲 (1996—), 女, 硕士研究生, 主要研究方向为卫星导航信号调制方式|刘瑞华 (1965—), 男, 教授, 博士, 主要研究方向为卫星导航|陈万通 (1986—), 男, 副教授, 博士, 主要研究方向为卫星导航|秦哲 (1981—), 男, 讲师, 博士, 主要研究方向为光子学与技术|王凯 (1982—), 男, 副教授, 硕士, 主要研究方向为机载电子系统测试与仿真
基金资助:
中央高校基本科研业务费专项基金(ZXH2011C013);国家重点研发项目(2016YFB0502402)

C-band navigation signal modulation mode and performance evaluation of BeiDou system

Yude NI¹, Ling ZOU¹, Ruihua LIU^1,*, Wantong CHEN¹, Zhe QIN², Kai WANG¹

1. College of Electronic Information and Automation, Civil Aviation University of China, Tianjin 300300, China
2. Sino-Europe Institute of Aeronautical Engineering, Civil Aviation University of China, Tianjin 300300, China

Received:2021-10-25 Online:2022-11-14 Published:2022-11-24
Contact: Ruihua LIU

摘要/Abstract

摘要：

针对C波段卫星导航信号严格的兼容性约束要求, 探索性地将基于椭圆球面波函数的连续相位调制(continuous phase modulation based on prolate spheroidal wave functions, CPM-PSWF)应用于C波段导航。在分析了关键参数对CPM-PSWF信号功率谱特性影响后, 初步筛选出4个CPM-PSWF子族作为C波段候选导航信号, 并对其导航性能指标进行评估。在权衡C波段信号频谱兼容性和各导航性能指标基础上, 提出将“QM2PSWF(10) C=6”且h=0.5的CPM-PSWF信号用作北斗系统C波段的导航信号。研究表明, 所提出的CPM-PSWF信号频谱泄露少, 带外衰减快, 同时在码跟踪精度与抗多径性能方面, 较当前C波段非CPM-PSWF候选导航信号更具竞争力。

关键词: C波段导航, 基于椭圆球面波函数的连续相位调制, 兼容性, 导航性能

Abstract:

In view of the strict compatibility constraint requirements of C-band satellite navigation signals, continuous phase modulation based on prolate spheroidal wave functions(CPM-PSWF) is exploratorily applied to C-band navigation. After analyzing the influence of key parameters on the power spectrum characteristics of CPM-PSWF signal, four CPM-PSWF sub-families are initially screened as candidate navigation signals for C-band, and their navigation performance indicators are also evaluated. On the basis of weighing the spectrum compatibility of the C-band signal and various navigation performance indicators, it is proposed to use the CPM-PSWF signal with "QM2PSWF(10) C=6" and h=0.5 as the C-band navigation signal of the BeiDou system. The research shows that compared with the current C-band non-CPM-PSWF candidate navigation signal, the proposed CPM-PSWF signal spectrum leakage is less, the out-of-band attenuation is faster, and the code tracking accuracy and anti-multi-path performance are more competitive.

Key words: C-band navigation, continuous phase modulation based on prolate spheroidal wave functions (CPM-PSWF), compatibility, navigation performance

中图分类号:

V249.3

倪育德, 邹玲, 刘瑞华, 陈万通, 秦哲, 王凯. 北斗系统C波段导航信号调制方式及性能评估[J]. 系统工程与电子技术, 2022, 44(12): 3800-3810.

Yude NI, Ling ZOU, Ruihua LIU, Wantong CHEN, Zhe QIN, Kai WANG. C-band navigation signal modulation mode and performance evaluation of BeiDou system[J]. Systems Engineering and Electronics, 2022, 44(12): 3800-3810.

图/表 17

图1

图2

图3

图4

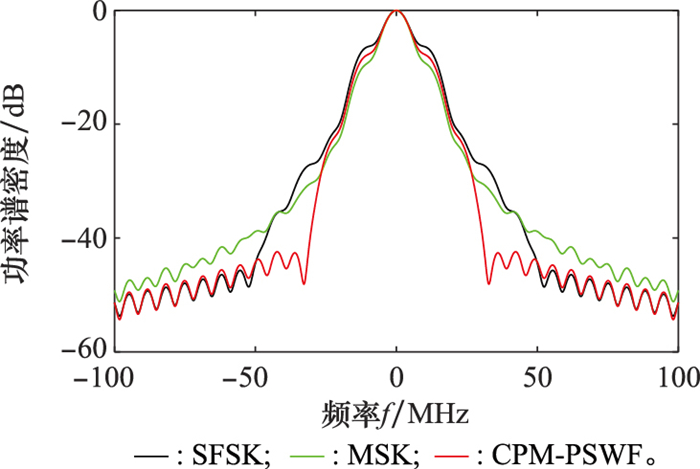

图5

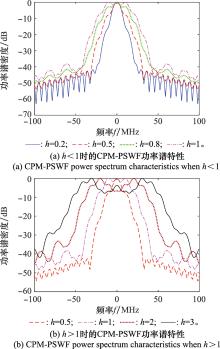

图6

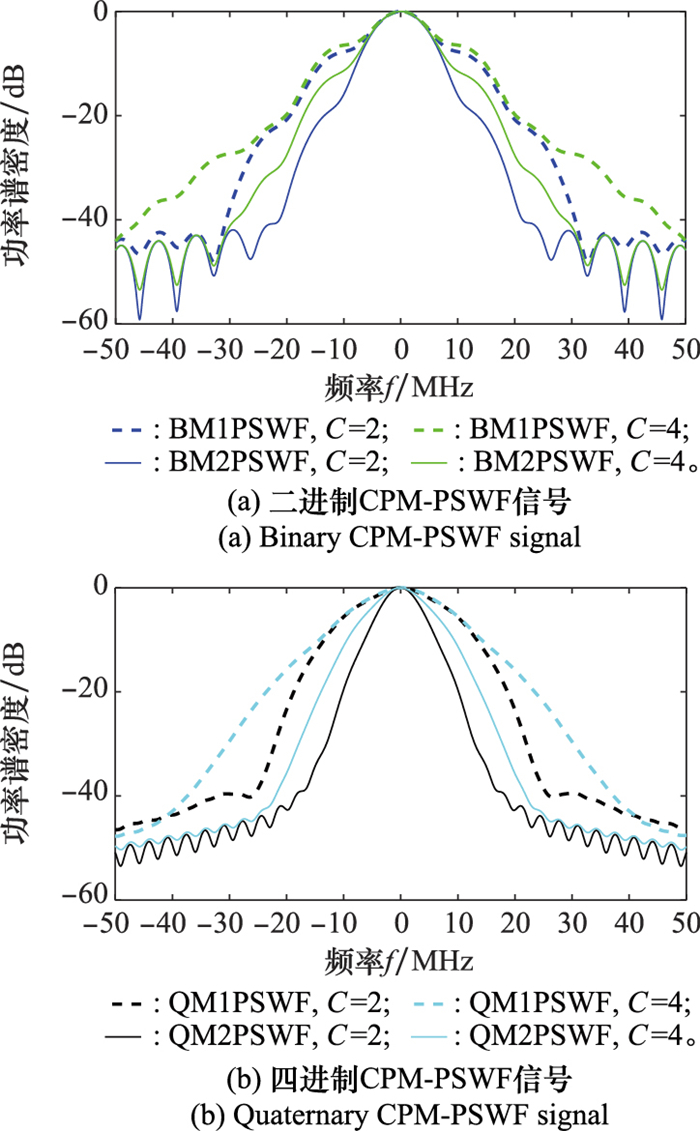

图7

图8

图9

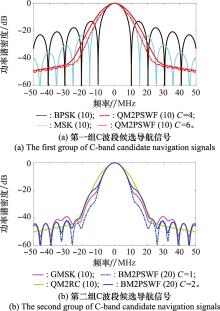

图10

图11

图12

表1

图13

表2

图14

表3

参考文献 36

1	GAO Y , YAO Z , LU M Q . High-precision unambiguous tracking technique for BDS B1 wideband composite signal[J]. Navigation, 2020, 67 (3): 633- 650. doi: 10.1002/navi.377
2	WANG K D , ZHANG S X , WANG J L . Feasibility of using an S-band GNSS carrier by comparing with L and C bands[J]. Advances in Space Research, 2020, 66 (9): 2232- 2244. doi: 10.1016/j.asr.2020.07.029
3	王瑛, 蒙艳松, 陶晓霞, 等. CN频段卫星导航研究[C]//第七届中国卫星导航学术年会论文集—S03卫星导航信号, 2016: 109-117.
	WANG Y, MENG Y S, TAO X X, et al. Study on CN band satellite navigation[C]//Proc. of the 7th China Satellite Navigation Academic Conference—S03 Satellite Navigation Signal, 2016: 109-117.
4	International Telecommunication Union. Radio regulations[R]. Geneva: International Telecommunication Union, 2001.
5	IRSIGLER M , HEIN G W , SCHMITZ-PEIFFER A . Use of C-band frequencies for satellite navigation: benefits and drawbacks[J]. GPS Solutions, 2004, 8 (3): 119- 139. doi: 10.1007/s10291-004-0098-2
6	COLZI E, SAMSON J, MRISCI M, et al. Assessment of the feasibility of GNSS in C-band[C]//Proc. of the International Communications Satellite Systems Conference, 2008.
7	朱亮, 陆明泉, 冯振明. 北斗系统C频段导航信号的波形设计[J]. 电子技术应用, 2012, 38 (8): 89- 92. doi: 10.16157/j.issn.0258-7998.2012.08.029
	ZHU L , LU M Q , FENG Z M . Waveform design for BeiDou C band navigation signal[J]. Measurement Control Technology and Instruments, 2012, 38 (8): 89- 92. doi: 10.16157/j.issn.0258-7998.2012.08.029
8	IRSIGLER M, HEIN G W, EISSFELLER B, et al. Aspects of C-band satellite navigation: signal propagation and satellite signal tracking[C]//Proc. of the European Navigation Conference, 2002: 17-30.
9	AVILA-RODRIGUEZ J A, WALLNER S, WON J H, et al. Study on a Galileo signal and service plan for C-band[C]//Proc. of the International Technical Meeting of the Satellite Division of the Institute of Navigation, 2008: 2515-2529.
10	SCHMITZ-PEIFFER A, STOPFKUCHEN L, FLOCH J, et al. Assessment on the use of C-band for GNSS within the European GNSS evolution programme[C]//Proc. of the ION GNSS, 2008.
11	SCHMITZ-PEIFFER A , STOPFKUCHEN L , FLOCH J , et al. Architecture for a future C-band/L-band GNSS mission-part1: C-band services, space and ground segment, overall performance[J]. Inside GNSS, 2009, 4 (3): 47- 56.
12	RODRIGUE J A , SCHMITZPEIFFER A , WON J H , et al. Architecture for a future C-band/L-band GNSS mission-part2: signal considerations and related user terminal aspects[J]. Inside GNSS, 2009, 4 (4): 52- 64.
13	LIU M H , ZHAN X Q , LI W , et al. An improved MSK-BCS modulation for global navigation satellite systems in C band[J]. IEEE Trans.on Electrical and Electronic Engineering, 2016, 11 (4): 474- 479. doi: 10.1002/tee.22264
14	孙岩博. 基于连续相位调制的多波段导航信号模型研究[D]. 哈尔滨: 哈尔滨工程大学, 2018.
	SUN Y B. Research on multiband navigation signal model based on continuous phase modulation[D]. Harbin: Harbin Engineering University, 2018.
15	XIA X , TANG Z P , WEI J L . Spectrally efficient constant envelope modulation for GNSS signals[J]. Radioengineering, 2018, 27 (3): 813- 818. doi: 10.13164/re.2018.0813
16	杨大伟, 王红星, 刘传辉, 等. 基于零阶椭圆球面波信号的连续相位调制及性能分析[J]. 系统工程与电子技术, 2021, 43 (8): 2311- 2320.
	YANG D W , WANG H X , LIU C H , et al. Continuous phase modulation based on zero order PSWF signal and its perfor-mance analysis[J]. Systems Engineering and Electronics, 2021, 43 (8): 2311- 2320.
17	杨大伟, 刘传辉, 康家方, 等. 优化参数对CPM-PSWF信号性能的影响[J]. 电讯技术, 2021, 61 (1): 42- 49.
	YANG D W , LIU C H , KANG J F , et al. Influence of optimizing parameters on performance of CPM modulation signal based on PSWF[J]. Telecommunication Engineering, 2021, 61 (1): 42- 49.
18	YANG D W, LIU C H, KANG J F. CPM-PSWFs signal demodulation method based on waveform coherence[C]//Proc. of the IEEE 20th International Conference on Communication Technology, 2020: 1237-1241.
19	International Telecommunication Union. Resolution 603(WRC-2000): studies on compatibility between stations of the radio navigation-satellite service (Earth-to-space) operating in the frequency band 5 000~5 010 MHz and the international standard system (microwave landing system) operating in the band 5 030~5 150 MHz[R]. Geneva: International Telecommunication Union, 2000.
20	LIU M H , ZHAN X Q , LI W , et al. A compatibility analysis between GNSS and radio astronomy/microwave landing system in C band[J]. Journal of Aeronautics Astronautics & Aviation, 2014, 46 (2): 102- 107.
21	Radio Communication Study Groups. Potential interference between the ICAO standard microwave landing system (MLS) operating above 5 030 MHz and radio navigation-satellite service (RNSS) systems in the band 5 000~5 030 MHz[R]. Geneva: Electronic Publication, 2012: 1-31.
22	UIT-R M. 1583-1. Radio regulations-interference calculations between non-geostationary mobile-satellite service or radio navigation- satellite service systems and radio astronomy telescope sites[S]. Geneva: International Telecommunication Union, 2007.
23	UIT-R RA. 1631. Radio regulations-reference radio astronomy antenna pattern to be used for compatibility analyses between non-gso systems and radio astronomy service stations based on the epfd concept[S]. Geneva: International Telecommunication Union, 2003.
24	International Telecommunication Union. Protection of the radio astronomy service in the band 4 990~5 000 MHz from unwanted emissions of the radio navigation-satellite service(space-to-Earth) operating in the frequency band 5010~5030 MHz: resolution 741(WRC-03)[R]. Geneva: International Telecommunication Union, 2003.
25	SUN Y B . Optimal parameter design of continuous phase modulation for future GNSS signals[J]. IEEE Access, 2021, 9, 58487- 58502. doi: 10.1109/ACCESS.2021.3073317
26	CAO Q M, SUN H R, YUAN X Y, et al. Analysis of the spectrum and the demodulation of narrowband continuous phase modulation[C]//Proc. of the International Conference on Wireless Communications and Smart Grid, 2021: 43-48.
27	WU H W, PENG Q H, WANG J Y, et al. A novel demodulation network for binary partial response CPM Signals[C]//Proc. of the IEEE 3rd International Conference on Information Communication and Signal Processing, 2020: 33-37.
28	PROAKIS J G, SALEHI M. 数字通信[M]. 5版. 张力军, 张宗橙, 宋荣方等译. 北京: 电子工业出版社, 2017: 83-90.
	PROAKIS J G, SALEHI M. Digital communications[M]. 5th ed. ZHANG L J, ZHANG Z C, SONG R F, et al trans. Beijing: Publishing House of Electronics Industry, 2017: 83-90.
29	WANG H X , LU F P , LIU C H , et al. Strict parity symmetric prolate spheroidal wave functions signal construction and low complexity detection method[J]. Scientia Sinica Informationis, 2020, 50 (5): 766- 776. doi: 10.1360/SSI-2019-0121
30	LANDAU H J , POLLAK H O . Prolate spheroidal wave functions, Fourier analysis and uncertainty principle I and Ⅱ[J]. Bell System Technical Journal, 1961, 40 (1): 65- 84. doi: 10.1002/j.1538-7305.1961.tb03977.x
31	舒根春, 王红星, 赵志勇, 等. 基于带通采样的椭圆球面波函数数值解法[J]. 电路与系统学报, 2011, 16 (5): 132- 136.
	SHU G C , WANG H X , ZHAO Z Y , et al. Numerical solution of prolate spheroidal wave functions based on bandpass sampling[J]. Journal of Circuits and Systems, 2011, 16 (5): 132- 136.
32	唐祖平, 周鸿伟, 胡修林, 等. Compass导航信号性能评估研究[J]. 中国科学: 物理学力学天文学, 2010, 40 (5): 592- 602.
	TANG Z P , ZHOU H W , HU X L , et al. Research on performance evaluation of COMPASS signal[J]. Scientia Sinica: Physica, Mechanica Astronomica, 2010, 40 (5): 592- 602.
33	XUE R , SUN Y B , ZAHO D F . CPM signal for satellite navigation in the S and C bands[J]. Sensors, 2015, 15 (6): 13184- 13200. doi: 10.3390/s150613184
34	梁姗. 多GNSS环境下卫星导航信号体制研究与设计[D]. 成都: 电子科技大学, 2016.
	LIANG S. Satellite navigation signal system research and design under the environment of multiple GNSS[D]. Chengdu: University of Electronic Science and Technology of China, 2016.
35	XUE R , CAO Q M , WEI Q . A flexible modulation scheme design for C-band GNSS signals[J]. Mathematical Problems in Engineering, 2015, doi: 10.1155.2015.165097
36	陆明泉, 姚铮, 张嘉怡, 等. 北斗卫星导航系统信号设计的进展及发展趋势[J]. 卫星应用, 2015, (12): 27- 31.
	LU M Q , YAO Z , ZHANG J Y , et al. The progress and development trend of BDS signal design[J]. Satellite Application, 2015, (12): 27- 31.

候选信号		OOBE/dBc			PFD/(dBW/m²)
		RAS	上行信号	MLS	RAS	MLS
		载波频率5 019.861/5 022.93 MHz
BPSK(10)		-20.842 5	-16.278 1	-13.517 8	-130.194 6	-148.497 8
BPSK(10)		-21.146 1	-16.842 7	-13.113 9	-130.498 2	-139.234 4
MSK(10)		-29.735 7	-17.640 6	-20.487 6	-139.087 9	-139.753 0
MSK(10)		-33.823 5	-25.582 6	-13.174 3	-143.175 6	-133.445 2
GMSK(10)		-41.222 5	-23.344 2	-25.244 1	-150.574 6	-144.930 7
GMSK(10)		-40.668 7	-28.299 6	-18.683 9	-150.020 8	-135.020 8
QM2RC(10)		-41.215 0	-17.288 8	-20.264 7	-150.567 2	-139.524 8
QM2RC(10)		-44.573 9	-24.363 6	-13.788 1	-153.926 1	-133.850 1
BM2PSWF(20)	C=1	-45.065 8	-27.005 0	-30.370 9	-154.418 0	-148.488 0
	C=1	-45.178 0	-34.352 5	-19.952 6	-154.530 2	-135.740 6
	C=2	-41.060 8	-20.455 1	-22.083 7	-150.413 0	-142.041 7
	C=2	-43.373 4	-24.785 0	-17.166 9	-152.725 6	-135.220 3
QM2PSWF(10)	C=4	-41.266 1	-17.752 5	-20.750 7	-150.618 3	-140.002 1
	C=4	-44.519 9	-24.846 0	-14.179 1	-153.872 1	-134.137 3
	C=6	-35.882 7	-14.685 4	-17.116 7	-145.234 9	-137.213 8
	C=6	-41.882 2	-20.440 6	-11.876 8	-151.234 4	-132.793 7
平均差值		-2.359 4	-5.632 9	5.987 5	-2.358 9	7.626 5

信号类型	接收机带宽为20 MHz对应的Gabor带宽/MHz	Gabor带宽性能排序
BPSK(10)	3.256	8
MSK(10)	4.336	1
GMSK(10)	3.449	6
QM2RC(10)	4.007	3
BM2PSWF(20) C=1	3.428	7
BM2PSWF(20) C=2	3.484	5
QM2PSWF(10) C=4	3.936	4
QM2PSWF(10) C=6	4.297	2

信号类型	平均多径误差峰值/m	抗多径干扰性能排序
BPSK(10)	3.643	8
MSK(10)	2.933	2
GMSK(10)	3.492	6
QM2RC(10)	2.995	3
BM2PSWF(20) C=1	3.533	7
BM2PSWF(20) C=2	3.427	5
QM2PSWF(10) C=4	3.029	4
QM2PSWF(10) C=6	2.865	1
