网络化多传感器-多武器协同防空任务规划

doi:10.12305/j.issn.1001-506X.2022.12.18

摘要/Abstract

摘要：

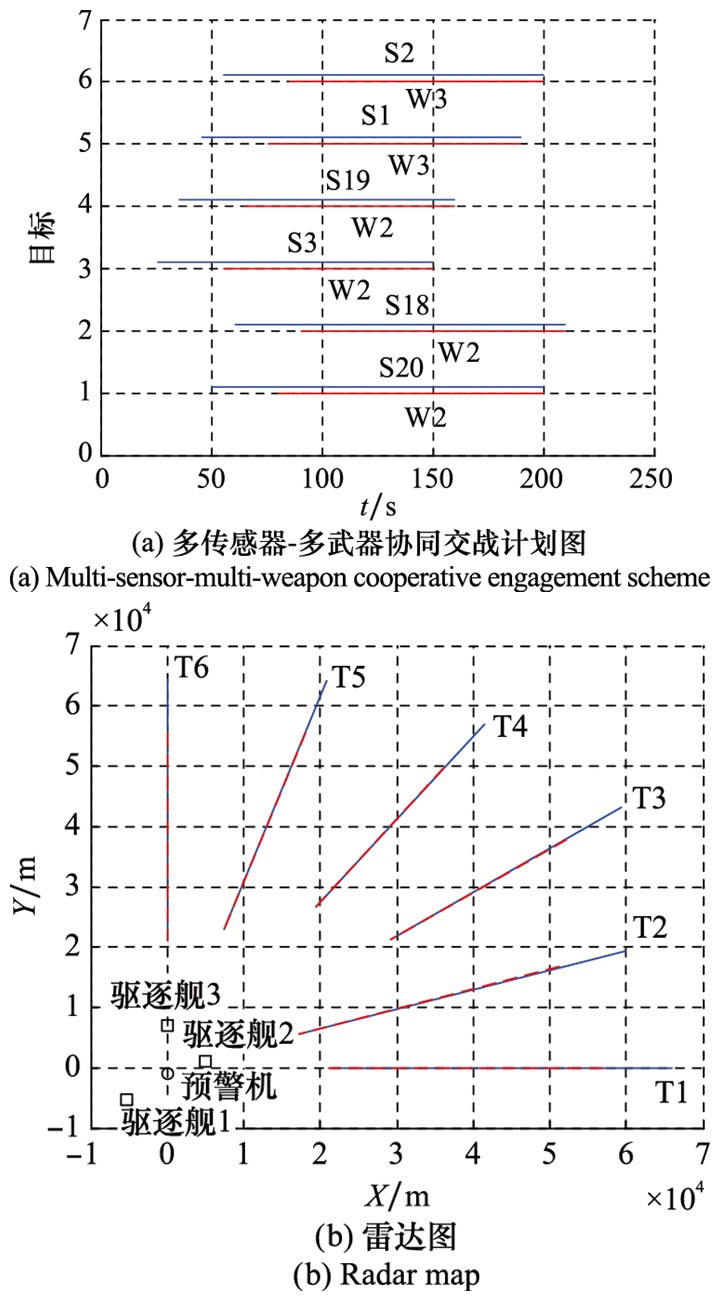

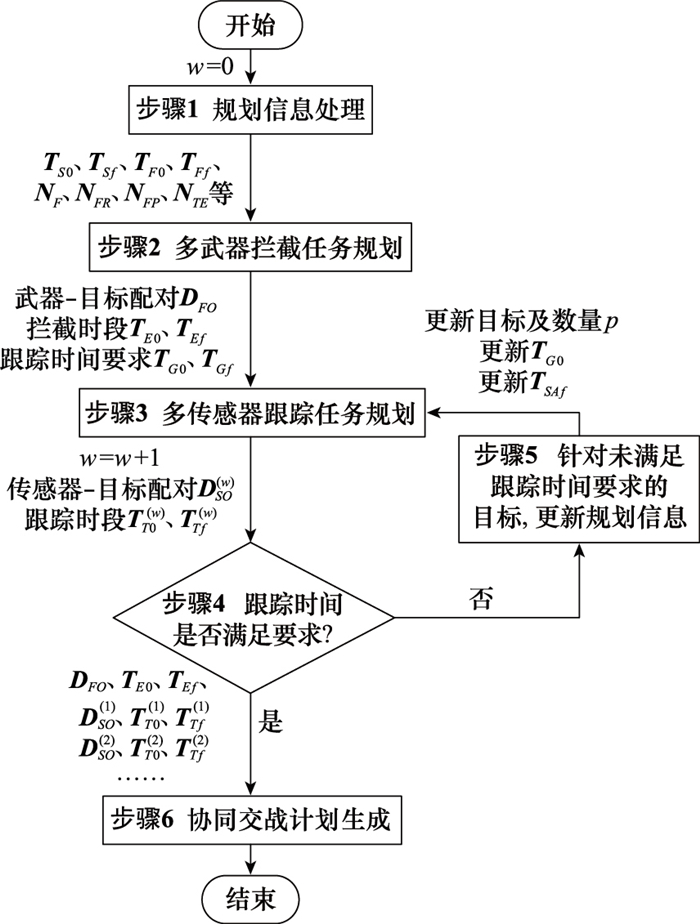

针对网络化防空体系的多传感器-多武器协同任务规划问题, 考虑任务要求、装备性能、运用限制等约束, 构建多武器拦截与多传感器跟踪任务规划模型。前者以拦截时机、次数等为优化目标, 输出武器-目标配对以及对目标的拦截时段、跟踪时间要求; 后者以满足跟踪时间要求为目标, 输出传感器-目标配对和对目标的跟踪时段。设计了基于时段优选拼接和分支定界法的多传感器-多武器协同任务规划算法, 生成多传感器-多武器协同交战计划, 支持多传感器接力跟踪、跨平台打击引导、多武器协同抗击。在假定的舰艇编队与预警机协同防空场景下验证了所设计模型的有效性。

关键词: 网络化防空体系, 多传感器-多武器, 协同任务规划, 时段优选拼接, 目标分配

Abstract:

Aiming at the problem of multi-sensor-multi-weapon cooperative task planning of networked air defense system, considering the constraints of task requirements, equipment performance and application constraints, a multi-weapon interception and multi-sensor tracking task planning model is constructed. The former takes the interception opportunity and times as the optimization objectives, and outputs the weapon target pairing as well as the interception period and tracking time requirements for the target. The latter aims to meet the requirements of tracking time, and outputs sensor target pairing and target tracking period. A multi-sensor-multi-weapon cooperative task planning algorithm based on optimal time splicing and branch and bound method is designed to generate a multi-sensory-multi-weapon cooperative engagement plan, which supports multi-sensor relay tracking, cross platform strike guidance, and multi-weapon cooperative combat. The effectiveness of the proposed model is verified in the hypothetical scenario of cooperative air defense between warship formation and early warning aircraft.

Key words: networked air defense system, multi-sensor-multi-weapon, cooperative task planning, optimal time splicing, target assignment

中图分类号:

E927

董晨, 帅逸仙, 周金鹏, 赖鹏, 程仙垒. 网络化多传感器-多武器协同防空任务规划[J]. 系统工程与电子技术, 2022, 44(12): 3738-3746.

Chen DONG, Yixian SHUAI, Jinpeng ZHOU, Peng LAI, Xianlei CHENG. Cooperative air defense task planning of networked multi-sensor-multi-weapon[J]. Systems Engineering and Electronics, 2022, 44(12): 3738-3746.

图/表 15

图1

表1

表2

表3

图2

表4

图3

表5

表6

表7

表8

图4

表9

表10

图5

参考文献 31

1	KARAKO T , RUMBAUGH W . Distributed defense new operational concepts for integrated air and missile defense[M]. Washington DC: Center for Strategic and International Studies, 2018.
2	DAVIS L , BEERY P , PAULO E . Investigation of integration and potential conflicts for distributed maritime operations and integrated air and missile defense[J]. Naval Engineers Journal, 2020, 132 (1): 83- 95.
3	WEISS G. Seeing 2020: America's new vision for integrated air and missile defense[R]. Washington DC: National Defense University, 2015: 104-112.
4	BRYAN C, DAN P, HASSISON S. Mosaic warfare exploiting artifical intelligence and autonomous systems to implement desion-centric operations[R]. Washington DC: Center for Strategic and Budgetary Assessments, 2020: 1-65.
5	向南, 豆亚杰, 姜江, 等. 马赛克战概念下作战模块应急重构自主决策[J]. 指挥与控制学报, 2020, 3 (6): 223- 228.
	XIANG N , DOU Y J , JIANG J , et al. Autonomous emergency decision-making of combat module under mosaic warfare[J]. Journal of Command and Control, 2020, 3 (6): 223- 228.
6	NEWSTADT G, HERO A. Sensor management and provisioning for multiple target radar tracking systems[C]//Proc. of the IEEE International Conference on Acoustics Speech, and Signal Processing, 2012: 5273-5276.
7	SHARMA R, PARK D. Cooperative sensor resource management for multi target geolocalization using small fixed-wing unmanned aerial vehicles[C]//Proc. of the AIAA Guidance, Navigation, and Control Conference, 2013.
8	NI P , LIU J M , LIU Y L , et al. Research on mission planning for distributed multi-sensors in anti-TBM combat based on multi-agent system[J]. Sensor Letter, 2014, 12 (2): 325- 331. doi: 10.1166/sl.2014.3280
9	FU Y F , LING Q , TIAN Z . Distributed sensor allocation for multitarget tracking in wireless sensor networks[J]. IEEE Trans.on Aerospace and Electronic Systems, 2012, 48 (4): 3538- 3553. doi: 10.1109/TAES.2012.6324736
10	孙文, 王刚, 王晶晶, 等. 高速隐身目标多传感器协同探测跟踪任务分解策略[J]. 探测与控制学报, 2021, 43 (1): 68- 73.
	SUN W , WANG G , WANG J J , et al. The mission decomposition strategy of the high-speed stealth target multi-sensor detection and tracking[J]. Journal of Detection & Control, 2021, 43 (1): 68- 73.
11	闫实, 贺静, 王跃东, 等. 基于强化学习的多机协同传感器管理[J]. 系统工程与电子技术, 2020, 42 (8): 1726- 1733.
	YAN S , HE J , WANG Y D , et al. Multi-airborne cooperative sensor management based on reinforcement learning[J]. Systems Engineering and Electronics, 2020, 42 (8): 1726- 1733.
12	NEEMA K, DELAURENTIS D. Consensus based heuristic algorithm for distributed sensor management[C]//Proc. of the AIAA Infotech, 2015.
13	SEVERSON T A , PALEY D A . Distributed multitarget search and track assignment with consensus-based coordination[J]. IEEE Sensors Journal, 2015, 15 (2): 864- 875.
14	罗江锋, 朱承, 崔婧, 等. 舰艇防空火力规划与调度方法研究[J]. 国防科技大学学报, 2013, 35 (2): 40- 45.
	LUO J F , ZHU C , CUI J , et al. Planning and scheduling for the air defense of warship[J]. Journal of National University of Defense Technology, 2013, 35 (2): 40- 45.
15	罗江锋, 朱承, 刘忠, 等. 连续多目标来袭下的舰艇防空火力在线调度[J]. 系统工程理论与实践, 2014, 34 (11): 2929- 2937.
	LUO J F , ZHU C , LIU Z , et al. On-line schedule of the warship firepower when suffering from the attack of multiple continuous incoming objects[J]. Systems Engineering-Theory & Practice, 2014, 34 (11): 2929- 2937.
16	LLOYD H. Application of a dynamic programming algorithm for weapon target assignment[R]. Edinburgh South Australia: Defence Science and Technology Group, Department of Defence, Australian Government, DST-Group-TR-3221, 2016: 1-22.
17	WANG Y , LI J , HUANG W L , et al. Dynamic weapon target assignment based on intuitionistic fuzzy entropy of discrete particle swarm[J]. China Communications, 2017, 14 (1): 169- 179.
18	VOLLE K , ROGERS J , BRINK K . Decentralized cooperative control methods for the modified weapon-target assignment problem[J]. Journal of Guidance, Control, and Dynamics, 2016, 39 (9): 1934- 1948.
19	KALYANAM K , CASBEER D , PACHTER M . Monotone optimal threshold feedback policy for sequential weapon target assignment[J]. Journal of Aerospace Information Systems, 2017, 14 (1): 68- 72.
20	XU J Z . Weapon-target assignment with fuzzy multi-objective ranking genetic algorithm[J]. Military Operation Research and System Engineering, 2010, 24 (3): 70- 74.
21	VOLLE K, ROGERS J, BRINK K. Scalable cooperative control algorithms for the weapon target assignment problem[C]//Proc. of the AIAA Guidance, Navigation, and Control Confe-rence, 2016.
22	孙海文, 谢晓方, 庞威, 等. 基于改进火力分配模型的综合防空火力智能优化分配[J]. 控制与决策, 2020, 35 (5): 1102- 1112.
	SUN H W , XIE X F , PANG W , et al. Integrated air defense firepower intelligence optimal assignment based on improved firepower assignment model[J]. Control and Decision, 2020, 35 (5): 1102- 1112.
23	刘振, 徐学文, 李静. 考虑协同制导的编队一体化防空问题分析与求解[J]. 指挥与控制学报, 2018, 4 (3): 213- 219.
	LIU Z , XU X W , LI J . Analysis and solving for formation integrated air defense considering cooperative guidance[J]. Journal of Command and Control, 2018, 4 (3): 213- 219.
24	潘浩, 孙建军, 李双霖, 等. 基于网络探测数据的编队防空武器通道组织模型研究[C]//第八届中国指挥控制大会论文集, 2020: 741-747.
	PAN H, SUN J J, LI S L, et al. Research on weapon organizing using network seneor data in coordinated air defense of naval vessel formation[C]//Proc. of the 8th China Conference on Command and Control, 2020: 741-747.
25	ORHAN K . Air defense missile-target allocation models for a naval task group[J]. Computer & Operations Research, 2008, 35 (2): 1759- 1770.
26	MAHESWARARAJAH S, HALGAMUGE S. Sensor scheduling for target tracking using particle swarm optimization[C]//Proc. of the IEEE 63th Vehicular Technology Conference, 2006: 573-577.
27	GUPTA A, VIRMANI A, MAHAJAN P, et al. A particle swarm optimization-based cooperation method for multiple-target search by swarm UAVs in unknown environments[C]//Proc. of the 7th International Conference on Automation, Robotics and Applications, 2021: 95-100.
28	ZHU W M , HU X X , XIA W , et al. A two-phase genetic annealing method for intergrated earth observation satellite sche-duling problems[J]. Soft Computing, 2019, 23 (1): 181- 196.
29	DEB K . A fast elitist multi-objective genetic algorithm: NSGA-Ⅱ[J]. IEEE Trans.on Evolutionary Computation, 2000, 6 (2): 182- 197.
30	ZHAO Y , CHEN Y F , ZHEN Z Y , et al. Multi-weapon multi-target assignment based on hybrid genetic algorithm in uncertain environment[J]. International Journal of Advanced Robotic Systems, 2020, 17 (2): 1- 16.
31	ICOLARI V, TARCHI D, GUIDOTTI A, et al. Genetic inspired scheduling algorithm for cognitive satellite systems[C]//Proc. of the IEEE International Conference on Communications, 2016.

作战平台	平台武器	平台传感器
驱逐舰1	W1	静默
驱逐舰2	W2	静默
驱逐舰3	W3	静默
预警机	-	S1~S20

平台武器	T1	T2	T3	T4	T5	T6
W1	50~120	60~130	90~240	100~250	-	-
W2	80~200	90~210	55~150	65~160	100~230	110~240
W3	-	-	65~130	75~140	75~190	85~200

平台武器	T1	T2	T3	T4	T5	T6
W1	3	3	7	7	0	0
W2	6	6	4	4	6	6
W3	0	0	3	3	5	5

作战平台	跟踪任务	拦截任务
驱逐舰2	-	T1: 80~200 T2: 90~210 T3: 55~150 T4: 65~160
驱逐舰3	-	T5: 75~190 T6: 85~200
预警机	T1: 50~200	-
	T2: 60~210	-
	T3: 25~150	-
	T4: 35~160	-
	T5: 45~190	-
	T6: 55~200	-

作战平台	平台武器	平台传感器
驱逐舰1	W1	S1~S10
驱逐舰2	W2	S11~S20
驱逐舰3	W3	S21~S30
预警机	-	S31~S50
