融合功率分配策略的NGSO-GSO频率干扰计算方法研究

doi:10.12305/j.issn.1001-506X.2022.04.37

系统工程与电子技术 ›› 2022, Vol. 44 ›› Issue (4): 1382-1392.doi: 10.12305/j.issn.1001-506X.2022.04.37

融合功率分配策略的NGSO-GSO频率干扰计算方法研究

董苏惠^1,², 潘冀³, 姚秀娟^1,*, 高翔¹, 闫毅¹, 智佳¹

1. 中国科学院国家空间科学中心, 北京 100190
2. 中国科学院大学, 北京 100049
3. 国家无线电监测中心, 北京 100037

收稿日期:2021-04-22 出版日期:2022-04-01 发布日期:2022-04-01
通讯作者: 姚秀娟
作者简介:董苏惠(1994—), 女, 博士研究生, 主要研究方向为空间频谱感知技术、认知无线电技术|潘冀(1963—), 女, 研究员, 硕士，主要研究方向为卫星频率轨道资源管理与技术、电磁兼容分析、卫星网络资料申报协调规则与技术|姚秀娟(1977—), 女, 研究员, 博士研究生导师, 博士，主要研究方向为空间互联网通信技术、空间频谱感知技术、空间协议识别技术|高翔(1984—), 男, 副研究员, 博士, 主要研究方向为卫星通信、空间频谱感知、数字信号处理以及空间频轨资源兼容性分析技术|闫毅(1982—), 男, 副研究员, 硕士, 主要研究方向为卫星通信、信号与信息处理|智佳(1985—), 男, 高级工程师, 硕士, 主要研究方向为互联网卫星星座频谱兼容性数据处理、航天设备地面综合测试技术
基金资助:
中国科学院空间科学战略性先导科技专项(XDA15060100)

Research on NGSO-GSO frequency interference calculation method fused with power allocation strategy

Suhui DONG^1,², Ji PAN³, Xiujuan YAO^1,*, Xiang GAO¹, Yi YAN¹, Jia ZHI¹

1. National Space Science Center, Chinese Academy of Sciences, Beijing 100190, China
2. University of Chinese Academy of Sciences, Beijing 100049, China
3. State Radio Monitoring Center, Beijing 100037, China

Received:2021-04-22 Online:2022-04-01 Published:2022-04-01
Contact: Xiujuan YAO

摘要/Abstract

摘要：

针对地球静止轨道(geostationary satellite orbit, GSO)卫星系统与非GSO(none GSO, NGSO)星座系统间的干扰分析场景, 结合NGSO、GSO系统的空间链路、波束业务需求量和信道等特征, 提出了融合功率分配策略的NGSO-GSO频率干扰计算方法, 构建了上、下行通信链路的目标函数和约束条件。在以国际电联(International Telecommunication Union, ITU)实际登记的卫星网络资料为例构建的NGSO-GSO干扰分析场景中, 计算并比较了典型功率分配策略对干扰噪声比I/N的影响效果。结果表明: 在下行链路分析场景中, 当GSO卫星系统和NGSO星座系统分别采用融合功率分配策略时, I/N超过限值-12.2 dB的时间百分比对应降低了0.24%~2.85%和0.77%~3.65%;但对于上行链路分析场景, 融合功率分配策略对I/N超限百分比的降低作用不明显。

关键词: 非对地静止轨道星座系统, 地球静止轨道系统, 干扰分析, 功率分配, 干扰规避

Abstract:

Aiming at the interference analysis scenarios between geostationary satellite orbit (GSO) system and none GSO (NGSO) constellation system, an interference calculation method fused with the power allocation strategy is proposed, considering the characteristics of space links, beam service requirements and channels of NGSO and GSO systems. The objective functions and constraint conditions of the uplink and downlink are constructed. In a typical NGSO-GSO interference scenario with the network data of satellites actually registered by the International Telecommunication Union (ITU), the effects of typical power allocation strategies on the interference-to-noise ratio I/N are calculated and compared. The results show that for the downlink scenario, the proposed method with the power allocation strategy reduces the time percentage when interference to noise ratio exceeds the -12.2 dB limit by 0.24%-2.85% for GSO systems, and 0.77%-3.65% for NGSO systems. However, for the uplink scenario, this method does not significantly reduce the time percentage.

Key words: none geostationary satellite orbit (NGSO) constellation system, geostationary satellite orbit (GSO) system, interference analysis, power allocation, interference avoidance

中图分类号:

TN972

董苏惠, 潘冀, 姚秀娟, 高翔, 闫毅, 智佳. 融合功率分配策略的NGSO-GSO频率干扰计算方法研究[J]. 系统工程与电子技术, 2022, 44(4): 1382-1392.

Suhui DONG, Ji PAN, Xiujuan YAO, Xiang GAO, Yi YAN, Jia ZHI. Research on NGSO-GSO frequency interference calculation method fused with power allocation strategy[J]. Systems Engineering and Electronics, 2022, 44(4): 1382-1392.

图/表 17

图1

图2

图3

表1

表2

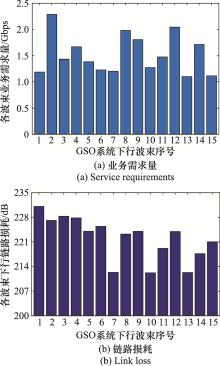

图4

图5

表3

图6

表4

图7

图8

图9

图10

图11

表5

图12

参考文献 31

1	RADTKE J , KEBSCHULL C , STOLL E . Interactions of the space debris environment with mega constellations—using the example of the OneWeb constellation[J]. Acta Astronautica, 2017, 131 (1): 55- 68.
2	PELTON J N , MADRY S , CAMACHO-LARN S . Handbook of satellite applications[M]. 2nd Ed. New York: Springer Press, 2017.
3	HANSON W A . Satellite internet in the mobile age[J]. New Space, 2016, 4 (3): 138- 152. doi: 10.1089/space.2016.0019
4	SHARMA S K , CHATZINOTAS S , OTTERSTEN B . In-line interference mitigation techniques for spectral coexistence of GEO and NGEO satellites[J]. International Journal of Satellite Communications and Networking, 2016, 34 (1): 11- 39. doi: 10.1002/sat.1090
5	张泓湜, 蒋伯峰. 基于空间隔离的低轨卫星系统频谱共享方法[J]. 北京航空航天大学学报, 2018, 44 (9): 1909- 1917.
	ZHANG H S , JIANG B F . Spatial isolation methodology for spectral coexistence in LEO satellite systems[J]. Journal of Beijing University of Aeronautics and Astronautics, 2018, 44 (9): 1909- 1917.
6	靳瑾, 李娅强, 匡麟玲, 等. 全球动态场景下非静止轨道通信星座干扰发生概率和系统可用性[J]. 清华大学学报(自然科学版), 2018, 58 (9): 833- 840.
	JIN J , LI Y Q , KUANG L L , et al. Occurrence probability of co-frequency interference and system availability of non-geostationary satellite system in global dynamic scene[J]. Journal of Tsinghua University (Science and Technology), 2018, 58 (9): 833- 840.
7	ITU-R S. 1325-3. Simulation methodologies for determining statistics of short-term interference between co-frequency, codirectional non-geostationary-satellite orbit fixed-satellite service systems in circular orbits and other non-geostationary fixed-satellite service systems in circular orbits or geostationary-satellite orbit fixed-satellite service networks[S]. Geneva: ITU, 2003.
8	ITU-R S. 1419-0. Interference mitigation techniques to facilitate coordination between non-geostationary-satellite orbit mobile-satellite service feeder links and geostationary-satellite orbit fixed-satellite service networks in the bands 19.3-19.7 GHz and 29.1-29.5 GHz[S]. Geneva: ITU, 1999.
9	ITU-R S. 1257-3. Analytical method to calculate short-term visibility and interference statistics for non-geostationary satellite orbit satellites as seen from a point on the earth's surface[S]. Geneva: ITU, 2002.
10	ITU-R S. 1503-3. Functional description to be used in developing software tools for determining conformity of non-geostationary-satellite orbit fixed-satellite service systems or networks with limits contained in Article 22 of the Radio Regulations[S]. Geneva: ITU, 2018.
11	WANG H W, WANG C, YUAN J, et al. Coexistence downlink interference analysis between LEO system and GEO system in Ka band[C]//Proc. of the IEEE/CIC International Confe-rence on Communications in China, 2018: 465-469.
12	SHARMA S K, CHATZINOTAS S, OTTERSTEN B. Cognitive radio techniques for satellite communication system[C]//Proc. of the IEEE 78th Vehicular Technology Conference, 2013: 1-5.
13	POURMOGHADAS A , SHARMA S K , CHATZINOTAS S , et al. On the spectral coexistence of GSO and NGSO FSS systems: power control mechanisms and a methodology for inter-site distance determination[J]. International Journal of Satellite Communications and Networking, 2017, 35 (5): 443- 459. doi: 10.1002/sat.1199
14	LI R, GU P W L, HUA C Q. Optimal beam power control for co-existing multibeam GEO and LEO satellite system[C]//Proc. of the 11th International Conference on Wireless Communications and Signal Processing, 2019: 1-6.
15	王闯, 胡婧, 李永强, 等. 空间信息网络中面向双卫星的频谱共享方法[J]. 航空学报, 2019, 40 (9): 322863.
	WANG C , HU J , LI Y Q , et al. Spectrum sharing method for dual satellite in space information network[J]. Acta Aeronautica et Astronautica Sinica, 2019, 40 (9): 322863.
16	李广侠, 冯琦, 冯少栋. 多点波束宽带卫星系统波束间功率优化分配算法[J]. 解放军理工大学学报(自然科学版), 2013, 14 (1): 1- 6.
	LI G X , FENG Q , FENG S D . Optimal inter-beam power allocation algorithm for multi-beam broadband satellite systems[J]. Journal of PLA University of Science and Technology (Natural Science Edition), 2013, 14 (1): 1- 6.
17	刘功亮, 顾学迈, 康文静, 等. 单播组播共存环境下的多波束卫星功率优化分配[J]. 吉林大学学报(工学版), 2008, 38 (4): 970- 975.
	LIU G L , GU X M , KANG W J , et al. Power allocation scheme for multiple spotbeam satellite communication systems with coexisting unicast and multicast flows[J]. Journal of Jilin University (Engineering and Technology Edition), 2008, 38 (4): 970- 975.
18	ITU-R P. 618-13. Propagation data and prediction methods required for the design of Earth-space telecommunication systems[S]. Geneva: ITU, 2017.
19	ITU. Coordination of the CHNNEWSAT-G1-118E satellite network in IFIC 2870[EB/OL]. [2021-04-01]. https://www.itu.int/online/sns/geo.sh?sat_type=G&ie=y&ntc_id=117520445&categ=C.
20	ITU. Coordination of the L5 satellite network in IFIC 2862[EB/OL]. [2021-04-01]. https://www.itu.int/online/sns/nongeo.sh?sat_type=N&ie=y&ntc_id=113520120&categ=C.
21	史煜, 张邦宁, 郭道省, 等. 考虑波束间干扰的多波束卫星功率带宽联合分配算法[J]. 计算机工程, 2018, 44 (2): 103- 106. 103-106, 113 doi: 10.3969/j.issn.1000-3428.2018.02.018
	SHI Y , ZHANG B N , GUO D X , et al. Joint power and bandwidth allocation algorithm with inter-beam interference for multi-beam satellite[J]. Computer Engineering, 2018, 44 (2): 103- 106. 103-106, 113 doi: 10.3969/j.issn.1000-3428.2018.02.018
22	CHOI J P , CHAN V W S . Optimum power and beam allocation based on traffic demands and channel conditions over satellite downlinks[J]. IEEE Trans.on Wireless Communications, 2005, 4 (6): 2983- 2993. doi: 10.1109/TWC.2005.858365
23	贾录良, 刘爱军, 郭道省, 等. 多波束卫星通信功率分配算法与仿真分析[J]. 系统仿真学报, 2014, 26 (11): 2687- 2691.
	JIA L L , LIU A J , GUO D X , et al. Optimal power allocation algorithm and simulation analysis for multi-spot-beam satellite[J]. Journal of System Simulation, 2014, 26 (11): 2687- 2691.
24	王蔚龙, 赵尚弘, 李勇军. 基于能量效率的分布式星群下行链路功率分配方法研究[J]. 电子学报, 2020, 48 (6): 1177- 1181. doi: 10.3969/j.issn.0372-2112.2020.06.019
	WANG W L , ZHAO S H , LI Y J . Power allocation in distri-buted satellite cluster downlink based on energy efficiency[J]. Acta Electronica Sinica, 2020, 48 (6): 1177- 1181. doi: 10.3969/j.issn.0372-2112.2020.06.019
25	韩寒, 李颖, 董旭, 等. 卫星通信系统中功率与时隙资源联合分配算法[J]. 通信学报, 2014, 35 (10): 23- 30. doi: 10.3969/j.issn.1000-436x.2014.10.004
	HAN H , LI Y , DONG X , et al. Algorithm on joint optimization of power allocation and slot allocation in satellite communication systems[J]. Journal on Communications, 2014, 35 (10): 23- 30. doi: 10.3969/j.issn.1000-436x.2014.10.004
26	尼俊红, 申振涛, 杨会峰. 蜂窝网络下基于max-min公平性的D2D功率分配[J]. 计算机应用, 2017, 37 (4): 945- 947. 945-947, 953
	NI J H , SHEN Z T , YANG H F . D2D power allocation based on max-min fairness underlying cellular systems[J]. Journal of Computer Applications, 2017, 37 (4): 945- 947. 945-947, 953
27	ZUO J K , YANG L X . Energy efficient resource allocation for D2D multicast communications[J]. Journal of Central South University, 2019, 26 (11): 3034- 3044. doi: 10.1007/s11771-019-4234-0
28	DELPORTILLO I , CAMERON B G , CRAWLEY E F . A technical comparison of three low earth orbit satellite constellation systems to provide global broadband[J]. Acta Astronautica, 2019, (159): 123- 135.
29	ITU-R S. 1528-0. Satellite antenna radiation patterns for non-geostationary orbit satellite antennas operating in the fixed-satellite service below 30 GHz[S]. Geneva: ITU, 2001.
30	ITU-R S. 672-4. Satellite antenna radiation pattern for use as a design objective in the fixed-satellite service employing geostationary satellites[S]. Geneva: ITU, 1997.
31	ITU-R S. 465-6. Reference radiation pattern of earth station antennas in the fixed-satellite service for use in coordination and interference assessment in the frequency range from 2 to 31 GHz[S]. Geneva: ITU, 2010.

链路参数	下行链路	上行链路
GSO卫星经度/°E	118	118, 101.5
卫星数量	1	2
中心频率/GHz	18.45	27.75
每发射机总带宽/MHz	1 500	1 000
每波束最大带宽/MHz	1 500	-
每波束最小带宽/MHz	0	-
每波束平均带宽/MHz	100	500
波束数量	15	2
接收机接收天线峰值增益/dBi	51.8	39
每发射机总功率/dBW	38.86	42.7
发射机发射天线峰值增益/dBi	39	55.3
极化方式	M	M
调制方式	BPSK	BPSK
接收机天线噪声温度/K	110	580

链路参数	下行链路	上行链路
卫星数量	18×40	18×40
中心频率/GHz	18.50	27.55
每发射机总带宽/MHz	1 600	100
每波束最大带宽/MHz	1 600	100
每波束最小带宽/MHz	0	-
每波束平均带宽/MHz	100	-
波束数量	16	-
接收机接收天线峰值增益/dBi	33.6	31.2
每发射机总功率/dBW	30.94	18.70
发射机发射天线峰值增益/dBi	27.6	60.8
极化方式	M	M
调制方式	BPSK	BPSK
接收机天线噪声温度/K	120	600

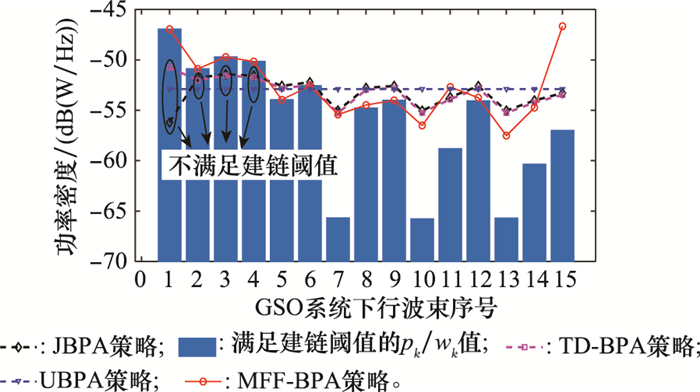

分配策略	$\text{min}{{\sum\nolimits_{k=1}^{K}{\left( \text{max}\{{{T}_{k}}-{{R}_{k}}, 0\} \right)}}^{2}} $	满足[C/N]_th的波束数量
UBPA	1.68×10¹⁹	10
JBPA	1.46×10¹⁹	11
TD-BPA	1.51×10¹⁹	11
MFF-BPA	1.57×10¹⁹	15

分配策略	$\max \sum\nolimits_{\ell =1}^{L}{{{R}_{i, \ell }}/\text{Gbps}} $	满足(C/N)_th的波束数量
UBPA	5.90	8
JBPA	7.10	7
ILF-BPA	6.17	16

链路类型	GSO系统分配策略	NGSO系统分配策略	I/N超限百分比/%
下行	UBPA	UBPA	6.99
下行	UBPA	JBPA	7.30
下行	UBPA	ILF-BPA	5.86
下行	JBPA	UBPA	6.72
下行	JBPA	JBPA	7.26
下行	JBPA	ILF-BPA	5.95
下行	MFF-BPA	UBPA	6.75
下行	MFF-BPA	JBPA	4.73
下行	MFF-BPA	ILF-BPA	3.10
上行	UBPA	-	7.97
上行	JBPA	-	8.96
上行	ILF-BPA	-	8.48
