弹目相对状态测量误差对拦截效果的影响分析

doi:10.12305/j.issn.1001-506X.2021.10.32

摘要/Abstract

摘要：

针对拦截弹中末交班过程中弹目相对状态测量误差引起的脱靶量变化问题, 在视线旋转坐标系下推导了弹目相对运动方程并进行解耦分析, 基于协方差转换法、连续离散混合系统的协方差描述函数法推导得到了弹目相对状态测量误差在末段传播的解析解及脱靶量均值、方差的计算方法。仿真解析计算与蒙特卡罗法计算结果一致, 并通过解析计算得到拦截弹相对状态测量误差与脱靶量的对应关系以及为实现拦截可允许的相对状态测量误差集。同时，仿真结果可为拦截弹中末交班信息测控精度、加速度饱和限制设计等工作提供技术参考。

关键词: 拦截弹, 相对状态测量误差, 拦截效果, 脱靶量

Abstract:

Against the interceptor's miss distance variation caused by relative state measurement error during midcourse-terminal handover process, the relative equations are conducted and analyzed in rotation coordinate of line of sight (LOS). The analytic solution of relative state measure error propagation in the terminal phase is obtained based on covariance analysis describing function technique (CADET) and covariance transform method. Then the mean and covariance of miss distance can be calculated. A contrast simulation by analytic solution and Monte Carlo algorithm is conducted and then correctness and efficiency is verified. The quantitative relationship between relative state measurement error and miss distance and the permissible error reachable set are obtained. The research results are significant in interceptor's measurement accuracy and acceleration capacity design.

Key words: interceptor, relative state measurement error, interception efficiency, miss distance

中图分类号:

张涛涛, 方登建, 李静, 申森. 弹目相对状态测量误差对拦截效果的影响分析[J]. 系统工程与电子技术, 2021, 43(10): 2968-2975.

Taotao ZHANG, Dengjian FANG, Jing LI, Sen SHEN. Effect analysis of interceptor's relative state measurement error on interception efficiency[J]. Systems Engineering and Electronics, 2021, 43(10): 2968-2975.

图/表 10

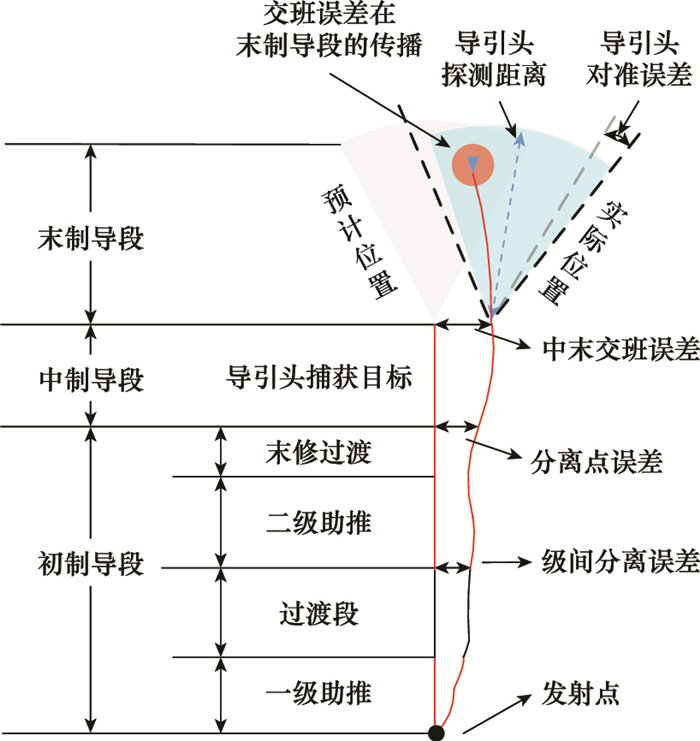

图1

图2

图3

图4

表1

图5

表2

图6

图7

图8

参考文献 30

1	HABLANI H B , PERSON D W . Miss distance error analysis of exoatmospheric interceptors[J]. Journal of Guidance, Control and Dynamics, 2004, 27 (2): 283- 289. doi: 10.2514/1.9168
2	LI K B , ZHANG T T , CHEN L . Ideal proportional navigation for exoatmospheric interception[J]. Chinese Journal of Aeronautics, 2013, 26 (4): 976- 985. doi: 10.1016/j.cja.2013.06.007
3	LI K B , CHEN L , BAI X Z . Differential geometric modeling of guidance problem for interceptors[J]. Science China Technological Sciences, 2011, 54 (9): 2283- 2295. doi: 10.1007/s11431-011-4451-8
4	HABLANI H B, PERSON D W. Determination of guidance parameters of exo-atmospheric interceptors via miss distance error analysis[C]//Proc. of the AIAA Guidance, Navigation and Control Conference and Exhibit, 2001: 1393-1409.
5	ELINA M , JOSEF S . Distribution of the zero-effort miss distance estimation error in interception problems[J]. Applied Mathematics and Computation, 2015, 269, 217- 231. doi: 10.1016/j.amc.2015.07.073
6	CHAI H , WANG L . Effectiveness analysis of exoatmospheric interceptor using reachable set model[J]. Journal of Aerospace Engineering, 2018, 232 (7): 1304- 1314.
7	SALMON D M , Heine W . Reachable sets analysis-an efficient technique for performing missile/sensor tradeoff studies[J]. American Institute of Aeronautics and Astronautics, 1973, 11 (7): 927- 931. doi: 10.2514/3.50543
8	CHAI H , LIANG Y G , CHEN L , et al. Reachable set modeling and engagement analysis of exoatmospheric interceptor[J]. Chinese Journal of Aeronautics, 2014, 27 (6): 1513- 1526. doi: 10.1016/j.cja.2014.10.018
9	GELB A , WARREN R S . Direct statistical analysis of nonlinear systems: CADET[J]. American Institute of Aeronautics and Astronautics, 1973, 11 (2): 689- 694.
10	ZHANG H Q , TANG S J , GUO J . Cooperative near-space interceptor mid-course guidance law with terminal handover constraints[J]. Journal of Aerospace Engineering, 2019, 233 (6): 1960- 1976.
11	ZENG J , DOU L H , XIN B . A joint mid-course and terminal course cooperative guidance law for multi-missile salvo attack[J]. Chinese Journal of Aeronautics, 2018, 31 (6): 1311- 1326. doi: 10.1016/j.cja.2018.03.016
12	WANG L , YAO Y , HE F H , et al. A novel cooperative mid-course guidance scheme for multiple intercepting missiles[J]. Chinese Journal of Aeronautics, 2017, 30 (3): 1140- 1153. doi: 10.1016/j.cja.2017.01.015
13	MOHSEN D M , SEYED H J N . Evaluation of conceptual midcourse guidance laws for long-range exoatmospheric interceptors[J]. Journal of Aerospace Technology and Management, 2017, 9 (1): 101- 115. doi: 10.5028/jatm.v9i1.718
14	唐明南, 郑学合, 王天舒, 等. 多平台信息下机动目标拦截中末制导交班研究[J]. 系统工程与电子技术, 2017, 39 (12): 2758- 2764.
	TANG M N , ZHEN X H , WANG T S , et al. Handover of guidance from midcourse to terminal in the maneuvering target interception based on multi-platform information[J]. Systems Engineering and Electronics, 2017, 39 (12): 2758- 2764.
15	王华吉, 雷虎民, 张大元, 等. 反临近空间高超声速目标拦截弹中末制导交接班窗口[J]. 国防科技大学学报, 2018, 40 (5): 1- 8.
	WANG H J , LEI H M , ZHANG D Y , et al. Midcourse and terminal guidance handover window for interceptor against near space hypersonic target[J]. Journal of National University of Defense Technology, 2018, 40 (5): 1- 8.
16	郭少军, 陆斌. 中末交班及红外误差对捕获跟踪概率的影响分析[J]. 弹箭与制导学报, 2011, 31 (4): 17- 20. doi: 10.3969/j.issn.1673-9728.2011.04.006
	GUO S J , LU B . The analysis of track and acquisition probability influenced by mid- terminal handover error and infrared device error[J]. Journal of Projectiles, Rockets, Missiles and Guidance, 2011, 31 (4): 17- 20. doi: 10.3969/j.issn.1673-9728.2011.04.006
17	LAWRENCE R V . Interceptor line-of-sight rate steering: necessary conditions for a direct hit[J]. Journal of Guidance, Control and Dynamics, 1998, 21 (3): 471- 476. doi: 10.2514/2.4260
18	ZHAI C , HE F H , HONG Y G , et al. Coverage-based interception algorithm of multiple interceptors against the target involving decoys[J]. Journal of Guidance, Control and Dyna-mics, 2016, 39 (7): 1646- 1652.
19	ZHANG T T, WANG H Y, SHEN S, et al. Effect analysis of missile decoy distribution on exo-atmosphere kinetic interceptor[C]// Proc. of the IEEE Chinese Guidance, Navigation and Control, 2018: 119-122.
20	HABLANI H B . Endgame guidance and relative navigation of strategic interceptors with delays[J]. Journal of Guidance, Control and Dynamics, 2006, 29 (1): 82- 94. doi: 10.2514/1.12748
21	KUMAR G S , GHOSH R , GHOSE D , et al. Guidance of seekerless interceptors using innovation covariance based tuning of kalman filters[J]. Journal of Guidance, Control and Dyna-mics, 2017, 40 (3): 603- 614. doi: 10.2514/1.G000618
22	王黎光, 景占荣, 王玲玲. 拦截弹导引头测量误差对拦截效能的影响[J]. 系统工程与电子技术, 2012, 34 (3): 578- 581. doi: 10.3969/j.issn.1001-506X.2012.03.27
	WANG L G , JING Z R , WANG L L . Effect of intercepting missile seeker's measurement error on interception efficiency[J]. Systems Engineering and Electronics, 2012, 34 (3): 578- 581. doi: 10.3969/j.issn.1001-506X.2012.03.27
23	GURFIL P . Zero-miss-distance guidance law based on line-of-sight rate measurement only[J]. Control Engineering Practice, 2003, 11 (7): 819- 832. doi: 10.1016/S0967-0661(02)00208-3
24	MUKHERJRR D , GHOSE D . Zero-miss-distance guidance strategies for nonminimum-phase interceptors[J]. Journal of Guidance, Control and Dynamics, 2013, 36 (2): 629- 633. doi: 10.2514/1.58536
25	OHLMEYER E J . Root-mean-square miss distance of proportional navigation missile against sinusoidal target[J]. Journal of Guidance, Control and Dynamics, 1996, 19 (3): 563- 568. doi: 10.2514/3.21658
26	ALPERT J . Miss distance analysis for command guided missiles[J]. Journal of Guidance, Control and Dynamics, 1988, 11 (6): 481- 487. doi: 10.2514/3.20343
27	LYV P , WEI G H , CUI W . Impact of acceleration on miss distance parameter estimation[J]. Journal of Guidance, Control and Dynamics, 2018, 41 (5): 1174- 1181.
28	MARTIN W . Adjoint method for missile performance analysis on state space models[J]. Journal of Guidance, Control and Dynamics, 2005, 28 (2): 236- 248. doi: 10.2514/1.7342
29	DHAR A , GHOSE D . Capture region for a realistic TPN guidance law[J]. IEEE Trans. on Aerospace and Electric System, 1993, 29 (3): 995- 1003. doi: 10.1109/7.220946
30	ZHANG T T, LI C Y, YANG Z Y. A rapid endgame performance analysis method for exoatmosphere interceptor based on CADET[C]//Proc. of the IEEE Chinese Guidance, Navigation and Control, 2014: 558-563.

状态参数	拦截弹
状态参数	X	Y	Z
位置/m	5.632×10⁶	2.994×10⁶	0
速度/(m/s)	1.488×10³	0.052×10³	2.605×10³

状态参数	来袭导弹
状态参数	X	Y	Z
位置/m	5.667×10⁶	2.994×10⁶	6.622×10⁴
速度/(m/s)	-0.555×10²	2.347×10²	-9.705×10²

飞行时间/s	变化参数
	视线转率均值/(rad/s)				视线转率标准差/(rad/s)			脱靶量均值/m		脱靶量标准差/m
	解析模型	蒙特卡罗	计算偏差		解析模型	蒙特卡罗	计算偏差	解析模型	蒙特卡罗	解析模型	蒙特卡罗
0	4.85×10^-3	4.83×10^-3	0.41%		4.14×10^-5	4.13×10^-5	0.24%	0.046 2	0.044 8	0.005 63	0.005 45
5.88	3.34×10^-3	3.33×10^-3	0.30%		7.81×10^-5	7.78×10^-5	0.38%
14.22	1.21×10^-3	1.22×10^-3	0.82%		1.72×10^-5	1.68×10^-5	2.30%
18.86	1.01×10^-3	0.99×10^-3	2.02%		5.14×10^-5	5.19×10^-5	0.96%
平均偏差	0.88%		0.97%				3.1%		3.3%
计算耗时	解析模型	0.3 s		蒙特卡罗				5 765.5 s
