IWSN物理层防全双工攻击节点的多层Stackelberg博弈模型

doi:10.12305/j.issn.1001-506X.2021.10.28

摘要/Abstract

摘要：

针对工业无线传感器网络通信链路上存在的节点安全问题, 提出一种可抵御节点攻击的多层Stackelberg博弈模型。选择最佳协作干扰节点协同抵御全双工攻击节点, 将合法节点与攻击节点之间的对抗关系以及合法节点间的内部协作关系建模成多层Stackelberg博弈模型, 分析博弈模型的闭式均衡解; 设计分阶最优响应迭代算法求解Stackelberg博弈均衡。仿真结果表明, 所提的最佳协同干扰节点选择方案对攻击节点具有较好的干扰效果且节省能耗; 与其他功率控制模型相比, 所提模型可有效增加协作干扰节点的收益，提高协作的积极性。

关键词: 协作干扰, 物理层安全, 全双工干扰攻击, Stackelberg博弈

Abstract:

Aiming at the security problems of the node in the communication link of industrial wireless sensor networks, a multi-layer Stackelberg game model is proposed to defend against the node attacking. The optimal cooperative jamming node is selected to resist the full-duplex attacking node. The confrontation relationship between legal nodes and attacking node and the internal negotiation relationship between legal nodes are modeled as a multi-layer Stackelberg game model, and the closed form equilibrium solution of the game model is analyzed; A hierarchical optimal response iterative algorithm is designed to solve Stackelberg game equilibrium.From the simulation experiments, the proposed scheme has better jamming effect on attacking nodes and saves energy consumption, compared with other power control models, the proposed multi-level Stackelberg game model can improve the income of cooperative jamming nodes to increase the enthusiasm of collaboration.

Key words: cooperative jamming, physical layer security, full-duplex jamming attack, Stackelberg game

中图分类号:

TN918.19

何崇林, 孙子文. IWSN物理层防全双工攻击节点的多层Stackelberg博弈模型[J]. 系统工程与电子技术, 2021, 43(10): 2931-2939.

Chonglin HE, Ziwen SUN. Multi-level Stackelberg game model against full-duplex attacking node in IWSN physical layer[J]. Systems Engineering and Electronics, 2021, 43(10): 2931-2939.

图/表 12

表1

图1

图2

表2

图3

图4

图5

图6

图7

图8

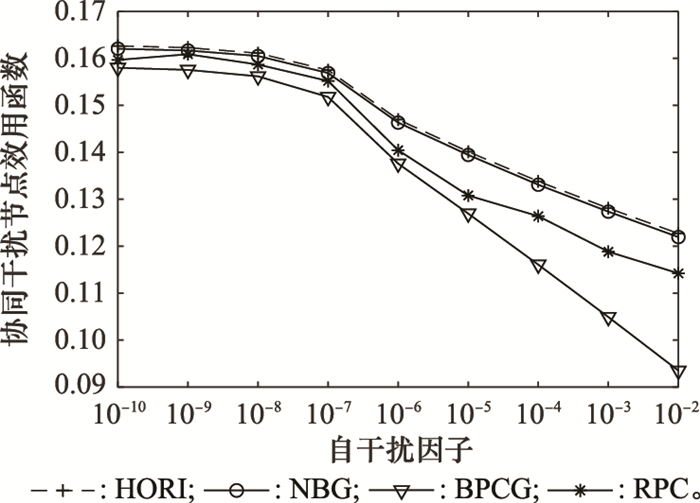

图9

图10

参考文献 33

1	QUEIROZ D V , ALENCAR M S , GOMES R D , et al. Survey and systematic mapping of industrial wireless sensor networks[J]. Journal of Network and Computer Applications, 2017, 97 (11): 96- 125.
2	CHETTRI L , BERA R . A comprehensive survey on internet of things (IoT) toward 5G wireless systems[J]. IEEE Internet of Things Journal, 2020, 7 (1): 16- 32. doi: 10.1109/JIOT.2019.2948888
3	SALAM H A , KHAN B M . IWSN-standards, challenges and future[J]. IEEE Potentials, 2016, 35 (2): 9- 16. doi: 10.1109/MPOT.2015.2422931
4	JING Q , VASILAKOS A Y , WAN J , et al. Security of the internet of things: perspectives and challenges[J]. Wireless Networks, 2014, 20 (8): 2481- 2501. doi: 10.1007/s11276-014-0761-7
5	ZOU Y , WANG G . Intercept behavior analysis of industrial wireless sensor networks in the presence of eavesdropping attack[J]. IEEE Trans.on Industrial Informatic, 2016, 12 (2): 780- 787. doi: 10.1109/TII.2015.2399691
6	TOMIC I , MCCANN J A . A survey of potential security issues in existing wireless sensor network protocols[J]. IEEE Internet of Things Journal, 2017, 4 (6): 1910- 1923. doi: 10.1109/JIOT.2017.2749883
7	WYNER A D . The wire-tap channel[J]. Bell Systems Techno-logy Journal, 1975, 54 (8): 1355- 1387. doi: 10.1002/j.1538-7305.1975.tb02040.x
8	HAMAMREH J M , FURQAN H M , ARSLAN H . Classifications and applications of physical layer security techniques for confidentiality: a comprehensive survey[J]. IEEE Communications Surveys and Tutorials, 2019, 21 (2): 1773- 1828. doi: 10.1109/COMST.2018.2878035
9	WU Y , KHISTI A , XIAO C , et al. A survey of physical layer security techniques for 5G wireless networks and challenges ahead[J]. IEEE Journal on Selected Areas in Communications, 2018, 36 (4): 679- 695. doi: 10.1109/JSAC.2018.2825560
10	朱江, 汪智豪. 时间反演联合接收端人工噪声的安全传输方案[J]. 系统工程与电子技术, 2020, 42 (10): 2374- 2380. doi: 10.3969/j.issn.1001-506X.2020.10.28
	ZHU J , WANG Z H . Secure transmission scheme of time reversal combined with artificial noise at receiver[J]. Systems Engineering and Electronics, 2020, 42 (10): 2374- 2380. doi: 10.3969/j.issn.1001-506X.2020.10.28
11	JAMEEL F , WYNE S , KADDOUM G , et al. A comprehensive survey on cooperative relaying and jamming strategies for physical layer security[J]. IEEE Communications Surveys & Tutorials, 2018, 21 (3): 2734- 2771.
12	HU L , WEN H , WU B , et al. Cooperative jamming for physical layer security enhancement in internet of things[J]. IEEE Internet of Things Journal, 2017, 5 (1): 219- 228.
13	VO V N , NGUYEN T G , SO-IN C , et al. Secrecy outage performance analysis for energy harvesting sensor networks with a jammer using relay selection strategy[J]. IEEE Access, 2018, 6, 23406- 23419. doi: 10.1109/ACCESS.2018.2829485
14	YANG M Q , ZHANG B N , HUANG Y Z , et al. Secure multiuser communications in wireless sensor networks with TAS and cooperative jamming[J]. Sensors, 2014, 16 (11): 1908.
15	PTR P H. A primer in game theory[M]. Harvester Wheatsheaf, 1992.
16	NAMVAR N, SAAD W, BAHADORI N, et al. Jamming in the internet of things: a game-theoretic perspective[C]//Proc. of the Global Communications Conference, 2016.
17	JIANG G X , SHEN S G , HU K L , et al. Evolutionary game-based secrecy rate adaptation in wireless sensor networks[J]. International Journal of Distributed Sensor Networks, 2015, 2015 (25): 975454.
18	杜晓丽, 梁开荣, 李登峰. 基于CIS值的双边链路形成策略优化两型博弈方法[J]. 系统工程与电子技术, 2020, 42 (7): 1550- 1557.
	DU X L , LIANG K R , LI D F . Biform game approach to strategy optimization of bilateral link formation based on CIS value[J]. Systems Engineering and Electronics, 2020, 42 (7): 1550- 1557.
19	ROMERO E , BLESA J , ARAUJO A . An adaptive energy aware strategy based on game theory to add privacy in the physical layer for Cognitive WSNs[J]. Ad Hoc Networks, 2018, 92, 102414.
20	WANG K , YUAN L , MIYAZAKI T , et al. Jamming and eavesdropping defense in green cyber-physical transportation systems using stackelberg game[J]. IEEE Trans.on Industrial Informatics, 2018, 14 (9): 4232- 4242. doi: 10.1109/TII.2018.2841033
21	ZHANG R, SONG L, HAN Z, et al. Improve physical layer security in cooperative wireless network using distributed auction games[C]//Proc. of the Computer Communications Workshops, 2011: 18-23.
22	ZHOU H , HE D X , WANG H . Joint relay and jammer selection for secure cooperative networks with a full-duplex active eavesdropper[J]. IET Communications, 2020, 14 (6): 1043- 1055. doi: 10.1049/iet-com.2019.1042
23	何崇林, 孙子文. 多跳IWSN物理层安全的Stackelberg博弈[J]. 信号处理, 2021, 37 (4): 578- 587.
	HE C L , SUN Z W . Stackelberg game for physical layer security of multi-hop IWSN[J]. Journal of Signal Processing, 2021, 37 (4): 578- 587.
24	LI C X , LIU Y , XU Q , et al. Self-interference cancellation with frequency offset and nonlinear distortion suppression for cooperative jamming communications[J]. IEEE Communications Letters, 2019, 23 (11): 2091- 2094. doi: 10.1109/LCOMM.2019.2936845
25	LEUNGYC S , HELLMAN M . The Gaussian wire-tap channel[J]. IEEE Trans.on Information Theory, 1978, 24 (4): 451- 456. doi: 10.1109/TIT.1978.1055917
26	WU R J , VANGORDER R A . Nonlinear dynamics of discrete time multi-level leader-follower games[J]. Applied Mathema-tics and Computation, 2018, 320, 240- 250. doi: 10.1016/j.amc.2017.09.034
27	FANG H , XU L , ZOU Y L , et al. Three-stage Stackelberg game for defending against full-duplex active eavesdropping attacks in cooperative communication[J]. IEEE Trans.on Vehicular Technology, 2018, 67 (11): 10788- 10799. doi: 10.1109/TVT.2018.2868900
28	金鑫. 无线信道传播模型的研究与实现[D]. 北京: 北京邮电大学, 2010.
	JIN X. Research and implentation of wireless channel propagation modle[D]. Beijing: Beijing University of Posts and Telecommunications, 2010.
29	ZOU Y L , WANG X B , SHEN W M . Optimal relay selection for physical-layer security in cooperative wireless networks[J]. IEEE Journal on Selected Areas in Communications, 2013, 31 (10): 2099- 2111. doi: 10.1109/JSAC.2013.131011
30	BASSILY R , ULUKUS S . Deaf cooperation and relay selection strategies for secure communication in multiple relay networks[J]. IEEE Trans.on Signal Processing, 2013, 61 (6): 1544- 1554. doi: 10.1109/TSP.2012.2235433
31	WANG K , YUAN L , MIYAZAKI T , et al. Strategic antieavesdropping game for physical layer security in wireless cooperative networks[J]. IEEE Trans.on Vehicular Technology, 2017, 66 (10): 9448- 9457. doi: 10.1109/TVT.2017.2703305
32	DUAN B W, CAI Y M, ZHENG J C, et al. Cooperative jammer power allocation-A Nash bargaining solution method[C]//Proc. of the International Conference on Wireless Communications & Signal Processing, 2015.
33	KIM T S , KIM S L . Random power control in wireless ad hoc networks[J]. IEEE Communications Letters, 2005, 9 (12): 1046- 1048. doi: 10.1109/LCOMM.2005.1576583

符号	说明
CH	簇头节点
S_i	第i个传感器节点
J	协作干扰节点
Y_CH	簇头节点接收的信号
Y_A	全双工主动攻击节点接收信号
FA	全双工攻击节点
X_i	发送节点发送信号
X_J	协作干扰节点协作干扰信号
X_A	FA恶意干扰信号
P_i	发送节点发送功率
P_J	协作干扰节点协作干扰功率
P_A	FA恶意干扰功率
H_{i, CH}	S_i到CH的信道增益
H_{J, CH}	J到CH的信道增益
H_{A, CH}	FA到CH的信道增益
H_{i, A}	S_i到FA的信道增益
H_{J, A}	J到FA的信道增益
H_{A, A}	FA自干扰信道增益
N₀	所有节点端的热噪声
C_{i, CH}	S_i到CH的主信道容量
C_{i, A}	S_i到FA的窃听信道容量

软件和参数名称	数值大小
仿真软件	Matlab2018a
分布区域/m	300×300
攻击节点位置/m	(100, 0)
簇头节点位置/m	(100, 100)
传感器节点分布方式	随机
传感器节点数量	5
节点传输范围/m	100
背景噪声方差σ²/dBm	1×10^-10
路径损耗因子M	3
阴影衰落因子A	2
攻击节点自干扰因子ρ	1×10^-5
