基于同步提取变换和脊线检测的空间锥体目标微多普勒特征提取方法

doi:10.12305/j.issn.1001-506X.2024.11.10

Abstract

Abstract:

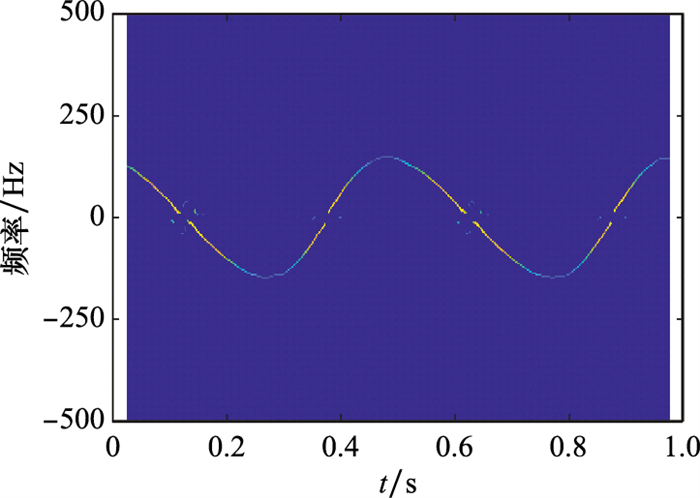

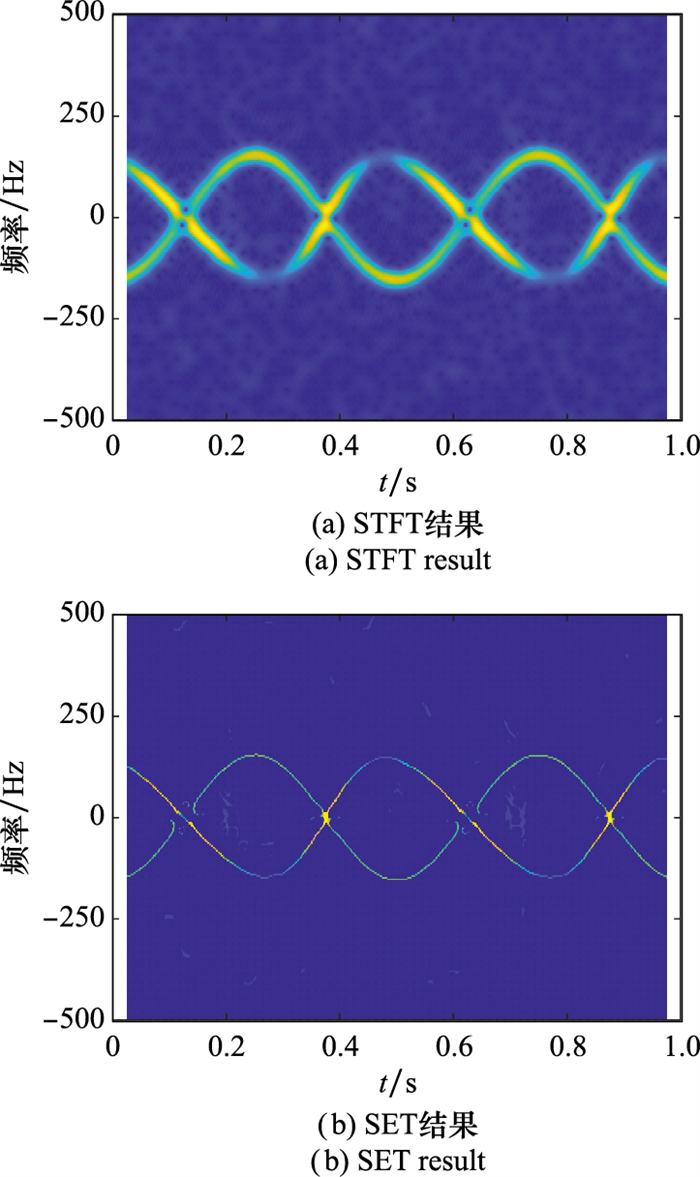

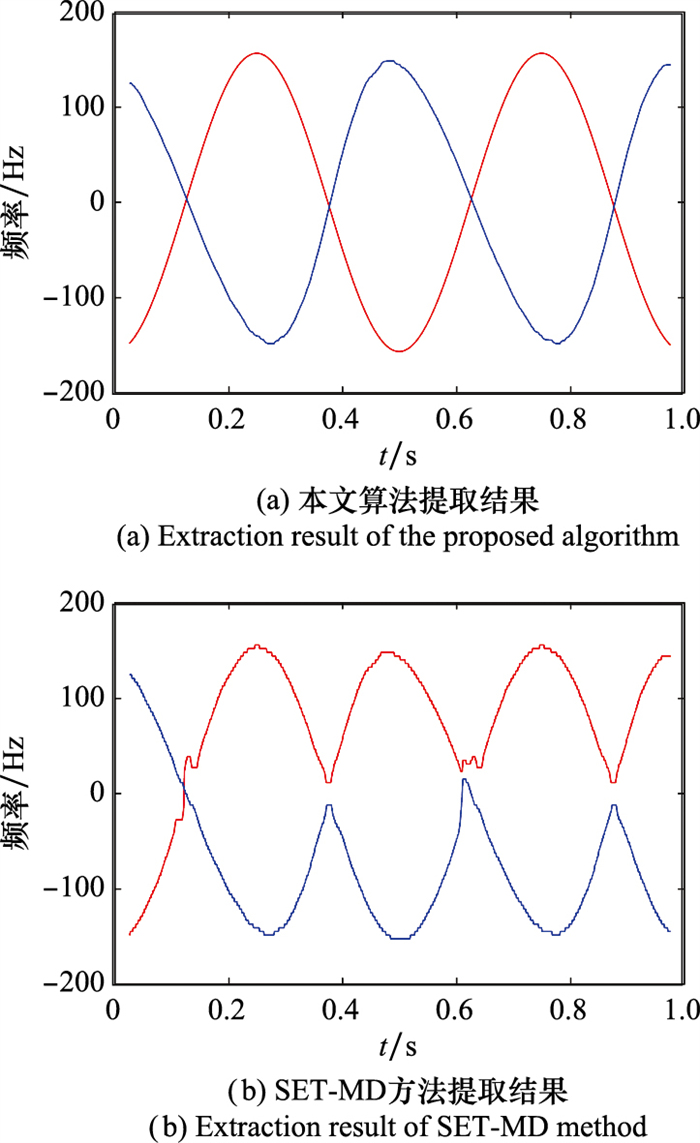

To solve the problem of the tracking mistakes at curve intersections of micro-Doppler (m-D) in m-D extraction of the space coning target, an m-D feature extraction method based on synchro-extracting transform (SET) and ridge detection is proposed. Firstly, the algorithm obtains the energy-concentrated time-frequency image through SET technology. Secondly, the sinusoidal m-D curve generated at the top of the coning target can be extracted by the Hough transform. Then, the extracted top m-D curve is subtracted from the time-frequency image based on the CLEAN idea. Finally, the non-sinusoidal m-D curve at the bottom of the coning target can be extracted by the ridge detection algorithm based on the improved crazy climber algorithm and Kalman filter. Simulation results show that the proposed algorithm can avoid the problem of tracking mistakes at the intersection of m-D curves, and then accurately extract the m-D features.

Key words: synchro-extracting transform (SET), space coning target, micro-Doppler (m-D), Hough transform

CLC Number:

TN957

Lei WANG, Qian SU, Gao WEI, Jianzhou LI. Micro-Doppler feature extraction method for space coningtarget based on synchro-extracting transform and ridge detection[J]. Systems Engineering and Electronics, 2024, 46(11): 3684-3689.

Figures/Tables 7

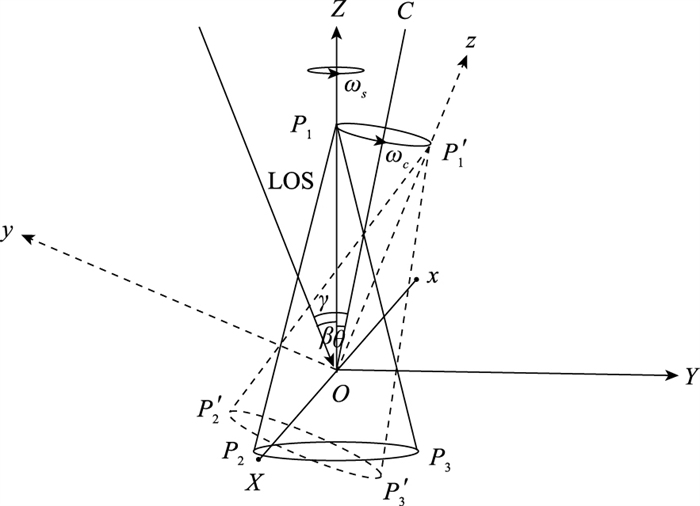

Fig.1

Table 1

Fig.2

Table 2

Fig.3

Fig.4

Table 3

References 17

18	CARMONAR A,HWANGW L,TORRESANIB.Multiridge detection and time-frequency reconstruction[J].IEEE Trans.on Signal Processing,1999,47(2):480-492. doi: 10.1109/78.740131
19	MEIGNENS,OBERLINT,DEPALLEP,et al.Adaptive multimode signal reconstruction from time-frequency representations[J].Philosophical Transactions of the Royal Society A: Mathematical, Physical and Engineering Sciences,2016,374(2065):20150205. doi: 10.1098/rsta.2015.0205
20	BRAJOVICM,POPOVIC-BUGARINV,DJUROVICI,et al.Post-processing of time-frequency representations in instantaneous frequency estimation based on ant colony optimization[J].Signal Processing,2017,138,195-210. doi: 10.1016/j.sigpro.2017.03.022
21	韩勋,杜兰,刘宏伟.基于窄带雷达组网的空间锥体目标特征提取方法[J].电子与信息学报,2014,36(12):2956-2962.
	HANX,DUL,LIUH W.Feature extraction of space cone-shaped target based on narrow-band radar networks[J].Journal of Electronics & Information Technology,2014,36(12):2956-2962.
22	贺思三,周剑雄,付强.利用一维距离像序列估计弹道中段目标进动参数[J].信号处理,2009,25(6):925-929.
	HES S,ZHOUJ X,FUQ.Using HRRP sequence to estimate the precession parameters of midcourse target[J].Signal Processing,2009,25(6):925-929.
23	YUG,YUM J,XUC Y.Synchroextracting transform[J].IEEE Trans.on Industrial Electronics,2017,64(10):8042-8054. doi: 10.1109/TIE.2017.2696503
24	ILLINGWORTHJ,KITTLERJ.A survey of the Hough transform[J].Computer Vision, Graphics, and Image Processing,1988,44(1):87-116. doi: 10.1016/S0734-189X(88)80033-1
25	KUMAWATH C,SAMCZYNSKIP.Spectrum localization and hough transform-based β tuning for LSS targets'accurate micro-Doppler imaging system[J].IEEE Trans.on Instrumentation and Measurement,2022,71,8503711.
26	ZHAO Y N, WEN C, XUE Z, et al. 3d room layout estimation from a cubemap of panorama image via deep Manhattan Hough transform[C]//Proc. of the European Conference on Computer Vision, 2022: 637-654.
27	HARTIKAINEN J, SOLIN A, SARKKA S. Optimal filtering with Kalman filters and smoothers-a manual for Matlab toolbox EKF/UKF[EB/OL]. [2023-09-10]. https://www.doc88.com/p-9078633577311.html.
28	KHODARAHMIM,MAIHAMIV.A review on Kalman filter models[J].Archives of Computational Methods in Engineering,2023,30(1):727-747. doi: 10.1007/s11831-022-09815-7
29	XIAX,HASHEMIE,XIONGL,et al.Autonomous vehicle kinematics and dynamics synthesis for sideslip angle estimation based on consensus kalman filter[J].IEEE Trans.on Control Systems Technology,2022,31(1):179-192.
30	SARKKAS,VEHTARIA,LAMPINENJ.Rao-Blackwellized particle filter for multiple target tracking[J].Information Fusion,2007,8(1):2-15. doi: 10.1016/j.inffus.2005.09.009
1	张群,胡健,罗迎,等.微动目标雷达特征提取、成像与识别研究进展[J].雷达学报,2018,7(5):531-547.
	ZHANGQ,HUJ,LUOY,et al.Research progresses in radar feature extraction, imaging, and recognition of target with micro-motions[J].Journal of Radars,2018,7(5):531-547.
2	CHENV C,LIF,HOS S,et al.Micro-Doppler effect in radar: phenomenon, model, and simulation study[J].IEEE Trans.on Aerospace and Electronic Systems,2006,42(1):2-21.
3	YANGY,HOUC P,LANGY,et al.Omnidirectional motion classification with monostatic radar system using micro-Doppler signatures[J].IEEE Trans.on Geoscience and Remote Sensing,2019,58(5):3574-3587.
4	ZHUJ P,CHENH Q,YEW B.A hybrid CNN-LSTM network for the classification of human activities based on micro-Doppler radar[J].IEEE Access,2020,8,24713-24720. doi: 10.1109/ACCESS.2020.2971064
5	EROLB,GURBUZS Z,AMINM G.Motion classification using kinematically sifted acgan-synthesized radar micro-doppler signatures[J].IEEE Trans.on Aerospace and Electronic Systems,2020,56(4):3197-3213. doi: 10.1109/TAES.2020.2969579
6	HUIZINGA,HEILIGERSM,DEKKERB,et al.Deep learning for classification of mini-UAVs using micro-Doppler spectrograms in cognitive radar[J].IEEE Aerospace and Electronic Systems Magazine,2019,34(11):46-56. doi: 10.1109/MAES.2019.2933972
7	RENK,DUL,LUX F,et al.Instantaneous frequency estimation based on modified Kalman filter for cone-shaped target[J].Remote Sensing,2020,12(17):2766. doi: 10.3390/rs12172766
8	XU X G, FENG C Q, WU H, et al. Micro-Doppler extraction of cone-shaped target based on STFT-RANSAC[C]//Proc. of the IEEE Asia-Pacific Conference on Image Processing, Electronics and Computers, 2022: 832-835.
9	JUNGK,LEEJ I,KIMN,et al.Classification of space objects by using deep learning with micro-Doppler signature images[J].Sensors,2021,21(13):4365. doi: 10.3390/s21134365
10	束长勇,黄沛霖,姬金祖.进动锥体目标平动补偿及微多普勒提取[J].系统工程与电子技术,2016,38(2):259-264. doi: 10.3969/j.issn.1001-506X.2016.02.03
	SHUC Y,HUANGP L,JIJ Z.Translation compensation and micro-Doppler extraction of the precessional cone target[J].Systems Engineering and Electronics,2016,38(2):259-264. doi: 10.3969/j.issn.1001-506X.2016.02.03
11	LI G, ZHANG R, RITCHIE M, et al. Sparsity-based dynamic hand gesture recognition using micro-Doppler signatures[C]//Proc. of the IEEE Radar Conference, 2017: 928-931.
12	ZHANGC J,WANGZ H,ANQ,et al.Clustering-driven DGS-based micro-Doppler feature extraction for automatic dynamic hand gesture recognition[J].Sensors,2022,22(21):8535. doi: 10.3390/s22218535
13	WANGZ H,LUOY,LIK M,et al.Micro-Doppler parameters extraction of precession cone-shaped targets based on rotating antenna[J].Remote Sensing,2022,14(11):2549. doi: 10.3390/rs14112549
14	CAI C J, LIU W X, FU J S, et al. Empirical mode decomposition of micro-Doppler signature[C]//Proc. of the IEEE International Radar Conference, 2005, 2005: 895-899.
15	OHB S,GUOX,LINZ P.A UAV classification system based on FMCW radar micro-Doppler signature analysis[J].Expert Systems with Applications,2019,132,239-255. doi: 10.1016/j.eswa.2019.05.007
16	邵长宇,杜兰,李飞,等.基于多目标跟踪的空间锥体目标微多普勒频率提取方法[J].电子与信息学报,2012,34(12):2972-2977.
	SHAOC Y,DUL,LIF,et al.Micro-Doppler extraction from space cone target based on multiple target tracking[J].Journal of Electronics & Information Technology,2012,34(12):2972-2977.
17	SHAO C Y, DU L, HAN X, et al. Multiple target tracking based separation of micro-Doppler signals from coning target[C]// Proc. of the IEEE Radar Conference, 2014.

参数	取值	参数	取值
雷达载频/GHz	10	进动角/(°)	10
脉冲重复频率/Hz	1 000	进动频率/Hz	2
锥体高度/m	3	视向角/(°)	30
质心高度/m	0.75	自旋频率/Hz	2
底面半径/m	0.75	积累时间/s	1

参数	真实值	估计值
A/Hz	-156.85	-156.57
ω_c/(rad/s)	12.57	12.49
φ/rad	1.57	1.58

信噪比/dB	本文算法		SET-MD方法
信噪比/dB	P₁	P₂	P₁	P₂
0	0.226	10.773	202.750	201.220
5	0.226	6.416	169.800	168.583
10	0.226	6.273	170.109	168.606
15	0.226	6.130	169.388	168.634
20	0.226	4.770	169.560	168.530
