基于背景还原的红外伪装效果评价方法

doi:10.12305/j.issn.1001-506X.2022.08.20

Abstract

Abstract:

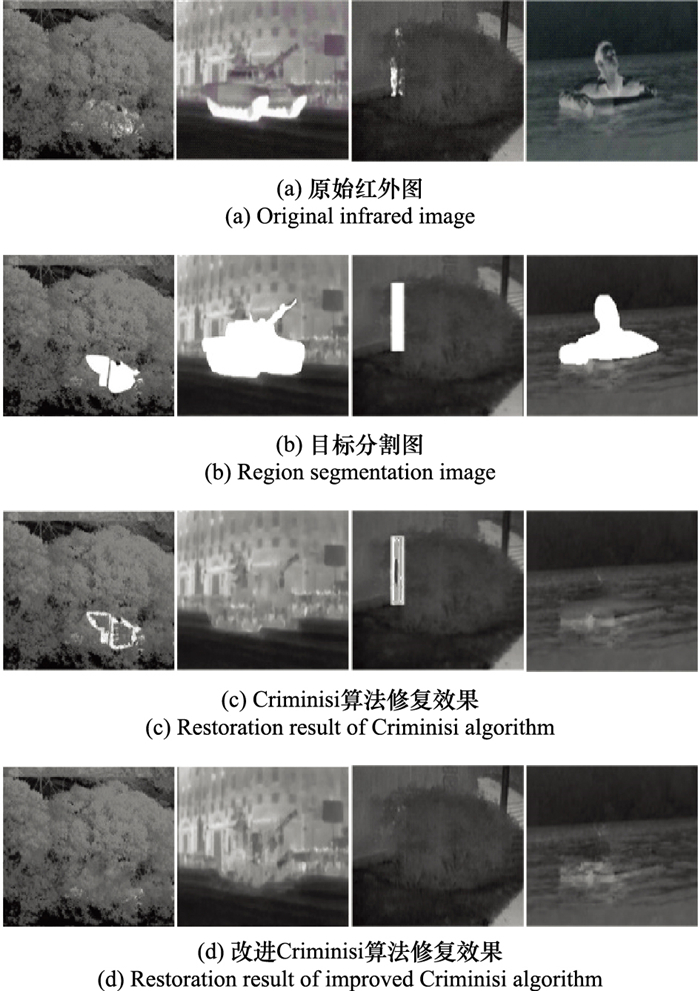

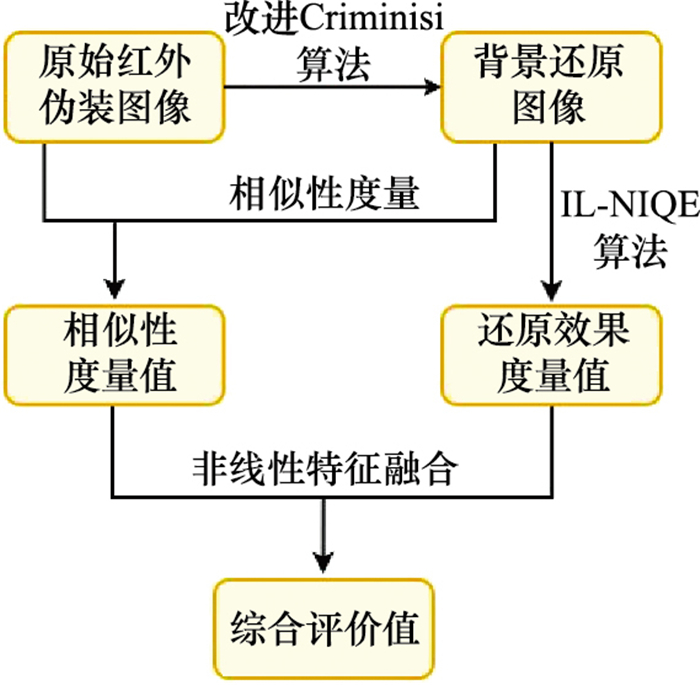

Aiming at the problem of infrared camouflage effect evaluation of targets in complex environment, an infrared camouflage effect evaluation method based on background restoration is proposed. The improved Criminisi algorithm is used to repair the background area under the target shielding, and the background restored image is obtained. Then the similarity between the restored background and the original infrared camouflage target is measured. Considering the deviation between the restored background and the real masking background, use the IL-NIQE model to pre-evaluate the restoration quality and restoration effect of the background restored image, and obtain the restoration effect measurement value. A nonlinear fusion method is adopted to fuse the restoration effect measure and the similarity measure to complete the comprehensive evaluation of the target infrared camouflage effect. Experiments show that the evaluation method accords with human visual characteristics and can objectively evaluate the infrared camouflage effect of targets in complex environment.

Key words: image processing, infrared camouflage evaluation, image restoration technology, nonlinear feature fusion

CLC Number:

E951.4

Xiaofeng ZHAO, Fei WU, Yebin XU, Jiahui NIU, Wei CAI, Zhili ZHANG. Evaluation method of infrared camouflage effect based on background restoration[J]. Systems Engineering and Electronics, 2022, 44(8): 2554-2561.

Figures/Tables 8

Fig.1

Fig.2

Fig.3

Table 1

Fig.4

Fig.5

Fig.6

Table 2

References 30

1	赵晓枫, 徐叶斌, 吴飞, 等. 基于全局感知机制的地面红外目标检测方法[J]. 系统工程与电子技术, 2022, 44 (5): 1461- 1467.
	ZHAO X F , XU Y B , WU F , et al. Ground infrared target detection method based on global perception mechanism[J]. Systems Engineering and Electronics, 2022, 44 (5): 1461- 1467.
2	杨星, 周永凯, 张华. 基于聚类分析的绿色背景迷彩服近红外伪装效果评价方法[J]. 北京服装学院学报, 2019, 39 (2): 38- 42. doi: 10.3969/j.issn.1001-0564.2019.02.006
	YANG X , ZHOU Y K , ZHANG H . Evaluation method of near infrared camouflage effect of camouflage clothing with green background based on cluster analysis[J]. Journal of Beijing Institute of Fashion Technology, 2019, 39 (2): 38- 42. doi: 10.3969/j.issn.1001-0564.2019.02.006
3	苏呈浩. 复杂背景下红外弱小目标检测和跟踪算法研究[D]. 西安: 西安电子科技大学, 2019.
	SU C H. Research on infrared dim small target detection and tracking algorithm in complex background[D]. Xi'an: Xidian University, 2019.
4	FORSYTH I . Second World War British military camouflage: designing deception[M]. London: London Bloomsbury Publishing, 2017.
5	赵晓枫, 吴飞, 徐叶斌, 等. 基于改进梯度相似度的红外隐身伪装评价方法[J]. 电光与控制, 2022, 29 (2): 7- 11.
	ZHAO X F , WU F , XU Y B , et al. Evaluation method of infrared stealth camouflage based on improved gradient similarity[J]. Electronics Optic and Control, 2022, 29 (2): 7- 11.
6	LIU F , QIANG F J , ZHAO M X , et al. Research and implementation of objective evaluation method of image quality[J]. Digital Technology and Application, 2020, 38 (6): 107- 110.
7	王霞, 王玉婉, 徐超, 等. 基于图像处理的舰船红外隐身效果评价方法研究[C]//全国光电技术学术交流会, 2010: 76-79.
	WANG X, WANG Y W, XU C, et al. Research on evaluation method of ship infrared stealth effect based on image processing[C]//Proc. of the National Symposium on Optoelectronic Technology, 2010: 76-79.
8	陆文骏, 李从利, 薛松. 一种用于红外侦察图像的无参考质量评价方法[J]. 图学学报, 2017, 38 (2): 253- 258.
	LU W J , LI C L , XUE S . A non-reference quality evaluation method for infrared reconnaissance images[J]. Journal of Graphics, 2017, 38 (2): 253- 258.
9	应家驹, 何永强, 陈玉丹, 等. 基于特征综合的红外动态伪装效果评估[J]. 半导体光电, 2019, 40 (3): 407- 411.
	YING J J , HE Y Q , CHEN Y D , et al. Evaluation of infrared dynamic camouflage effect based on feature synthesis[J]. Semiconductor Photoelectricity, 2019, 40 (3): 407- 411.
10	XUE F , YONG C X , XU S , et al. Camouflage performance analysis and evaluation framework based on features fusion[J]. Multimedia Tools & Applications, 2016, 75 (7): 4061- 4082.
11	FANG H , LI A H , WANG T , et al. Synthetic evaluation method of hyperspectral camouflage effect based on intuitionistic fuzzy decision[J]. Laser & Optoelectronics Progress, 2019, 13 (3): 452- 456.
12	见超超, 胡江华, 崔光振. 伪装效果评价模型的图像纹理特征提取方法[J]. 指挥控制与仿真, 2017, 39 (3): 102- 105. doi: 10.3969/j.issn.1673-3819.2017.03.022
	JIAN C C , HU J H , CUI G Z . Image texture feature extraction method based on camouflage effect evaluation model[J]. Command Control and Simulation, 2017, 39 (3): 102- 105. doi: 10.3969/j.issn.1673-3819.2017.03.022
13	陈锦成, 韩玉阁. 大表面复杂结构伪装遮障表面温度的简化分析方法[J]. 红外与激光工程, 2018, 47 (3): 124- 130.
	CHEN J J , HAN Y G . Simplified analysis method of surface temperature of camouflage barrier with large surface and complex structure[J]. Infrared and Laser Engineering, 2018, 47 (3): 124- 130.
14	AA EFROS . Image quilting for texture synthesis and transfer[J]. Computer Graphics, 2001, 27 (8): 341- 346.
15	GUILLEMOT C , LE M O . Image inpainting: overview and recent advances[J]. IEEE Signal Processing Magazine, 2014, 31 (1): 127- 144. doi: 10.1109/MSP.2013.2273004
16	LEE J , LEE D K , PARK R H . Robust exemplar-based inpainting algorithm using region segmenta-tion[J]. IEEE Trans.on Consumer Electronics, 2012, 58 (2): 553- 561. doi: 10.1109/TCE.2012.6227460
17	LUO K , LI D X , FENG Y M , et al. Depth-aided inpainting for disocclusion restoration of multi-view images using depth-image-based rendering[J]. Journal of Zhejiang University, 2019, 10 (12): 1738- 1749.
18	LUO K , LI D X , FENG Y M , et al. Depth-aided inpainting for disocclusion restoration of multi-view images using depth-image-based rendering[J]. Journal of Zhejiang University, 2009, 10 (12): 1738- 1749. doi: 10.1631/jzus.A0820806
19	CRIMINISI A , PEREZ P , TOYAMA K . Region filling and object removal by exemplar-based image inpainting[J]. IEEE Trans.on Image Processing, 2004, 13 (9): 1200- 1212. doi: 10.1109/TIP.2004.833105
20	ZHANG L , ZHANG L , BOVIK A C . A feature-enriched completely blind image quality evaluator[J]. IEEE Trans.on Image Processing, 2015, 24 (8): 2579- 2591. doi: 10.1109/TIP.2015.2426416
21	RUDERMAN D L , BIALEK W . Statistics of natural images: scaling in the woods[J]. Physical Review Letters, 1994, 73 (6): 814- 817. doi: 10.1103/PhysRevLett.73.814
22	GERHARDT L . Pattern recognition and machine learning[J]. IEEE Trans.on Automatic Control, 2003, 19 (4): 461- 462.
23	ZHAO X F , WEI Y P , YANG J X , et al. Application of comprehensive similarity in stealth effect evaluation of infrared target[J]. Infrared and Laser Engineering, 2020, 49 (1): 139- 149.
24	THORPE S D , FIZE D , MARLOT C . Speed of processing in the human visual system[J]. American Journal of Ophthalmology, 1996, 381, 520- 522.
25	ZHANG L , ZHANG L , MOU X Q , et al. FSIM: a feature similarity index for image quality assessment[J]. IEEE Trans.on Image Processing, 2011, 20 (8): 2378- 2386. doi: 10.1109/TIP.2011.2109730
26	MORRIS N J W, AVIDAN S, MATUSIK W, et al. Statistics of infrared images[C]//Proc. of the IEEE Conference on Computer Vision and Pattern Recognition, 2007, 42(6): 1-7.
27	韩玉阁, 宣益民, 马忠俊. 成像目标的红外隐身效果评估[J]. 红外技术, 2010, 32 (4): 239- 241. doi: 10.3969/j.issn.1001-8891.2010.04.013
	HAN Y G , XUAN Y M , MA Z J . Evaluation of infrared stealth effect of imaging target[J]. Infrared Technique, 2010, 32 (4): 239- 241. doi: 10.3969/j.issn.1001-8891.2010.04.013
28	SHEIKH H R , SABIR M F , BOVIK A C . A statistical evaluation of recent full reference image quality assessment algorithms[J]. IEEE Trans.on Image Processing, 2006, 15 (11): 3440- 3451. doi: 10.1109/TIP.2006.881959
29	李彦丽, 金东瀚, 焦秉立. 几种典型的感知视频质量评价模型[J]. 计算机工程与应用, 2002, 38 (13): 66- 68. doi: 10.3321/j.issn:1002-8331.2002.13.022
	LI Y L , JIN D H , JIAO B L . Several typical perceptual video quality evaluation models[J]. Computer Engineering and Application, 2002, 38 (13): 66- 68. doi: 10.3321/j.issn:1002-8331.2002.13.022
30	ANTKOWIA K J , BAINA T J . Final report from the video quality experts group on the validation of objective models of video quality assessment[J]. Video Quality Experts Group, 2000,

算法	度量	红外伪装图像
算法	度量	a	b	c	d
Criminisi算法	D	40.763	29.304	51.499	22.864
Criminisi算法	A₁	0.592	0.707	0.485	0.771
改进算法	D	25.811	21.399	26.275	20.796
改进算法	A₁	0.742	0.786	0.737	0.792

评价算法	评价指标
评价算法	SROCC	KROCC	PLCC	RMSE
R_Ying	0.897 4	0.732 2	0.888 9	0.081 0
S_Xue	0.874 6	0.744 1	0.919 8	0.061 8
R_Han	0.944 3	0.801 5	0.938 7	0.043 3
Sours	0.977 4	0.896 7	0.981 3	0.031 2
