基于多用户反馈的星地协作传输系统性能分析

doi:10.12305/j.issn.1001-506X.2021.04.27

Abstract

Abstract:

The performance of a multiuser hybrid satellite-terrestrial cooperative network (HSTCN) based on threshold-base multiuse feedback schem is investigated. By adopting the amplify-and-forward (AF) protocol in relay and multiuser opportunity scheduling scheme, the output signal to noise ratio (SNR) is obtained. Then, by assuming that the satellite links experience shadowing-Rician fading while the terrestrial links undergo Rayleigh fading, the closed-form expressions for feedback outage probability, ergodic capacity and the average number of feedback users with the threshold-based channel state information feedback method is derived. Finally, computer simulation not only verifies the correctness of the analytical results, but also proves that multiuser scheduling scheme with the threshold-based feedback can reduce the amount of system feedback greatly while the performance is almost unchanged.

Key words: hybrid satellite-terrestrial cooperative network, multiuser feedback, feedback outage probability, ergodic capacity, average number of feedback users

CLC Number:

TN927

Zuxia YUAN, Min LIN, Xiaoyu LIU, Zining WANG, Bo HUANG. Performance analysis of a hybrid satellite-terrestrial cooperative networks with multiuser feedback[J]. Systems Engineering and Electronics, 2021, 43(4): 1089-1098.

Figures/Tables 6

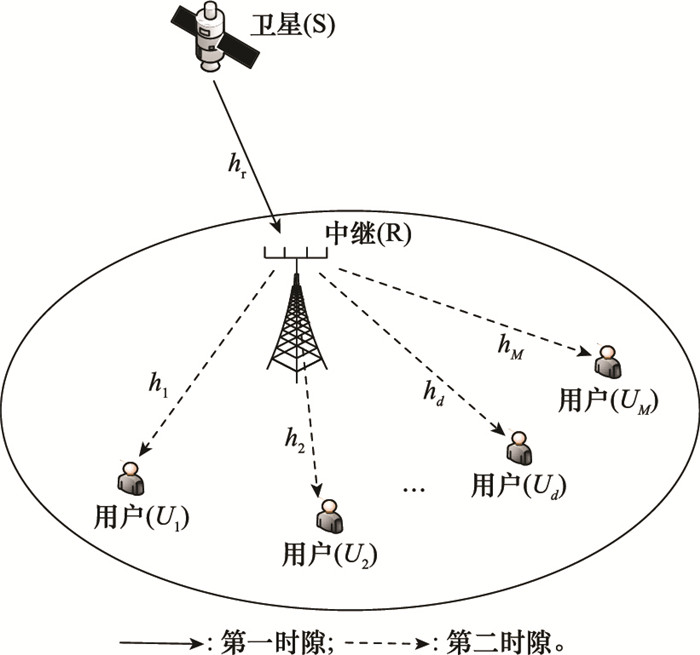

Fig.1

Table 1

Fig.2

Fig.3

Fig.4

Table 2

References 25

1	LIN M , LIN Z , ZHU W P , et al. Joint beamforming for secure communication in cognitive satellite terrestrial networks[J]. IEEE Journal on Selected Areas in Communications, 2018, 36 (5): 1017- 1029. doi: 10.1109/JSAC.2018.2832819
2	李怡, 田斌, 易克初, 等. 基于多波束GEO卫星的宽带移动通信系统[J]. 系统工程与电子技术, 2016, 38 (2): 400- 408.
	LI Y , TIAN B , YI K C , et al. A broadband mobile communication system based on multi-beam GEO satellite[J]. Systems Engineering and Electronics, 2016, 38 (2): 400- 408.
3	RUAN Y , LI Y , WANG C , et al. Power allocation in cognitive satellite-vehicular networks from energy-spectral efficiency tradeoff perspective[J]. IEEE Trans.on Cognitive Communications and Networking, 2019, 5 (2): 318- 329. doi: 10.1109/TCCN.2019.2905199
4	陈鹏, 畅志贤, 陈思宏, 等. 下行卫星认知无线电门限与功率联合优化[J]. 系统工程与电子技术, 2016, 38 (9): 2162- 2170.
	CHEN P , CHANG Z X , CHEN S H , et al. Downlink joint optimization of detection threshold and power allocation for satellite cognitive radio[J]. Systems Engineering and Electronics, 2016, 38 (9): 2162- 2170.
5	GUO K , AN K , ZHANG B N , et al. On the performance of the uplink satellite multi-terrestrial relay networks with hardware impairments and interference[J]. IEEE Systems Journal, 2019, 13 (3): 2297- 2308. doi: 10.1109/JSYST.2019.2901800
6	HOU Z W , YI X Q , ZHANG Y H , et al. Satellite-ground link planning for LEO satellite navigation augmentation networks[J]. IEEE Access, 2019, 7, 98715- 98724. doi: 10.1109/ACCESS.2019.2930626
7	CHAE S H , JEONG C , LEE K . Cooperative communication for cognitive satellite networks[J]. IEEE Trans.on Communications, 2018, 66 (11): 5140- 5154. doi: 10.1109/TCOMM.2018.2850813
8	HUANG Q Q , LIN M , WANG J B , et al. Energy efficient beamforming schemes for satellite-aerial-terrestrial networks[J]. IEEE Trans.on Communications, 2019,
9	LIN Z , LIN M , OUYANG J , et al. Robust secure beamforming for multi-beam satellite communication systems[J]. IEEE Trans.on Vehicular Technology, 2019, 68 (6): 6202- 6206. doi: 10.1109/TVT.2019.2913793
10	孔槐聪, 林敏, 刘笑宇, 等. 基于中继选择的星地协作传输系统性能分析[J]. 系统工程与电子技术, 2020, 42 (1): 198- 205.
	KONG H C , LIN M , LIU X Y , et al. Performance analysis of hybrid satellite-terrestrial cooperative transmission system based on relay selection[J]. Systems Engineering and Electronics, 2020, 42 (1): 198- 205.
11	BANKEY V , UPADHYAY P K . Ergodic capacity of multiuser hybrid satellite-terrestrial fixed-gain AF relay networks with CCI and outdated CSI[J]. IEEE Trans.on Vehicular Technology, 2018, 67 (5): 4666- 4671. doi: 10.1109/TVT.2018.2793420
12	林敏, 姜杨威, 欧阳键, 等. 存在干扰的星地混合协作传输性能分析[J]. 电子学报, 2018, 46 (1): 8- 14. doi: 10.3969/j.issn.0372-2112.2018.01.002
	LIN M , JIANG Y W , OUYANG J , et al. The performance of a hybrid satellite-terrestrial cooperative networks with interfe-rences[J]. Acta Electronica Sinica, 2018, 46 (1): 8- 14. doi: 10.3969/j.issn.0372-2112.2018.01.002
13	LIU X Y , LIN M , WANG J Y , et al. Average symbol error rate for integrated satellite-terrestrial cooperative transmission with interference[J]. Acta Physica Sinica, 2019, 68 (12): 292- 302.
14	AN K , LIN M , LIANG T , et al. Performance analysis of multi-antenna hybrid satellite-terrestrial relay networks in the presence of interference[J]. IEEE Trans.on Communications, 2015, 63 (11): 4390- 4404. doi: 10.1109/TCOMM.2015.2474865
15	HUANG Q Q , LIN M , AN K , et al. Secrecy performance of hybrid satellite-terrestrial relay networks in the presence of multiple eavesdroppers[J]. IET Communications, 2018, 12 (1): 26- 34. doi: 10.1049/iet-com.2017.0948
16	BANKEY V , UPADHYAY P K , DA COSTA D B , et al. Performance analysis of multi-antenna multiuser hybrid satellite-terrestrial relay systems for mobile services delivery[J]. IEEE Access, 2018, 6, 24729- 24745. doi: 10.1109/ACCESS.2018.2830801
17	AN K , LIN M , LIANG T , et al. On the performance of multiuser hybrid satellite-terrestrial relay networks with opportunistic scheduling[J]. IEEE Communications Letters, 2015, 19 (10): 1722- 1725. doi: 10.1109/LCOMM.2015.2466535
18	BANKEY V , UPADHYAY P K . Physical layer security of multiuser multi-relay hybrid satellite-terrestrial relay networks[J]. IEEE Trans.on Vehicular Technology, 2019, 68 (3): 2488- 2501. doi: 10.1109/TVT.2019.2893366
19	LU Y , YANG N , ELKASHLAN M , et al. Partial channel quality information feedback in multiuser relay networks over Nakagami fading[J]. IEEE Trans.on Wireless Communications, 2015, 14 (9): 4783- 4796. doi: 10.1109/TWC.2015.2426175
20	KIM J , KIM D . Comparison of two SNR-based feedback schemes in multiuser dual-hop amplify-and-forward relaying networks[J]. IEEE Communications Letters, 2008, 12 (8): 557- 559. doi: 10.1109/LCOMM.2008.080721
21	HUANG Q Q , LIN M , ZHU W P , et al. Performance analysis of integrated satellite-terrestrial multi-antenna relay networks with multiuser scheduling[J]. IEEE Trans.on Aerospace and Electronic Systems, 2019, 56 (4): 2718- 2731.
22	GRADSHTEYN I S , RYZHIK I M . Table of integrals, series, and products[M]. American: Academic Press, 2007.
23	ABRAMOWITZ M , STEGUN I A . Handbook of mathematical functions with formulas, graphs, and mathematical tables[M]. American: Academic Press, 1967.
24	ALMRADI A , HAMDI K A . The performance of wireless powered MIMO relaying with energy beamforming[J]. IEEE Trans.on Communications, 2016, 64 (11): 4550- 4562. doi: 10.1109/TCOMM.2016.2606619
25	GUO K F , ZHANG B N , HUANG Y Z , et al. Performance analysis of two-way satellite terrestrial relay networks with hardware impairments[J]. IEEE Wireless Communications Letters, 2017, 6 (4): 430- 433. doi: 10.1109/LWC.2017.2700797

阴影类型	m	b	Ω
FHS	2	0.063	0.005
AS	5	0.251	0.279
ILS	10	0.158	1.29

参数	取值
P_{γ_th}	0.93	0.85	0.76	0.65	0.55	0.41
γ_th/dB	4.94	5.87	6.51	7.8	8.02	8.14
C_γ^AF	1.33	1.16	1.03	0.83	0.71	0.64

Performance analysis of a hybrid satellite-terrestrial cooperative networks with multiuser feedback
