基于改进型YOLOv3的SAR图像舰船目标检测

doi:10.12305/j.issn.1001-506X.2021.04.10

Abstract

Abstract:

Traditional synthetic aperture radar(SAR) image target detection methods rely on manual design features and are vulnerable to complex background interference, and their generalization ability is poor. The deep learning method can automatically extract features and has good anti-jamming characteristics, which is of great significance for future radar intelligent perception. Different from other conventional neural networks that can only detect fixed areas, an improved YOLOv3 SAR image ship detection method is proposed in this paper. The new YOLOv3 model is designed based on deforming convolution of adaptive sampling of the ship size and the shape, the ResNet50 variant feature extractor and the ShuffleNetv2 lightweight idea. Through SSDD dataset verification, compared with the original YOLOv3 model, the average accuracy increases from 93.21% to 96.94%, and the detection probability increases from 95.51% to 97.75%. In terms of the model size, the lightweight design model is only one-eighth of the original YOLOv3 model, which can be embedded for use.

Key words: synthetic aperture radar (SAR), ship detection, YOLOv3, deformable convolution, convolutional neural network

CLC Number:

TP751

Dong CHEN, Yanwei JU. Ship detection in SAR image based on improved YOLOv3[J]. Systems Engineering and Electronics, 2021, 43(4): 937-943.

Figures/Tables 10

Fig.1

Fig.2

Fig.3

Fig.4

Fig.5

Fig.6

Table 1

Table 2

Fig.7

Fig.8

References 29

1	LI W, ZOU B, XIN Y, et al. An improved CFAR scheme for man-made target detection in high resolution SAR images[C]//Proc. of the IEEE International Geoscience and Remote Sensing Symposium, 2018: 2829-2832.
2	ZHU J , QIU X , PAN Z , et al. Projection shape template-based ship target recognition in TerraSAR-X images[J]. IEEE Geoscience and Remote Sensing Letters, 2017, 14 (2): 222- 226. doi: 10.1109/LGRS.2016.2635699
3	杨国铮, 禹晶, 肖创柏, 等. 基于形态字典学习的复杂背景SAR图像舰船尾迹检测[J]. 自动化学报, 2017, 43 (10): 1713- 1725.
	YANG G Z , YU J , XIAO C B , et al. Ship wake detection in sar images with complex background using morphological dictionary learning[J]. Acta Automatica Sinica, 2017, 43 (10): 1713- 1725.
4	GIRSHICK R, DONAHUE J, DARRELL T, et al. Rich feature hierarchies for accurate object detection and semantic segmentation[C]//Proc. of the Computer Vision and Pattern Recognition, 2014: 580-587.
5	GIRSHICK R. Fast R-CNN[C]//Proc. of the International Conference on Computer Vision, 2015: 1440-1448.
6	REN S , HE K , GIRSHICK R , et al. Faster R-CNN: towards real-time object detection with region proposal networks[J]. IEEE Trans.on Pattern Analysis & Machine Intelligence, 2017, 39 (6): 1137- 1149.
7	LIU W, ANGUELOV D, ERHAN D, et al. SSD: single shot MultiBox detector[C]//Proc. of the European Conference on Computer Vision, 2016: 21-37.
8	LI Z , ZHOU F . FSSD: feature fusion single shot multibox detector[J]. Computer Vision and Pattern Recognition, 2018, 36 (7): 356- 366.
9	FU C, LIU W, RANGA A, et al. DSSD: deconvolutional single shot detector[EB/OL]. [2020-07-16]. http://arxiv.org/abs/1701.06659.
10	REDMON J, DIVVALA S K, GIRSHICK R, et al. You only look once: unified, real-time object detection[C]//Proc. of the Computer Vision and Pattern Recognition, 2016: 779-788.
11	REDMON J, FARHADI A. YOLO9000: better, faster, stronger[C]//Proc. of the Computer Vision and Pattern Recognition, 2017: 6517-6525.
12	REDMON J, FARHADI A. YOLOv3: an incremental improvement[EB/OL]. [2020-07-16]. http://arxiv.org/abs/1804.02767.
13	HUANG L C, YANG Y, DENG Y F, et al. DenseBox: unifying landmark localization with end to end object detection[EB/OL]. [2020-07-16]. http://export.arxiv.org/abs/1509.04874.
14	TIAN Z, SHEN C H, CHEN H, et al. FCOS: fully convolutional one-stage object detection[EB/OL]. [2020-07-16]. http://arxiv.org/abs/1904.01355, .
15	LAW H, DENG J. CornerNet: detecting objects as paired keypoints[C]//Proc. of the European Conference on Computer Vision, 2018: 765-781.
16	李健伟, 曲长文, 彭书娟, 等. 基于卷积神经网络的SAR图像舰船目标检测[J]. 系统工程与电子技术, 2018, 40 (9): 1953- 1959.
	LI J W , QU C W , PENG S J , et al. Ship detection in SAR images based on convolutional neural network[J]. Systems Engineering and Electronics, 2018, 40 (9): 1953- 1959.
17	苏娟, 杨龙, 黄华, 等. 用于SAR图像小目标舰船检测的改进SSD算法[J]. 系统工程与电子技术, 2020, 42 (5): 1026- 1034.
	SU J , YANG L , HUANG H , et al. Improved SSD algorithm for small-scale SAR ship detection[J]. Systems Engineering and Electronics, 2020, 42 (5): 1026- 1034.
18	张晓玲, 张天文, 师君, 等. 基于深度分离卷积神经网络的高速高精度SAR舰船检测[J]. 雷达学报, 2019, 8 (6): 841- 851.
	ZHANG X L , ZHANG T W , SHI J , et al. High-speed and high-accurate SAR ship detection based on a depthwise separable convolution neural network[J]. Journal of Radars, 2019, 8 (6): 841- 851.
19	LIN T, DOLLAR P, GIRSHICK R, et al. Feature pyramid networks for object detection[C]//Proc. of the Computer Vision and Pattern Recognition, 2017: 936-944.
20	HE K, ZHANG X, REN S, et al. Deep residual learning for image recognition[C]//Proc. of the Computer Vision and Pattern Recognition, 2016: 770-778.
21	HE T, ZHANG Z, ZHANG H, et al. Bag of tricks for image classification with convolutional neural networks[C]//Proc. of the Computer Vision and Pattern Recognition, 2019: 558-567.
22	DAI J, QI H, XIONG Y, et al. Deformable convolutional networks[C]//Proc. of the International Conference on Computer Vision, 2017: 764-773.
23	ZHU X, HU H, LIN S, et al. Deformable ConvNets V2: more deformable, better results[C]//Proc. of the Computer Vision and Pattern Recognition, 2019: 9308-9316.
24	MA N, ZHANG X, ZHENG H, et al. ShuffleNet V2: practical guidelines for efficient CNN architecture design[C]//Proc. of the European Conference on Computer Vision, 2018: 122-138.
25	LI J, QU C, SHAO J. Ship detection in SAR images based on an improved faster R-CNN[C]//Proc. of the IEEE SAR in Big Data Era: Models, Methods and Applications, 2017: 1-6.
26	WANG Y , WANG C , ZHANG H , et al. A SAR dataset of ship detection for deep learning under complex backgrounds[J]. Remote Sensing, 2019, 11 (7): 765- 769. doi: 10.3390/rs11070765
27	MCMAHAN B, STREETER M J. Delay-tolerant algorithms for asynchronous distributed online learning[C]//Proc. of the Neural Information Processing Systems, 2014: 2915-2923.
28	DUCHI J , HAZAN E , SINGER Y . Adaptive subgradient methods for online learning and stochastic optimization[J]. Journal of Machine Learning Research, 2011, 12 (7): 257- 269.
29	TAN C, SUN F, KONG T, et al. A survey on deep transfer learning[C]//Proc. of the International Conference on Artificial Neural Networks, 2018: 270-279.

模型	GT	TP	FN	FP
Darknet53	267	255	12	32
Shufflenetv2	267	257	10	29
ResNet50	267	259	8	38
ResNet50-d	267	258	9	31
ResNet50-d-DCN	267	261	6	29

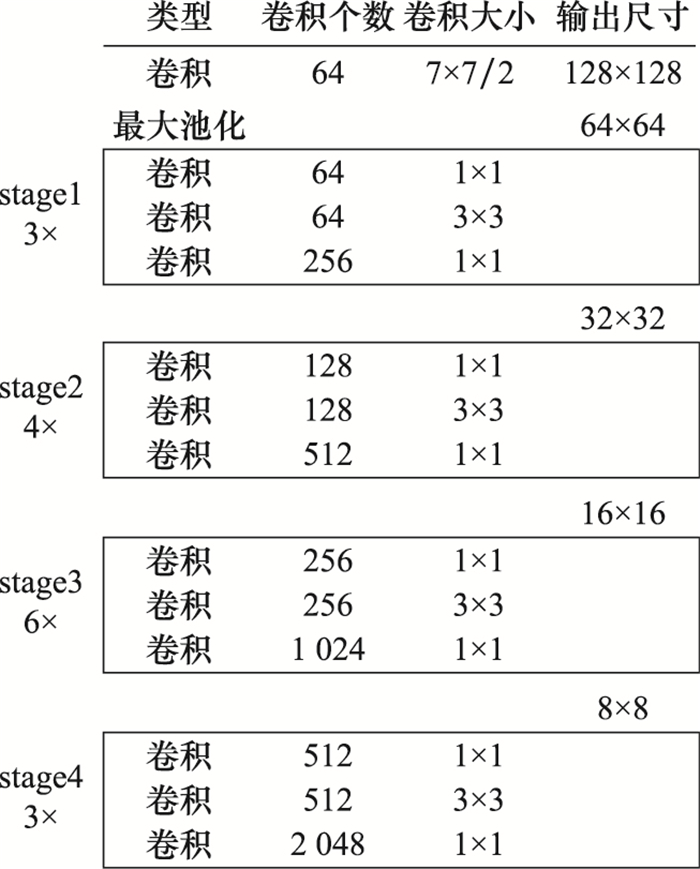

模型	P_d	P_MA	P_LA	Precision	mAP	大小/MB
Darknet53	95.51	4.49	11.15	88.85	93.21	234
Shufflenetv2	96.25	3.75	10.14	89.86	92.84	27
ResNet50	97.00	3.00	12.79	87.21	95.02	172
ResNet50-d	96.63	3.37	10.73	89.27	95.23	172
ResNet50-d-DCN	97.75	2.25	10.00	90.00	96.64	173
