脉压宽主瓣子阵MIMO雷达收发联合设计

doi:10.12305/j.issn.1001-506X.2026.08.09

系统工程与电子技术 ›› 2026, Vol. 48 ›› Issue (8): 2602-2614.doi: 10.12305/j.issn.1001-506X.2026.08.09

• 传感器与信号处理 • 上一篇

脉压宽主瓣子阵MIMO雷达收发联合设计

孙慧霞¹^,²(), 周生华¹(), 杜小荷¹, 南静怡¹, 郭小路³, 林明聪¹

1. 西安电子科技大学雷达信号处理全国重点实验室，陕西西安 710071
2. 运城学院山西省智能光电传感应用技术创新中心，山西运城 044000
3. 西安工业大学电子信息工程学院，陕西西安 710021

收稿日期:2025-07-31 修回日期:2025-12-27 接受日期:2026-01-21 出版日期:2026-04-21 发布日期:2026-04-21
通讯作者: 周生华 E-mail:huixiasun2004@163.com;shzhou@mail.xidian.edu.cn
作者简介:孙慧霞（1983—），女，副教授，博士，主要研究方向为多输入多输出雷达波形设计
杜小荷（1999—），女，硕士研究生，主要研究方向为多输入多输出雷达波形设计
南静怡（2001—），女，硕士研究生，主要研究方向为多输入多输出雷达波形设计
郭小路（1983—），男，讲师，博士，主要研究方向为信号检测与干扰抑制
林明聪（1998—），男，博士研究生，主要研究方向为雷达干扰态势感知与主动抗干扰
基金资助:
国家自然科学基金（62371384）；运城市基础研究计划项目（YCKJ-2025051）资助课题

Joint transceiver design for subarray MIMO radar with pulse compression wide mainlobe

Huixia SUN¹^,²(), Shenghua ZHOU¹(), Xiaohe DU¹, Jingyi NAN¹, Xiaolu GUO³, Mingcong LIN¹

1. National Key Laboratory of Radar Signal Processing，Xidian University，Xi’an 710071，China
2. Shanxi Province Intelligent Optoelectronic Sensing Application Technology Innovation Center，Yuncheng University，Yuncheng 044000，China
3. School of Electronic Information Engineering，Xi’an Technological University，Xi’an 710021，China

Received:2025-07-31 Revised:2025-12-27 Accepted:2026-01-21 Online:2026-04-21 Published:2026-04-21
Contact: Shenghua ZHOU E-mail:huixiasun2004@163.com;shzhou@mail.xidian.edu.cn

摘要/Abstract

摘要：

全数字阵多输入多输出（multiple input multiple output, MIMO）雷达当阵元数较多时成本显著增加，采用子阵MIMO雷达可降低系统成本并同时发挥MIMO雷达自由度多的优势，但相应的波形优化理论研究较少。针对子阵MIMO雷达波形优化设计，提出脉压宽主瓣结合收发联合设计算法，以系统整体能力为约束进行波形优化设计，分别研究相控阵场景、发射方向图单峰和双峰3种情况下的波形优化准则。仿真实验表明，脉压宽主瓣技术结合收发联合设计的子阵MIMO雷达一体化波形设计算法提升了雷达波形自由度，使全局峰值旁瓣电平下降4.88~6.54 dB，并使雷达发射波束具有多峰匹配能力，达到了预期设计效果。

关键词: 子阵多输入多输出雷达, 波形优化, 脉压宽主瓣技术, 收发联合设计

Abstract:

Fully digital array multiple input multiple output (MIMO) radar face significant cost challenges when the number of array elements is large. Employing a subarray MIMO architecture can effectively reduce system costs while retaining the high degrees of freedom inherent in MIMO radar. However, corresponding research on waveform optimization theory for this architecture remains relatively scarce. For subarray MIMO radar waveform optimization, this paper proposes a joint design algorithm integrating pulse compression wide mainlobe technique and transceiver co-optimization. The waveform optimization design is constrained by the overall system capability, and the waveform optimization criteria are studied under three scenarios: phased array, mono-peak, and dual-peak transmit beampattern. Simulation results demonstrate that the integrated waveform design algorithm combining pulse compression wide mainlobe with joint transceiver design improves waveform degrees of freedom, reduces the global peak sidelobe level by 4.88?6.54 dB, and endows the transmitted beam with multi-peak matching capability. The intended design effect is achieved.

Key words: subarray multiple-input multiple-output (MIMO) radar, waveform optimization, pulse compression wide mainlobe technology, joint transmit receive design

中图分类号:

TN958

孙慧霞, 周生华, 杜小荷, 南静怡, 郭小路, 林明聪. 脉压宽主瓣子阵MIMO雷达收发联合设计[J]. 系统工程与电子技术, 2026, 48(8): 2602-2614.

Huixia SUN, Shenghua ZHOU, Xiaohe DU, Jingyi NAN, Xiaolu GUO, Mingcong LIN. Joint transceiver design for subarray MIMO radar with pulse compression wide mainlobe[J]. Systems Engineering and Electronics, 2026, 48(8): 2602-2614.

图/表 12

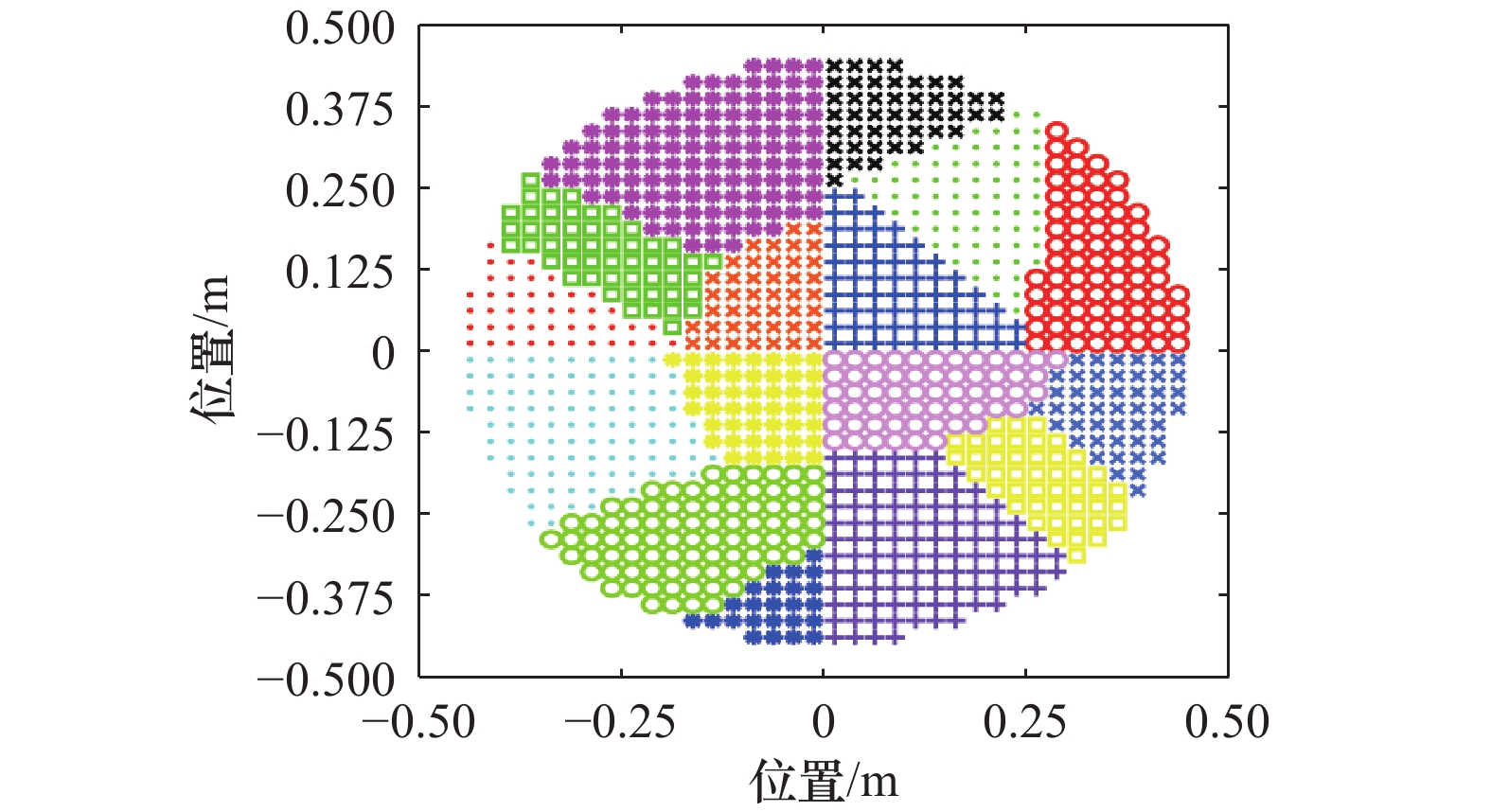

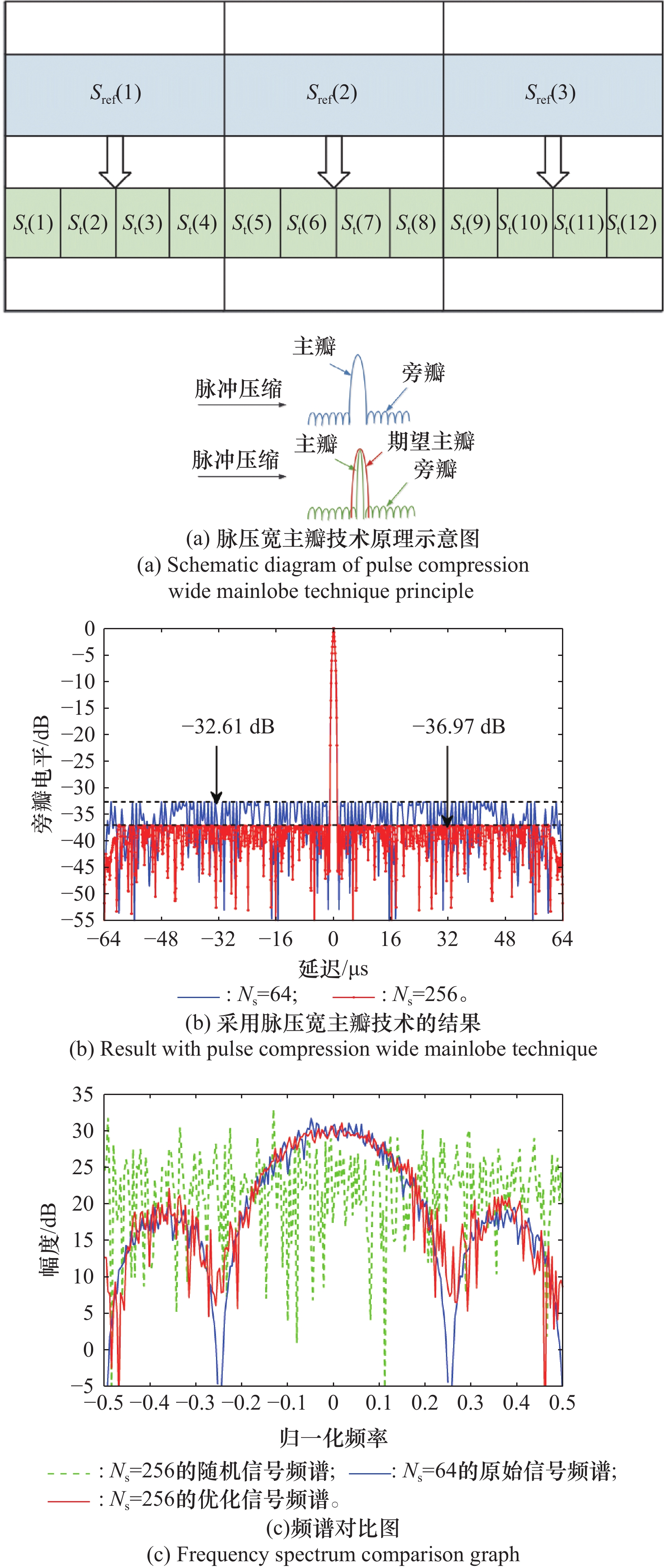

图1

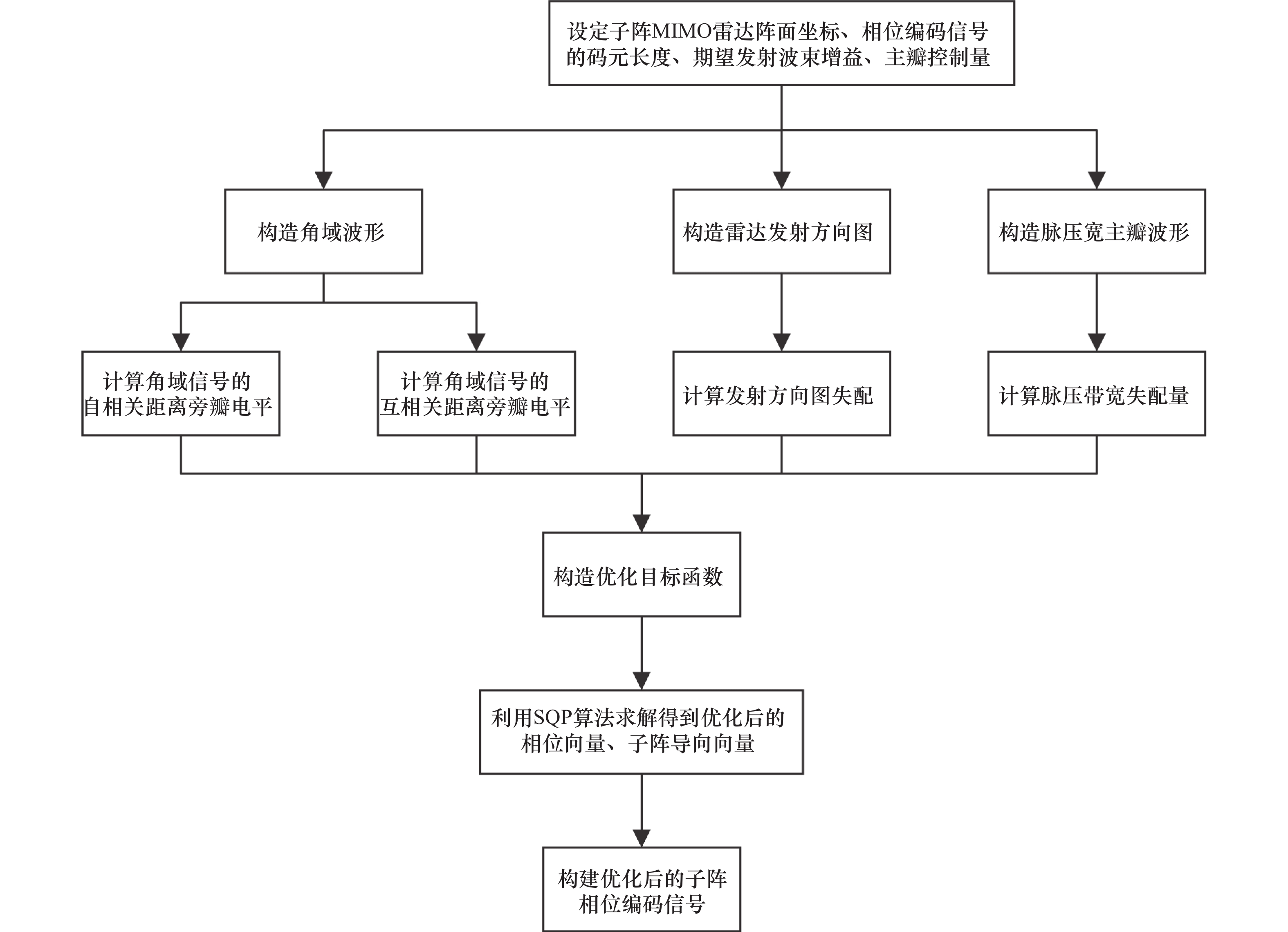

图2

图3

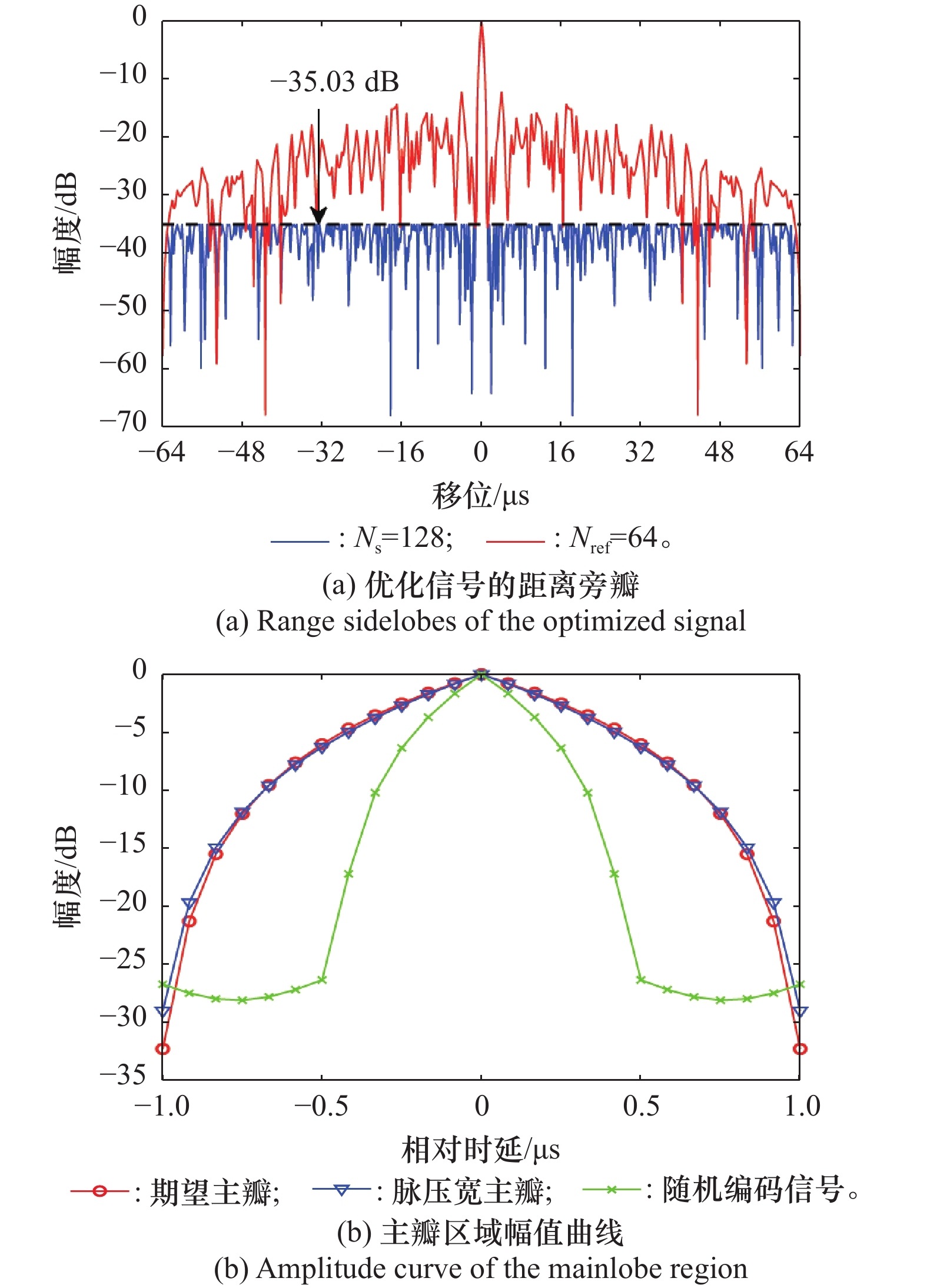

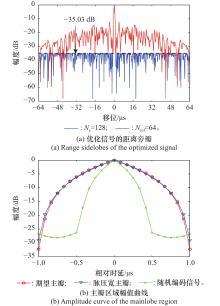

图4

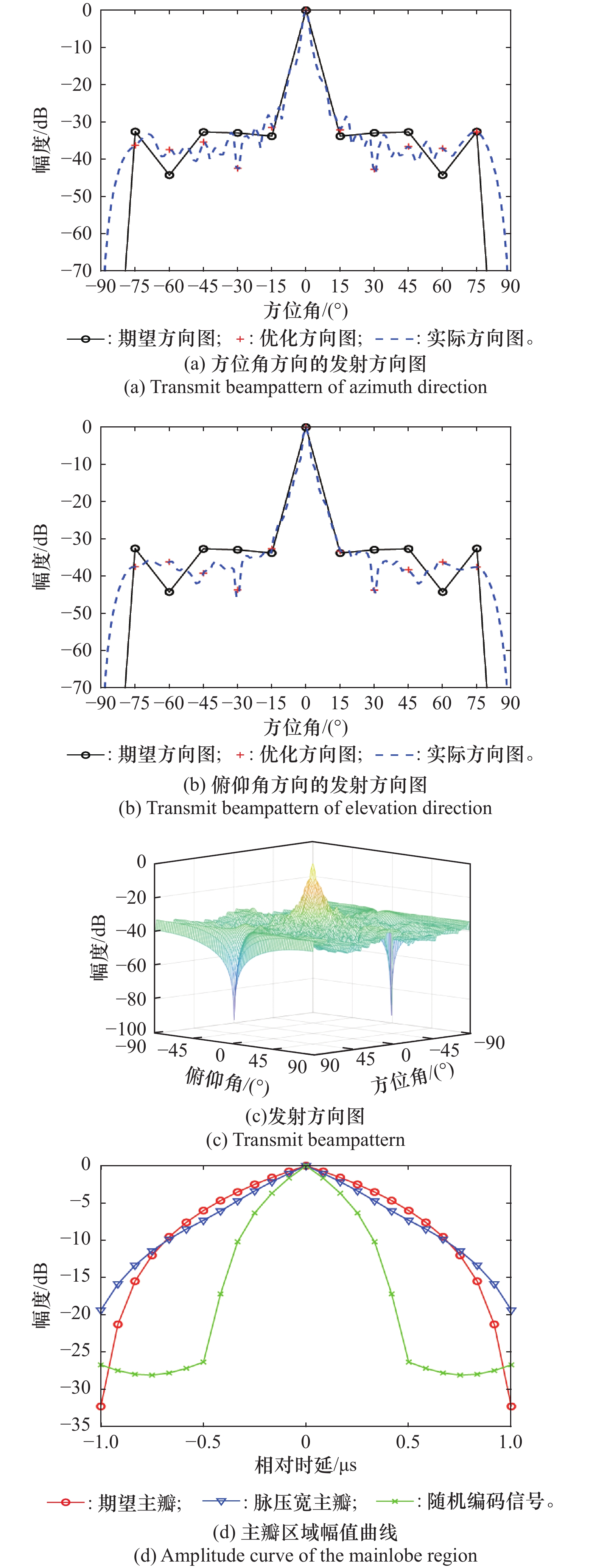

图5

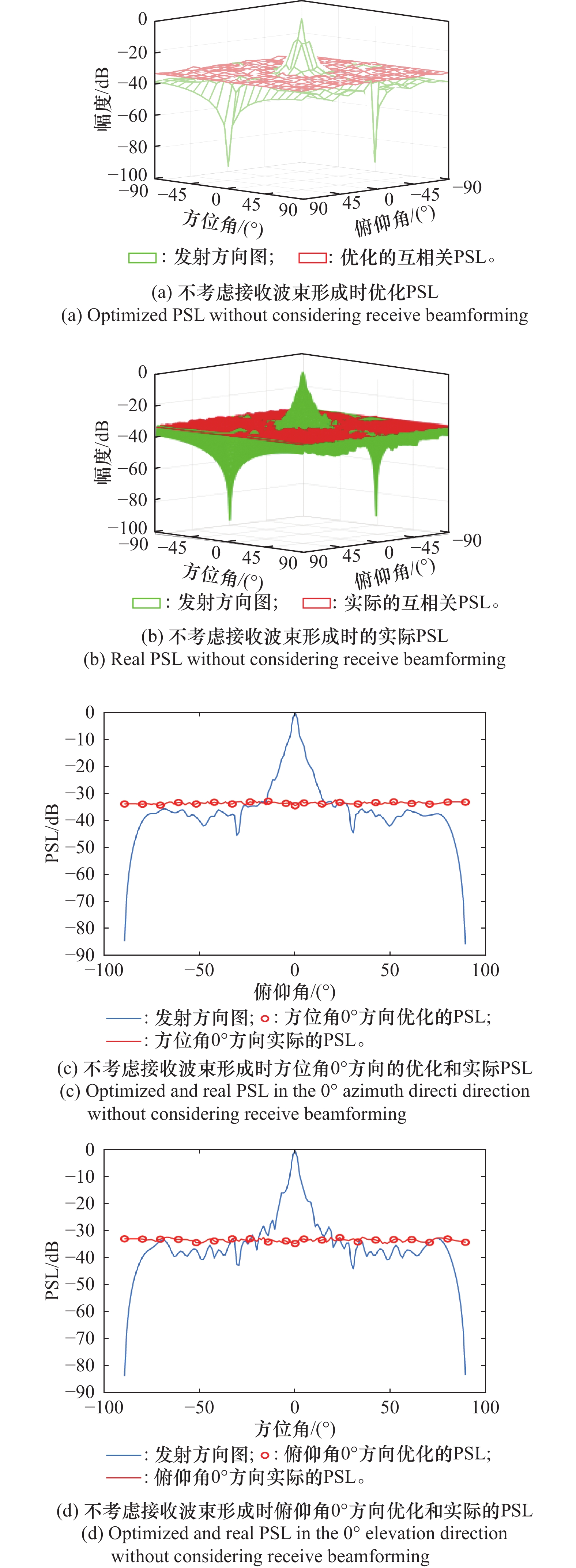

图6

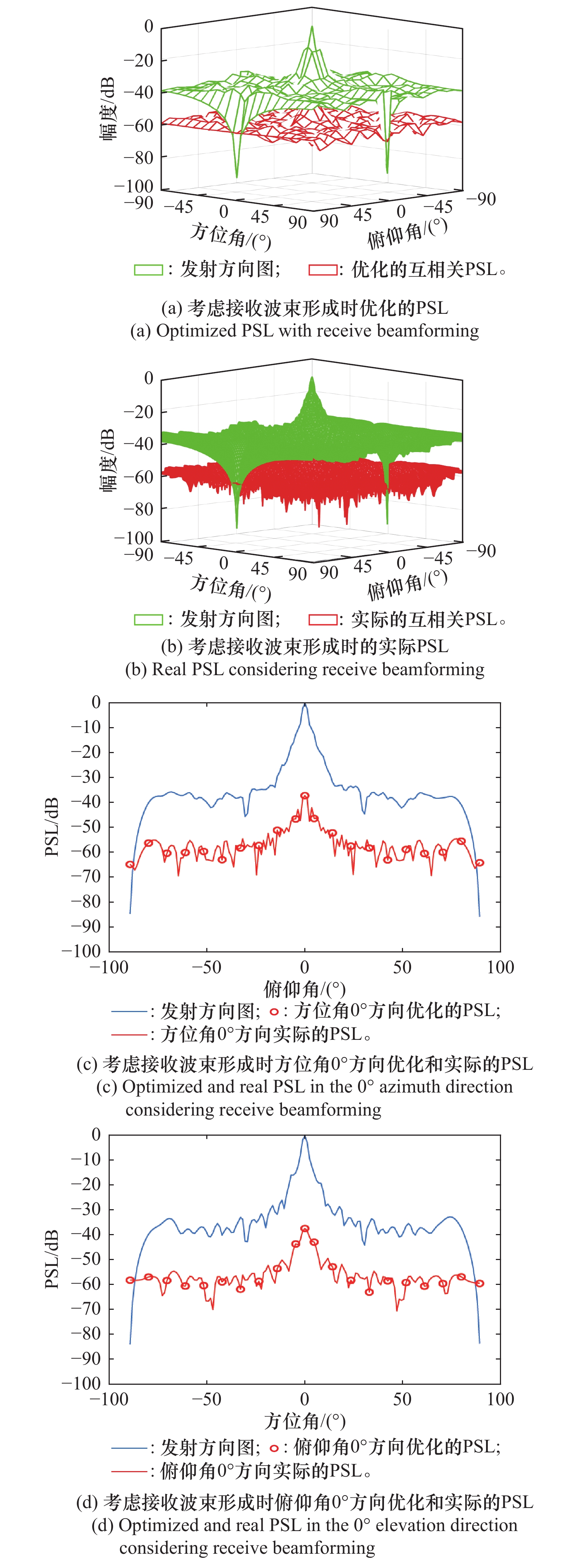

图7

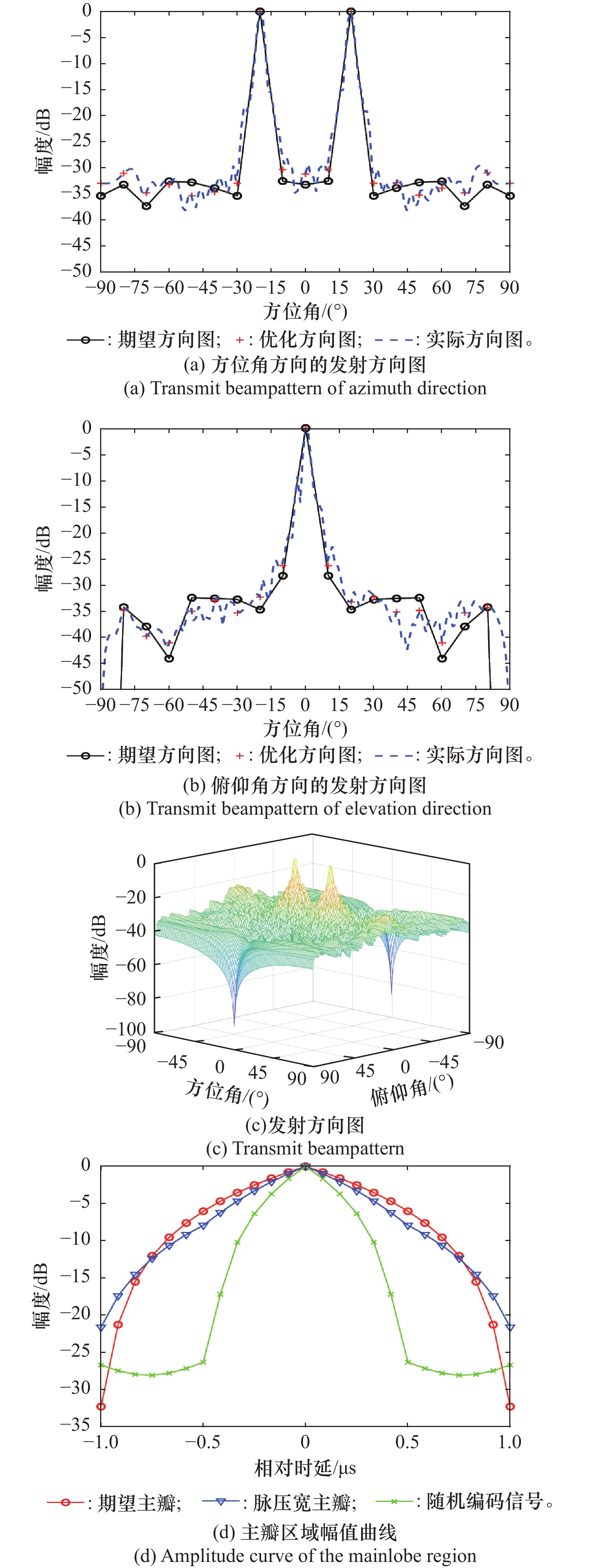

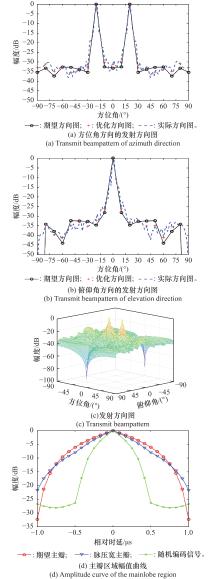

图8

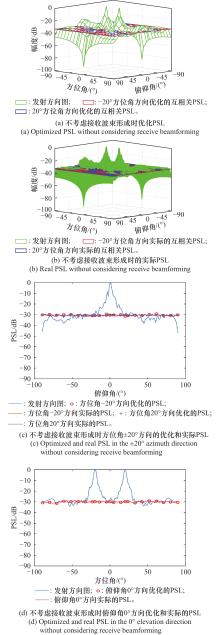

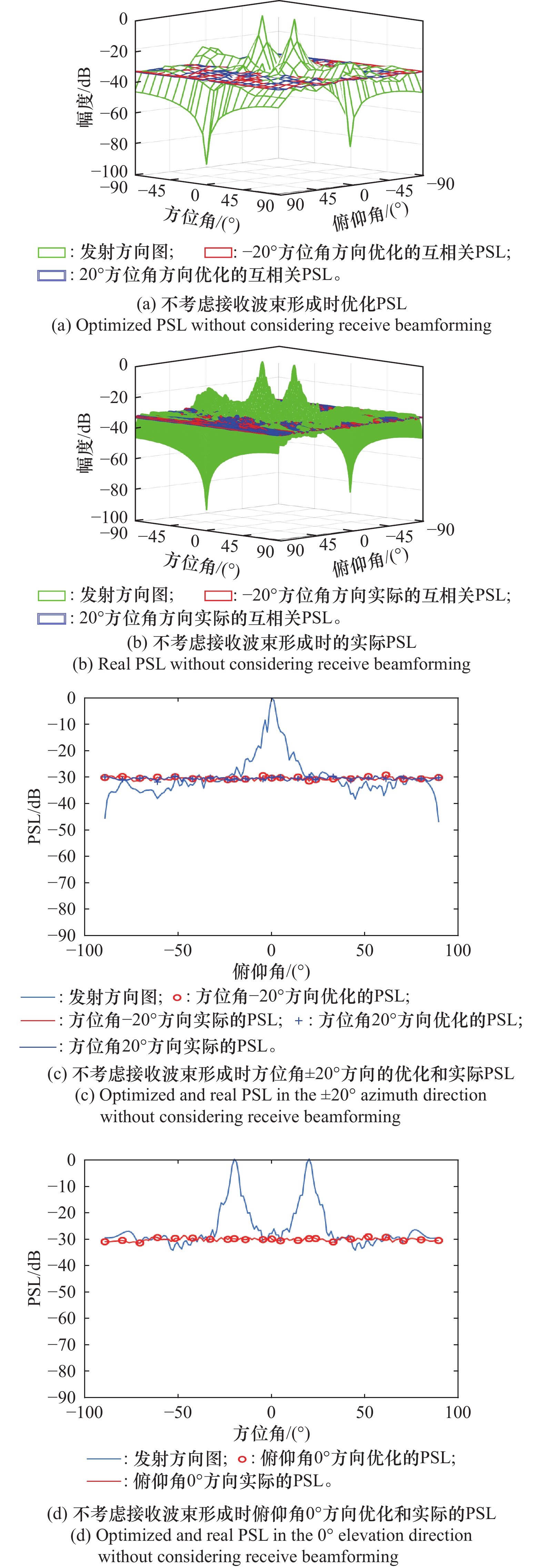

图9

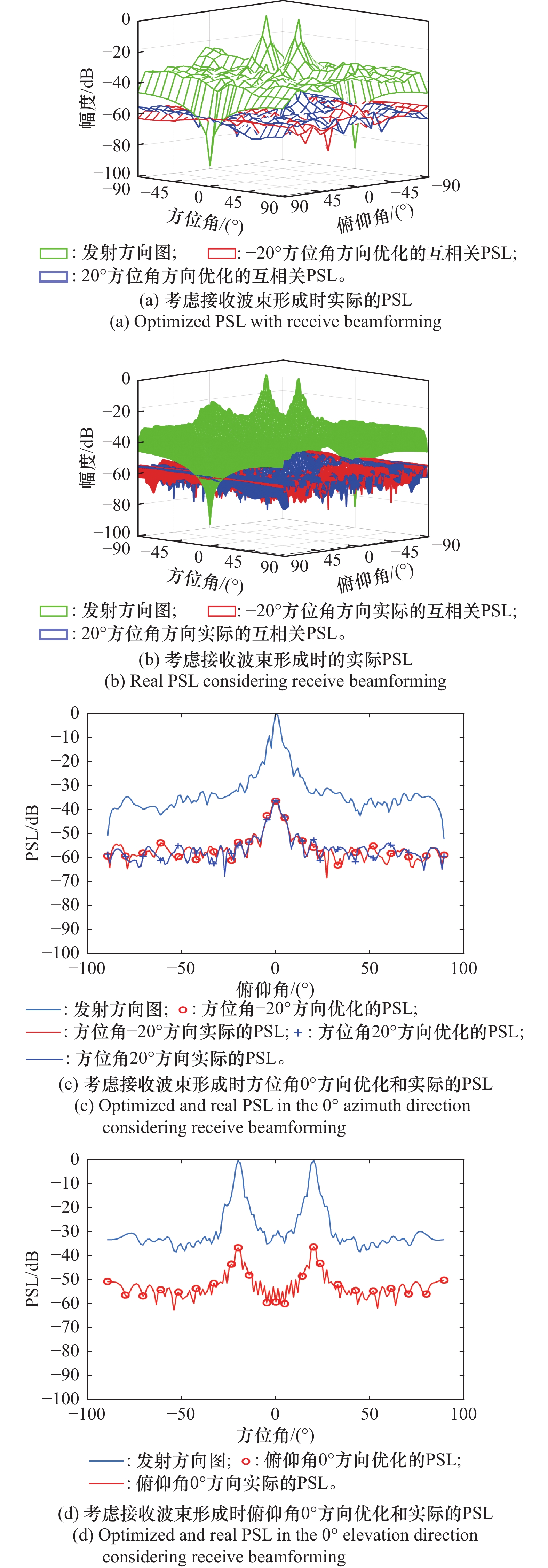

图10

表1

表2

参考文献 41

1	FISHLER E, HAIMOVICH A, BLUM R, et al. MIMO radar: an idea whose time has come[C]//Proc. of the IEEE Radar Conference, 2004: 71−78.
2	LIU X, LIU Y, LIAO G S, et al. Robust low-sidelobe MIMO dual-function radar-communication waveform design[J]. Remote Sensing, 2025, 17 (7): 1242. doi: 10.3390/rs17071242
3	ZHENG K, ZHAO W Q, WOODFORD T. Enhancing mmWave radar sensing using a phased-MIMO architecture [C]//Proc. of the 22nd Annual International Conference on Mobile Systems, Applications and Services, 2024: 56−69.
4	ZHOU Q, GONG Y K, NALLANATHAN A. Radar-aided beam selection in MIMO communication systems: a federated transfer learning approach[J]. IEEE Trans. on Vehicular Technology, 2024, 73, 1- 5. doi: 10.1109/tvt.2024.3373496
5	HUAN M S, LIANG J L, MA Y G, et al. Optimization of high-resolution and ambiguity-free sparse planar array geometry for automotive MIMO radar[J]. IEEE Trans. on Signal Processing, 2024, 72, 4332- 4348. doi: 10.1109/TSP.2024.3404888
6	WANG J Q, CHEN Y F, CHEN L. Transmit beamforming for MIMO dual functional radar-communication with IQI[J]. IEEE Trans. on Vehicular Technology, 2023, 3 (12): 15732- 15744. doi: 10.1109/tvt.2023.3290155
7	YI W M, GROSSI E, LAI Y M, et al. Joint detection and localization in distributed MIMO radars employing waveforms with imperfect auto- and cross-correlation[J]. IEEE Trans. on Vehicular Technology, 2023, 72, 16524- 16537.
8	CHEN Y, YANG M, LI J, et al. A nested-nested sparse array specially for monostatic colocated MIMO radar with increased degree of freedom[J]. Sensors, 2023, 23 (22): 9230. doi: 10.3390/s23229230
9	BUZZI S, RIHAN M, ZAPPONE A. Robust RIS-assisted MIMO communication-radar coexistence: joint beamforming and waveform design[J]. IEEE Communications Society, 2023, 30 (12): 6647- 6661. doi: 10.1109/tcomm.2023.3298983
10	WANG Y J, CHEN M C. A novel MIMO radar orthogonal waveform design algorithm based on the multi-objective improved archimedes optimization algorithm[J]. Remote Sensing, 2023, 15 (21): 5231. doi: 10.3390/rs15215231
11	ZHU J, LIU W, ZHANG X, et al. Antenna placement optimization for distributed MIMO radar based on a reinforcement learning algorithm[J]. Scientific Reports, 2023, 13 (1): 17487. doi: 10.1038/s41598-023-43076-z
12	WAQAR S, MUAAZ M, PATZOLD M. Direction-independent human activity recognition using a distributed MIMO radar system and deep learning[J]. IEEE Sensors Council, 2023, 10 (15): 24916- 24929. doi: 10.1109/jsen.2023.3310620
13	JIA W K, JAKOBSSON A, JIAN J W, et al. Unimodular transmit sequence design for FDA-MIMO radar in the presence of mismatched target steering vectors[J]. IEEE Trans. on Antennas and Propagation, 2025, 73 (1): 161- 173. doi: 10.1109/TAP.2024.3502915
14	HAO Y H, WANG Z F, FU J, et al. Combinatorial-restless-bandit-based transmitter-receiver online selection of distributed MIMO radar with non-stationary channels[J]. Signal Processing, 2025, 227, 1- 12. doi: 10.1016/j.sigpro.2024.109707
15	CHEN G, WANG C Y, GONG J, et al. A fast phase-only beamforming algorithm for FDA-MIMO radar via kronecker decomposition[J]. Electronics, 2024, 13 (2): 19. doi: 10.2139/ssrn.4429497
16	LEE H C, LEE S G, HEO H P. BER comparisons of MIMO radar with uniform linear arrays[J]. Journal of Algorithms & Computational Technology, 2024, 18, 1- 8.
17	YAN Y F, TAO H H, SU J. An antenna subset selection algorithm in distributed MIMO radar for target localization via convolutional neural network[J]. IET Radar, Sonar & Navigation, 2023, 11, 1538- 1548.
18	SONG Y, ZHANG J C, CHEN J L, et al. Outlier-resistant Bayesian tensor completion for angle estimation in bistatic MIMO radar under array element failures[J]. Signal Processing, 2025, 236, 1- 15. doi: 10.1016/j.sigpro.2025.110061
19	王行舒, 张劲东, 张亚男, 等. 基于迭代重加权的子阵级MIMO雷达角度超分辨算法[J]. 现代雷达, 2024, 46 (6): 85- 91. doi: 10.16592/j.cnki.1004-7859.2024.06.014
	WANG X S, ZHANG J D, ZHANG Y N, et al. angle super-resolution algorithm for subarray MIMO radar based on iterative reweighted approach[J]. Modern Radar, 2024, 46 (6): 85- 91. doi: 10.16592/j.cnki.1004-7859.2024.06.014
20	QI C, XIE J W, ZHANG H W, et al. Improving PA-MIMO radar detection performance through transceiver subarray configuration optimization under QoS-based model[J]. IEEE Trans. on Aerospace and Electronics Systems, 2025, 61 (1): 1120- 1134. doi: 10.1109/TAES.2024.3454012
21	周贺, 吴建新, 张磊. 采用子阵多输入多输出的天基预警雷达强杂波抑制方法[J]. 西安交通大学学报, 2024, 58 (4): 170- 181.
	ZHOU H, WU J, ZHANG L. A strong clutter suppression method for space-based early warning radar using subarray mutiple input multiple output[J]. Journal of Xi’an Jiaotong University, 2024, 58 (4): 170- 181.
22	黄磊, 柳艾飞, 高才才. 集中式MIMO雷达研究进展: 正交波形设计与信号处理[J]. 雷达科学与技术, 2023, 21 (1): 1- 23. doi: 10.3969/j.issn.1672-2337.2023.01.001
	HUANG L, LIU A F, GAO C C. A review of orthogonal waveform design and signal processing in collocated MIMO radar[J]. Radar Science and Technology, 2023, 21 (1): 1- 23. doi: 10.3969/j.issn.1672-2337.2023.01.001
23	HASSANIEN A, VOROBYOV S A. Phased-MIMO radar: a tradeoff between phased-array and MIMO radars[J]. IEEE Trans. on Signal Processing, 2010, 58 (6): 3137- 3151. doi: 10.1109/TSP.2010.2043976
24	FUHRMANN D R, BROWNING J P, RANGASWAMY M. Signal strategies for the hybrid MIMO phased-array radar[J]. IEEE Journal of Selected Topics in Signal Processing, 2010, 4 (1): 66- 78. doi: 10.1109/JSTSP.2009.2038968
25	WILCOX D, SELLATHURAI M. On MIMO radar subarrayed transmit beamforming[J]. IEEE Trans. on Signal Processing, 2012, 60 (4): 2076- 2081. doi: 10.1109/TSP.2011.2179540
26	KHAN W, QURESHI I M, SULTAN K. Ambiguity function of phased-MIMO radar with colocated antennas and its properties[J]. IEEE Geoscience and Remote Sensing Letters, 2014, 11 (7): 1220- 1224. doi: 10.1109/LGRS.2013.2290010
27	KHAN W, QURESHI I M, BASIT A, et al. Hybrid phased MIMO radar with unequal subarrays[J]. IEEE Antennas and Wireless Propagation Letters, 2015, 14, 1702- 1705. doi: 10.1109/LAWP.2015.2419279
28	陈志坤, 冯翔, 李风从, 等. Phased-MIMO雷达恒模正交波形优化设计[J]. 系统工程与电子技术, 2016, 38 (6): 1288- 1294. doi: 10.3969/j.issn.1001-506X.2016.06.11
	CHEN Z K, FENG X, LI F C, et al. Constant orthogonal waveform optimal design for phased-MIMO radar[J]. Systems Engineering and Electronics, 2016, 38 (6): 1288- 1294. doi: 10.3969/j.issn.1001-506X.2016.06.11
29	NI D, YANG S W, GUO J X. A study on the application of subarrayed time-modulated arrays to MIMO radar[J]. IEEE Antennas and Wireless Propagation Letters, 2017, 16, 1171- 1174. doi: 10.1109/LAWP.2016.2626478
30	BUTT F A, NAQVI I H, RIAZ U. Hybrid phased-MIMO radar: a novel approach with optimal performance under electronic countermeasures[J]. IEEE Communications Letters, 2018, 22 (6): 1184- 1187. doi: 10.1109/LCOMM.2018.2828408
31	DU X H, ZHOU S H, ZHANG M C. A sub-array MIMO radar waveform design with wide pulse compression main-lobe [C]//Proc. of the IEEE International Radar Conference, 2023.
32	刘帅琦, 王布宏, 李夏, 等. 二维混合MIMO相控阵雷达收发波束空间设计[J]. 系统工程与电子技术, 2017, 39 (10): 2221- 2227.
	LIU S Q, WANG B H, LI X, et al. Joint transmit and receive beamspace design for two-dimensional hybrid MIMO phased-array radar[J]. Systems Engineering and Electronics, 2017, 39 (10): 2221- 2227.
33	TAHCFULLOH S. MIMO radar array antenna with transmit-receive subarrays[J]. International Journal of Intelligent Engineering and Systems, 2020, 13 (6): 189- 198. doi: 10.22266/ijies2020.1231.17
34	HAN K, HONG S. High-resolution phased-subarray MIMO radar with grating lobe cancellation technology[J]. IEEE Trans. on Microwave Theory and Techniques, 2022, 70 (5): 2775- 2785. doi: 10.1109/TMTT.2022.3151633
35	LIU R T, ZHANG W, YU X X, et al. Transmit-receive beamforming for distributed phased-MIMO radar system[J]. IEEE Trans. on Vehicular Technology, 2022, 71 (2): 1439- 1453. doi: 10.1109/TVT.2021.3133596
36	QI C, XIE J W, ZHANG H W, et al. Improving PA-MIMO radar detection performance through transceiver subarray configuration optimization under QoS-based model[J]. IEEE Trans. on Aerospace and Electronic System, 2025, 61 (1): 1120- 1134.
37	XU L L, ZHOU S H, LIU H W, et al. Distributed multiple-input-multiple-output radar waveform and mismatched filter design with expanded mainlobe[J]. IET Radar, Sonar & Navigation, 2018, 12 (2): 227- 238. doi: 10.1049/iet-rsn.2017.0340
38	ZHOU S H, LU J, VARSHNEY P K, et al. Colocated MIMO radar waveform optimization with receive beamforming[J]. Digital Signal Processing, 2019, 98, 102635.
39	LI H, ZHAO Y B, CHENG Z F, et al. Orthogonal frequency division multiplexing linear frequency modulation signal design with optimized pulse compression property of spatial synthesized signals[J]. IET Radar, Sonar & Navigation, 2016, 10 (7): 1319- 1326. doi: 10.1049/iet-rsn.2015.0642
40	BOYD S, PARIKH N, CHU E, et al. Distributed optimization and statistical learning via the alternating direction method of multipliers[J]. Foundations and Trends in Machine Learning, 2010, 3 (1): 11- 22. doi: 10.1561/9781601984616
41	胡亮兵, 刘宏伟, 杨晓超, 等. 集中式MIMO雷达发射方向图快速设计方法[J]. 电子与信息学报, 2010, 32 (2): 481- 484. doi: 10.3724/SP.J.1146.2009.00705
	HU L B, LIU H W, YANG X C, et al. Fast transmit beampattern synthesis for MIMO radar with colocated antennas[J]. Journal of Electronics & Information Technology, 2010, 32 (2): 481- 484. doi: 10.3724/SP.J.1146.2009.00705

方向图	PSL	接收波束形成	通道1	通道2	全局
单峰	优化	否	−31.89	−	−31.89
	优化	是	−37.14	−	−37.14
	实际	否	−31.00	−	−31.00
	实际	是	−37.14	−	−37.14
双峰	优化	否	−32.50	−32.57	−32.50
	优化	是	−36.76	−36.70	−36.70
	实际	否	−31.99	−31.86	−31.86
	实际	是	−36.73	−36.68	−36.68

方向图	PSL	接收波束形成	通道1	通道2	全局
单峰	优化	否	−31.07	−	−31.07
	优化	是	−35.77	−	−35.77
	实际	否	−30.60	−	−30.60
	实际	是	−35.77	−	−35.77
双峰	优化	否	−31.82	−32.12	−31.82
	优化	是	−36.34	−36.10	−36.10
	实际	否	−31.40	−31.86	−31.40
	实际	是	−36.33	−36.10	−36.10
