基于天线方向性参数辨识的航空器测向研究

doi:10.12305/j.issn.1001-506X.2024.07.26

Abstract

Abstract:

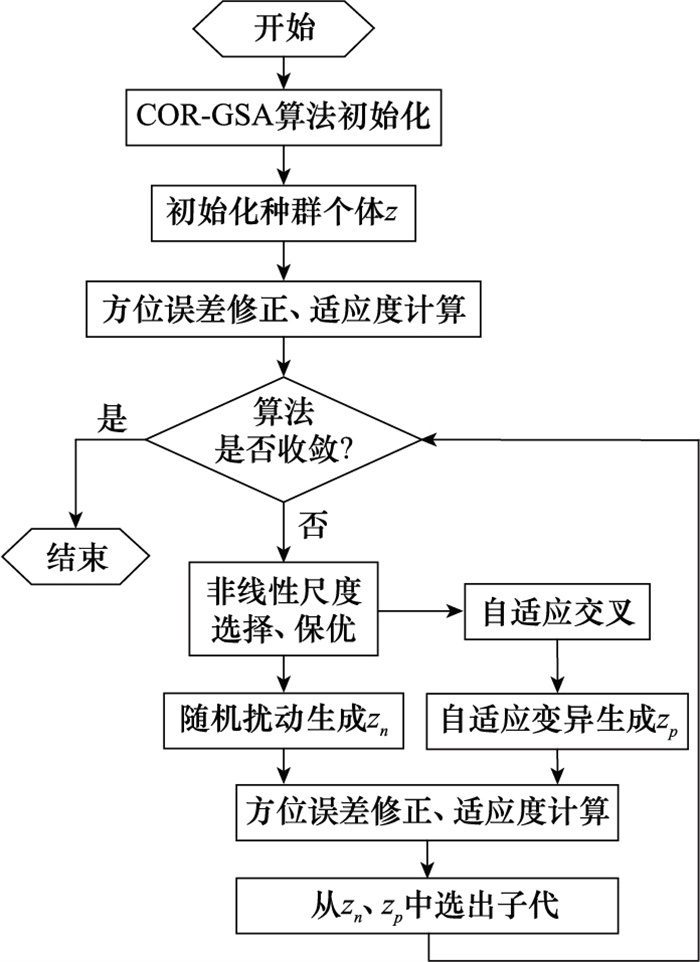

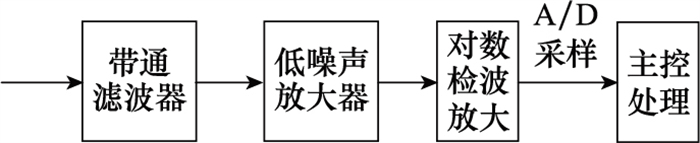

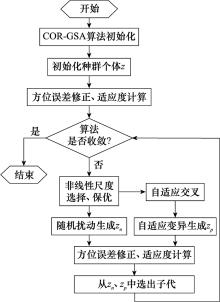

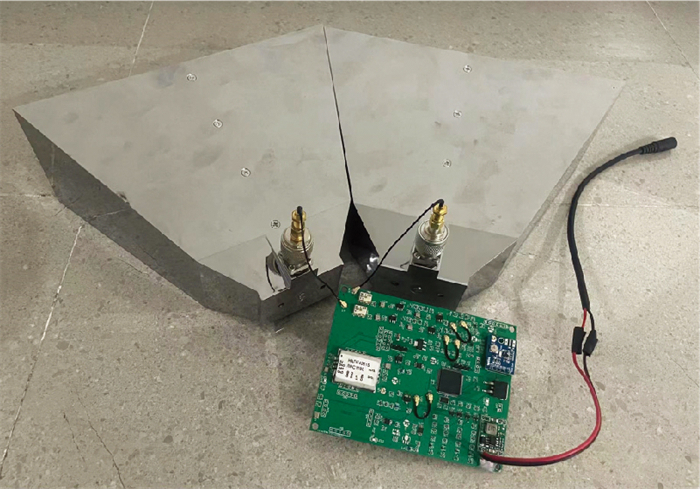

Radar direction finding is an essential cooperative monitoring method for aircraft, and the directional parameters of the direction finding antenna determine the accuracy of direction finding. A modified amplitude comparison direction finding model is proposed based on the traditional principle of adjacent amplitude comparison direction finding and the error of amplitude comparison direction finding. Based on the correction of amplitude comparison direction finding model, an error correction genetic simulated annealing (COR-GSA) algorithm is proposed to identify unknown directional antenna directionality parameters by determining the antenna directionality parameters that need to be identified. Identification experiments are conducted using a self-designed dual channel direction finding receiver, and 1 000 sets of aircraft real azimuth data are used for verification. The results show that using the COR-GSA algorithm to identify antenna directional parameters has the highest direction finding accuracy. Finally, the identified antenna directionality parameters are used to track the aircraft's azimuth, and the tracking error is reduced by 18.3% compared to the tracking error without azimuth correction.

Key words: aircraft direction finding, antenna parameter identification, correction of amplitude comparison direction finding, azimuth tracking

CLC Number:

V355

Weili YUAN, Xinmin TANG, Junwei GU. Research on aircraft direction finding based on antenna directionality parameter identification[J]. Systems Engineering and Electronics, 2024, 46(7): 2446-2455.

Figures/Tables 17

Fig.1

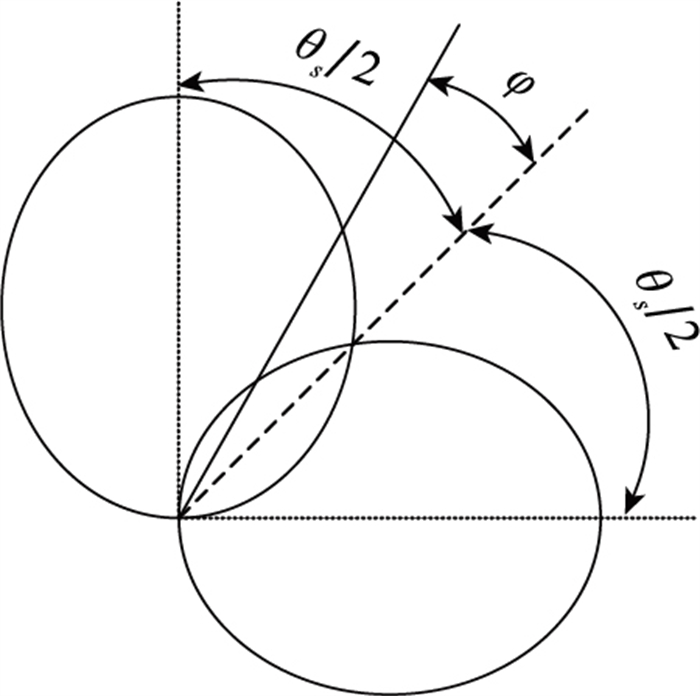

Fig.2

Fig.3

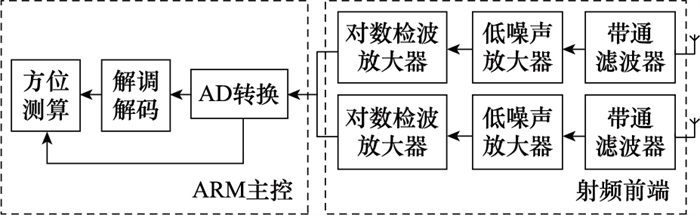

Fig.4

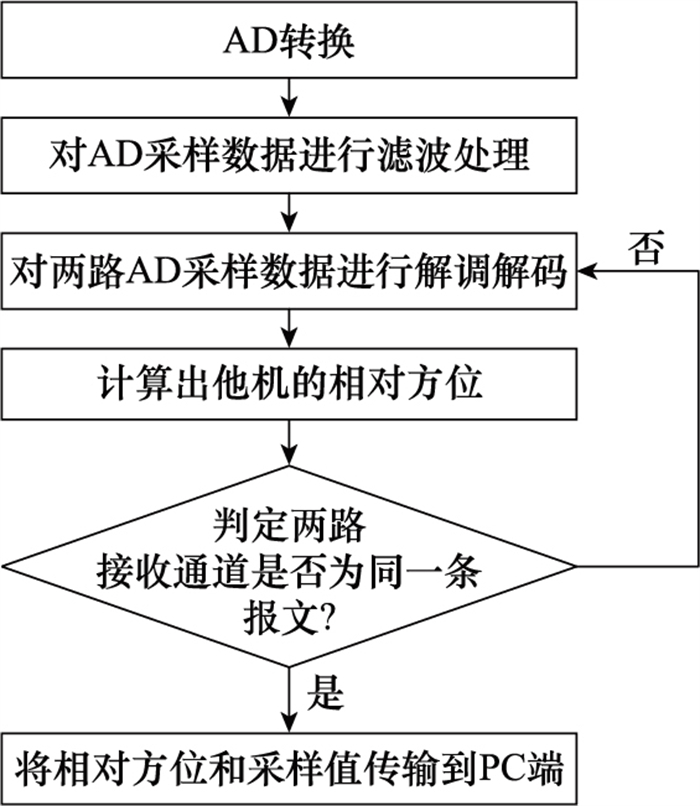

Fig.5

Fig.6

Fig.7

Table 1

Table 2

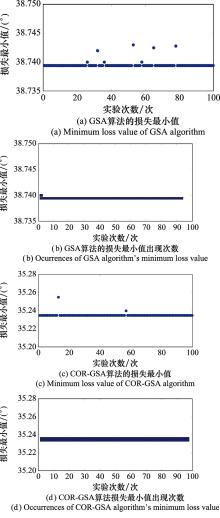

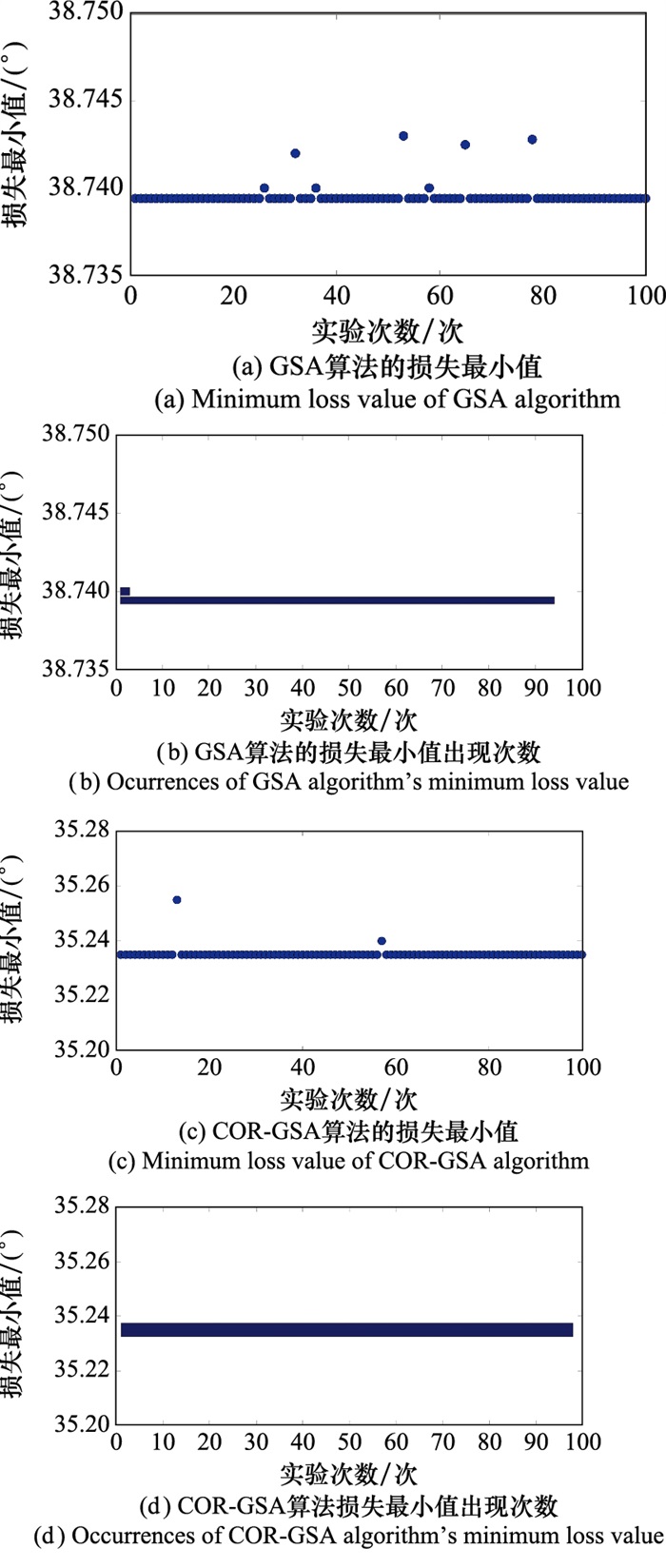

Fig.8

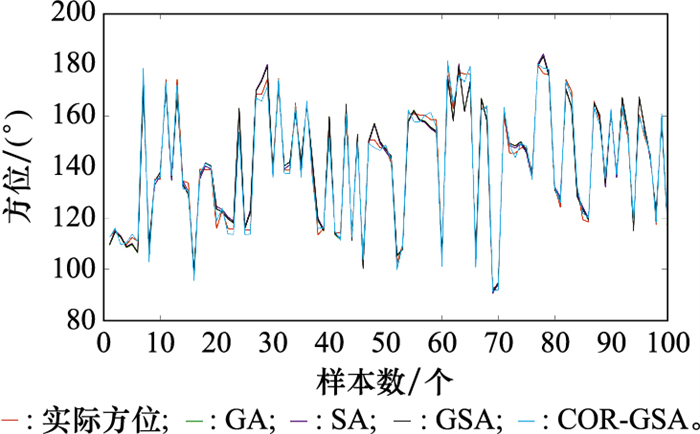

Fig.9

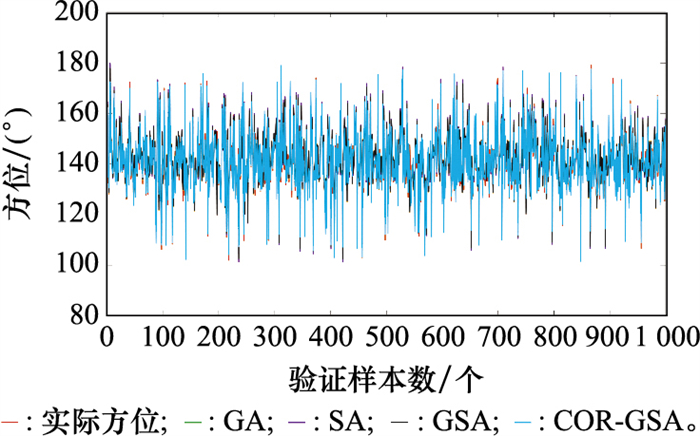

Fig.10

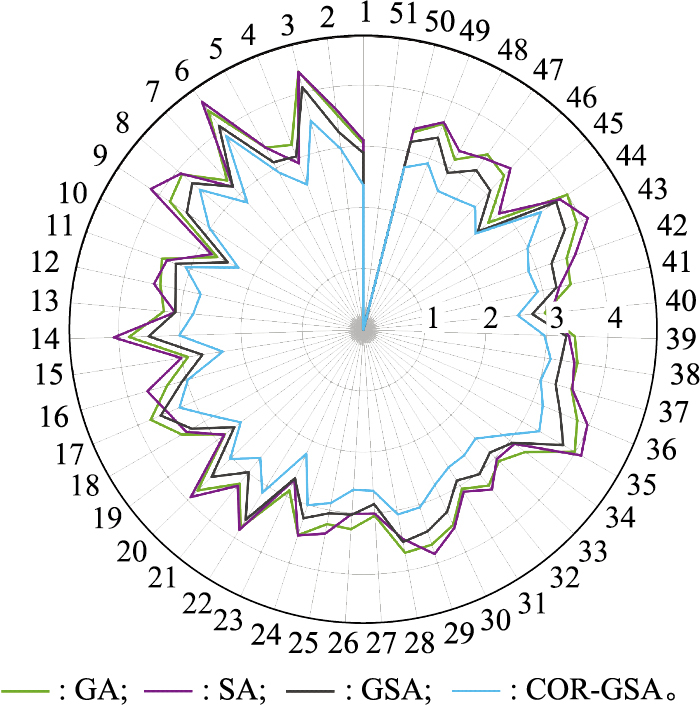

Fig.11

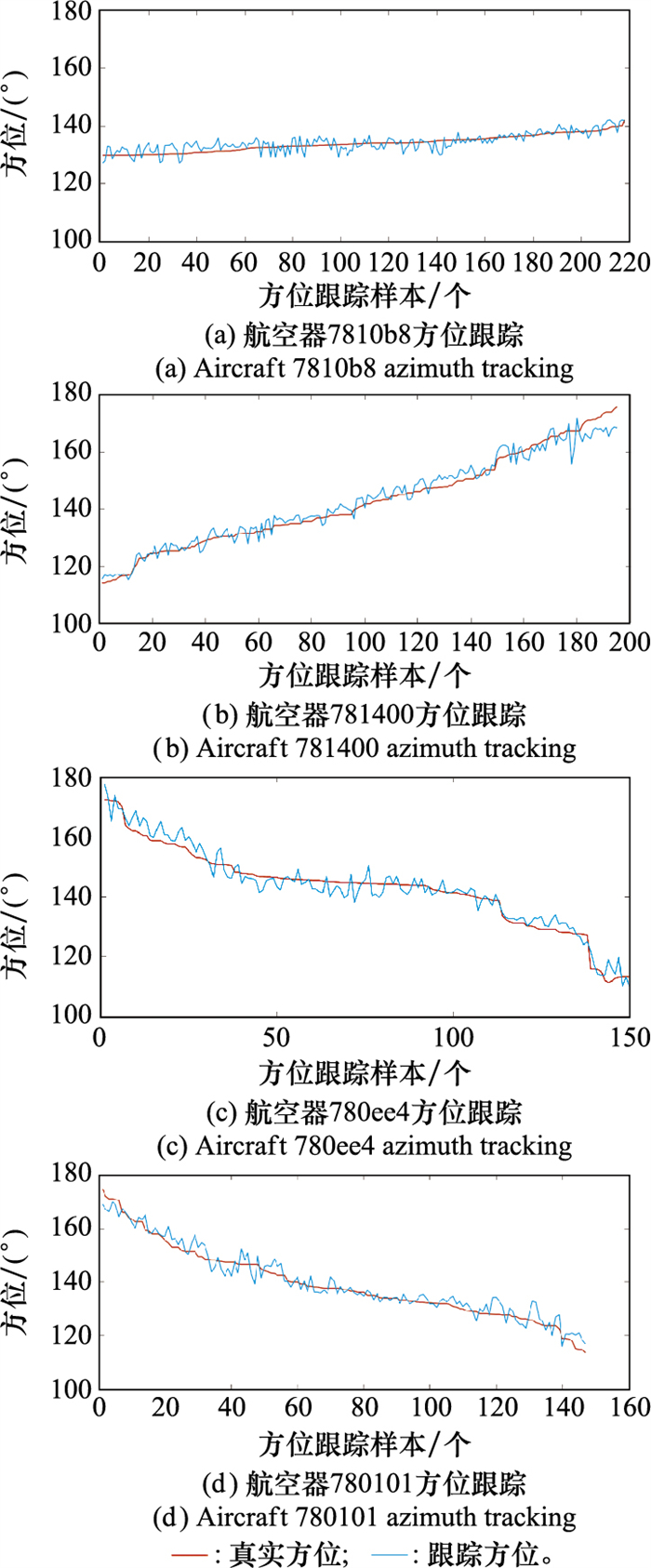

Fig.12

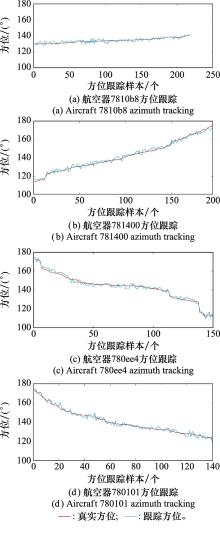

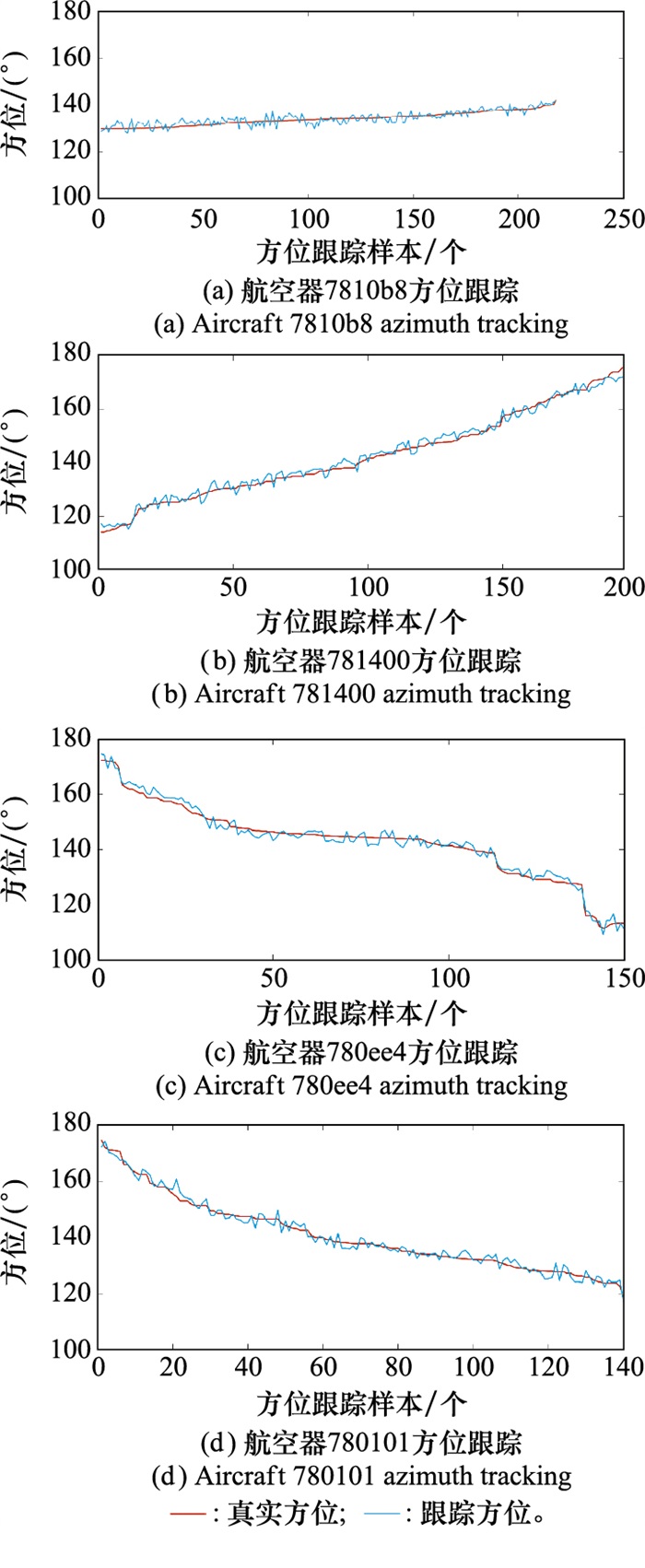

Fig.13

Table 3

Table 4

References 34

1	MARTELLI T , COLONE F , CARDINALI R . DVB-T based passive radar for simultaneous counter drone operations and civil air traffic surveillance[J]. IET Radar, Sonar & Navigation, 2020, 14 (4): 505- 515.
2	GABRIELA S, MIHAELA L, FLORIN C, AUGUSTIN S, et al. New air traffic surveillance systems[C]//Proc. of the International Conference of Numerical Analysis and Applied Mathematics, 2022.
3	DEJAN K , DRAGAN D , MIRKO D , et al. Air traffic modernization and control: ADS-B system implementation update 2022: a review[J]. University of Belgrade-Faculty of Mechanical Engineering, 2023, 51 (1): 117- 130.
4	ALI B , OCHIENG W , MAJUNDAR A . ADS-B: probabilistic safety assessment[J]. The Journal of Navigation, 2017, 70 (4): 887- 906. doi: 10.1017/S0373463317000054
5	CHIOCCHIO S , PERSIA A , SANTUCCI F , et al. Modeling and evaluation of enhanced reception techniques for ADS-B signals in high interference environments[J]. Physical Communication, 2020, 42, 101171. doi: 10.1016/j.phycom.2020.101171
6	RTCA DO-260B. Minimum operational performance standardsfor 1090 MHz extended squitter automatic dependent surveillance-broadcast(ADS-B) and traffic information services broadcast(TIS-B)[S]. Washington DC: Radio Technical Commission for Aeronautics, 2009.
7	EUIHO K , KEVIN S . Blended secondary surveillance radar solutions to improve air traffic surveillance[J]. Aerospace Science and Technology, 2015, 45, 203- 208. doi: 10.1016/j.ast.2015.05.018
8	MOHAMMADKARIMI M, RAJAN R T. Cooperative sense and avoid for UAVs using secondary radar[EB/OL]. [2023-06-30]. https://arxiv.org/abs/2306.03046.
9	KHOMENKO A, PODDBNYI S, BAKSHEEVA I. Improvement of secondary surveillance radar resilience to active interfe-rences[C]// Proc. of the IEEE Wave Electronics and its Application in Information and Telecommunication Systems, 2019.
10	RTCA DO-386. Minimum operational performance standards for airborne collision avoidance system xu (ACAS Xu)[S]. Washington DC: Radio Technical Commission for Aeronautics, 2020.
11	LIU Z X, JIANG N, MA Q, et al. Study on the shipboard radar reconnaissance equipment azimuth benchmark method[C]// Proc. of the AOPC Optical Test, Measurement, and Equipment, 2015: 401-407.
12	FERNANDES E , DA S , DA B , et al. 2.4~5.8 GHz dual-band patch antenna with FSS reflector for radiation parameters enhancement[J]. AEU-International Journal of Electronics and Communications, 2019, 108, 235- 241.
13	DUSSOPT L , MEDRAR K , MARNAT L . Millimeter-wave Gaussian-beam transmitarray antennas for quasi-optical MYM s MYM-parameter characterization[J]. IEEE Trans.on Antennas and Propagation, 2019, 68 (2): 850- 858.
14	SAIDULU V . Dielectric cover layer thickness effect on rectangular microstrip antenna parameters[J]. i-Manager's Journal on Electronics Engineering, 2021, 11 (4): 8- 17.
15	ZHAI Y K , JIANG Z Y , MAI C Y , et al. A3PNet: antijam and accurate antenna parameters measuring network for mobile communication base station using UAV[J]. IEEE Trans.on Instrumentation and Measurement, 2022, 71, 5007515.
16	RAJESWARI P , ANBALAGAN P . Cost effective android-antenna tool (AAT) for the parameter calculation of antenna in android platform[J]. Microprocessors and Microsystems, 2020, 72, 102946. doi: 10.1016/j.micpro.2019.102946
17	EXPÓSITO I , SÁNCHEZ M , CUIÑAS I . Uncertainty assessment of a small rectangular anechoic chamber: from design to operation[J]. IEEE Trans.on Antennas and Propagation, 2020, 68 (6): 4871- 4880. doi: 10.1109/TAP.2020.2969842
18	郑修鹏, 李进杰, 陈鸿, 等. 全向单脉冲振幅法测向技术研究[J]. 舰船电子对抗, 2023, 46 (1): 51- 54.
	ZHENG X P , LIN J J , CHEN H , et al. Research on omnidirectional single pulse amplitude method direction finding technology[J]. Ship Electronic Countermeasures, 2023, 46 (1): 51- 54.
19	PRINCE T , ELMANSOURI M , FILIPOVIC D . Cylindrical luneburg lens antenna systems for amplitude-only direction-finding applications[J]. IEEE Trans.on Antennas and Propagation, 2023, 71 (10): 7924- 7932. doi: 10.1109/TAP.2023.3306638
20	AHMAD N , NAWAZ H , SHOAIB N , et al. Ambiguity resolution in amplitude comparison-based monopulse direction finding antenna systems[J]. IEEE Antennas and Wireless Propagation Letters, 2023, 22 (10): 2605- 2609. doi: 10.1109/LAWP.2023.3298664
21	WAN H , LIAO B . Fourth-order direction finding in antenna arrays with partial channel gain/phase calibration[J]. Signal Processing, 2020, 169, 107380. doi: 10.1016/j.sigpro.2019.107380
22	LIU L T , YU T . An analysis method for solving ambiguity in direction finding with phase interferometers[J]. Circuits, Systems, and Signal Processing, 2021, 40 (3): 1420- 1437. doi: 10.1007/s00034-020-01536-1
23	刘子奇, 臧欣蕊, 贾春, 等. 固定基线约束的低成本GNSS测向方法[EB/OL]. [2023-06-30]. https://doi.org/10.13203/j.whugis20220572.
	LIU Z Q, ZANG X R, JIA C, et al. A low-cost GNSS direction finding method with fixed baseline constraints[EB/OL]. [2023-06-30]. https://doi.org/10.13203/j.whugis20220572.
24	REN K . Direction finding using a single antenna with blade modulation[J]. IEEE Antennas and Wireless Propagation Letters, 2022, 21 (5): 873- 877. doi: 10.1109/LAWP.2022.3149871
25	CHEN L , WANG S L , JIANG H , et al. A novel combined estimation method of online full-parameter identification and adaptive unscented particle filter for Li-ion batteries SOC based on fractional-order modeling[J]. International Journal of Energy Research, 2021, 45 (10): 15481- 15494. doi: 10.1002/er.6817
26	WANG Z T , CHAI J Y , XIANG X D , et al. A novel online parameter identification algorithm designed for deadbeat current control of the permanent-magnet synchronous motor[J]. IEEE Trans.on Industry Applications, 2021, 58 (2): 2029- 2041.
27	向启均. 改进模拟退火优化遗传算法的机器人动力学参数辨识[D]. 长沙: 湖南大学, 2018.
	XIANG Q J. Improved simulated annealing optimization genetic algorithm for robot dynamic parameter identification[D]. Changsha: Hunan University, 2018.
28	王保民, 齐湛江, 闫瑞翔, 等. 基于随机权重粒子群算法的SCARA机器人动力学参数辨识[J]. 西安交通大学学报, 2021, 55 (9): 20- 27.
	WANG B M , QI Z J , YAN R X , et al. Dynamic parameter identification of SCARA robot based on stochastic weight particle swarm optimization algorithm[J]. Journal of Xi'an Jiaotong University, 2021, 55 (9): 20- 27.
29	AHEREH T , RANJBAR N , MILAD M , et al. Parameters identification of photovoltaic solar cells using FIPSO-SQP algorithm[J]. Optik, 2023, 283, 170900. doi: 10.1016/j.ijleo.2023.170900
30	DE L C , LIMON S , TREVIÑO M , et al. Convolutional neural network for parameter identification of a robot[M]. Singapore: Springer Nature Singapore, 2023.
31	IQBAL M F , KHALID Z , ZAHID M , et al. Accuracy improvement in amplitude comparison-based passive direction finding systems by adaptive squint selection[J]. IET Radar, Sonar & Navigation, 2020, 14 (5): 662- 668.
32	POISEL R . Antenna systems and electronic warfare applications[M]. Norwood: Artech House, 2012.
33	LIU C , ZHANG F G , ZHANG H , et al. Optimization of assembly sequence of building components based on simulated annealing genetic algorithm[J]. Alexandria Engineering Journal, 2023, 62, 257- 268.
34	LIN S , ASHLOCK J C , ZHAO G , et al. Genetic-simulated annealing optimization for surface wave inversion of shear-wave velocity profiles of geotechnical sites[J]. Computers and Geotechnics, 2023, 160, 105525.

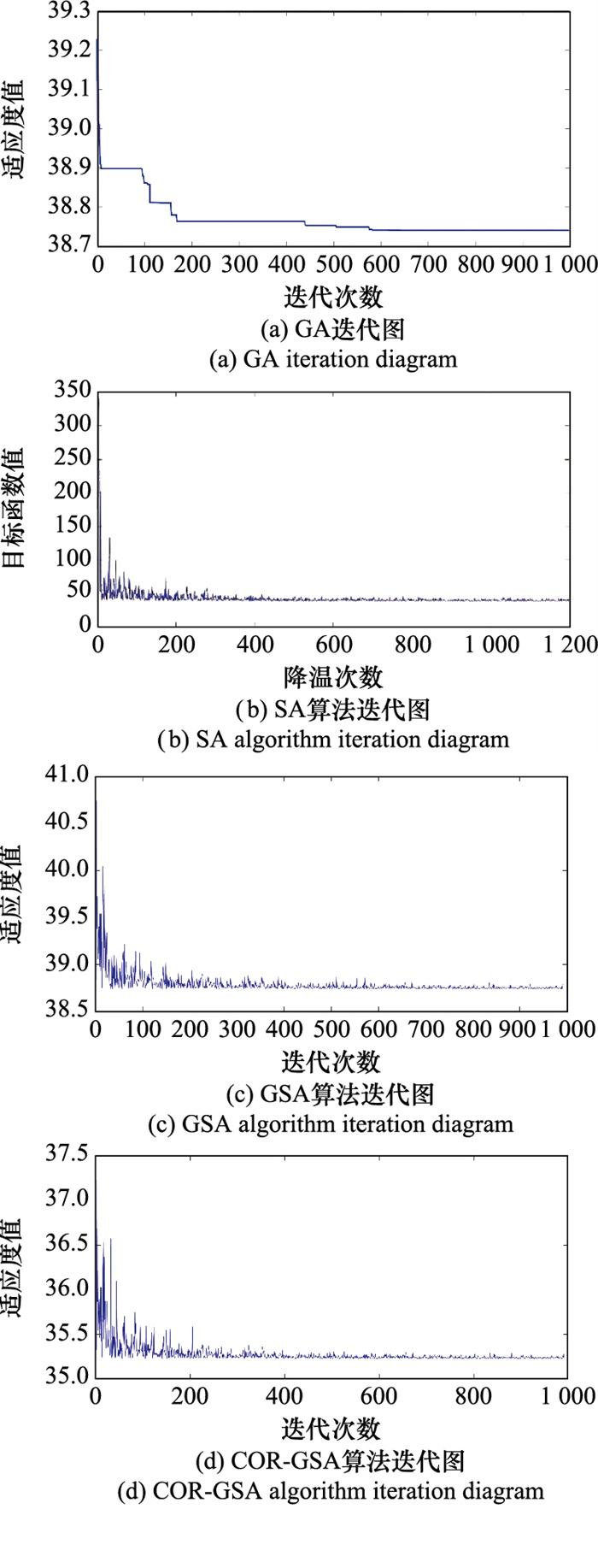

算法	k₂₁	θ_r/rad	损失最小值/(°)
GA	0.946 2	81.812 5	38.790 4
SA	0.898 8	83.357 8	39.489 5
GSA	0.947 6	81.366 2	38.746 0

k₂₁	θ_r/rad	γ₁/dB	γ₂/dB	损失最小值/(°)
0.926 7	78.207 6	10.721 3	12.145 9	35.235 6

参数	ICAO地址
参数	7810b8	781400	780ee4	780101
平均误差	2.213 4	3.682 3	4.032 1	3.247 4
最大误差	4.036 8	6.903 9	7.322 4	5.200 3

参数	ICAO地址
参数	7810b8	781400	780ee4	780101
平均误差	2.037 6	3.098 2	3.172 4	2.598 2
最大误差	3.201 2	4.274 6	4.574 3	3.589 1
