弹载双基前视成像雷达解析-迭代定位方法

doi:10.12305/j.issn.1001-506X.2023.01.09

Abstract

Abstract:

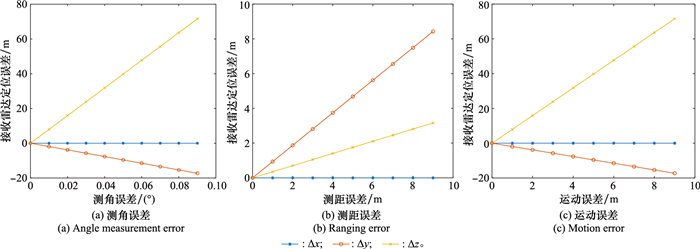

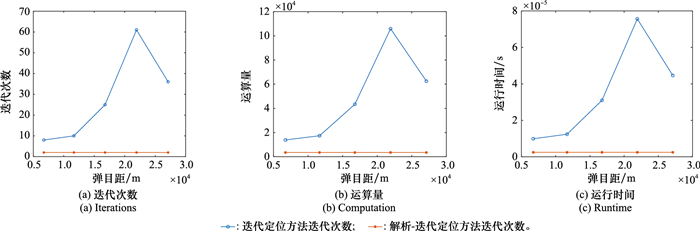

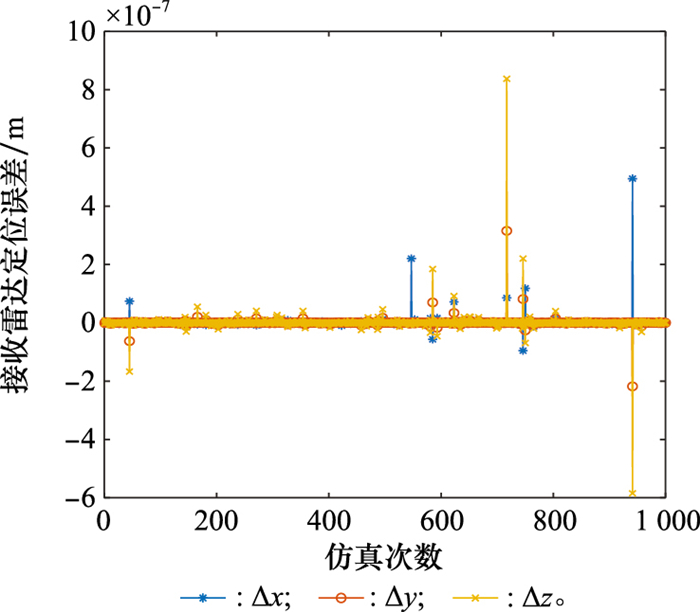

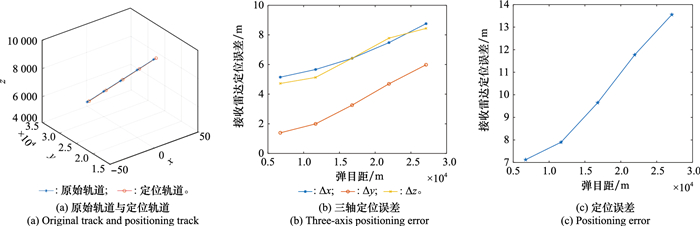

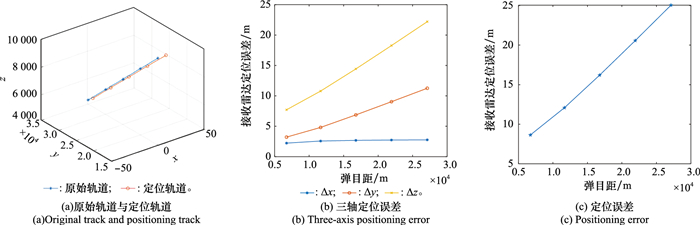

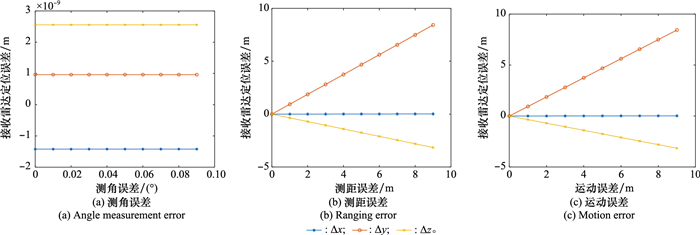

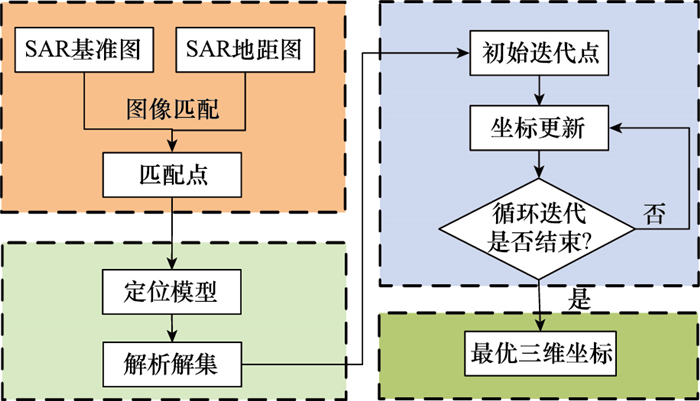

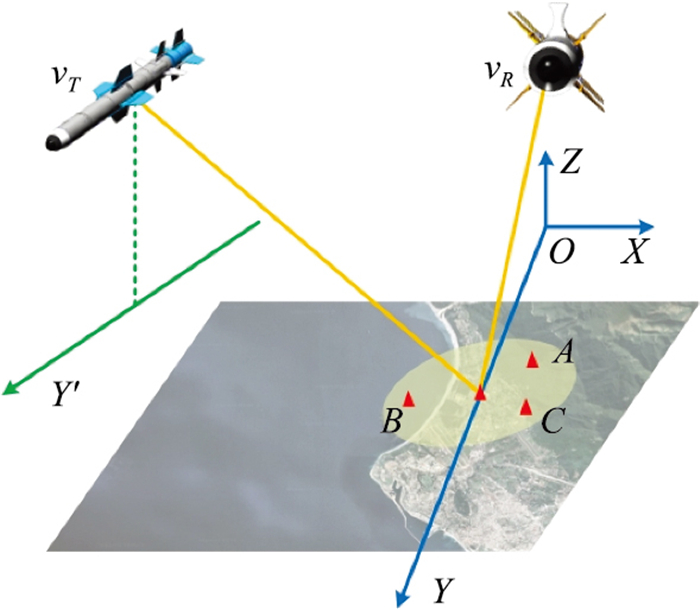

In the guidance stage of missile-borne homing, to solve the problem that traditional bistatic positioning methods are limited by the accuracy of parameters such as speed and angle, an optimal analytical-iterative bistatic positioning method is proposed. First, a missile-borne bistatic forward-looking imaging positioning model is established based on image matching, and the analytical solution set of the positioning model is analyzed and derived. Then the optimal initial iteration point is determined by selection criteria, which is determined by the inertial navigation parameters. Finally, fast iterative search is realized, the optimal three-dimensional coordinates of the receiving radar is obtained, and the precise positioning of the bistatic radar is completed. On this basis, the motion error and matching error models are established, and their influence on positioning accuracy is analyzed through simulation experiments. The results show that under the same experiment conditions and evironment, the proposed analytical-iterative positioning method has high positioning efficiency and accuracy.

Key words: bistatic forward-looking, image matching, analytical-iterative, missile positioning

CLC Number:

TN957

Hengyi ZHAN, Yachao LI, Chunfeng WU, Xuan SONG, Tinghao ZHANG. Analytic-iterative positioning method for missile-borne bistatic forward-looking imaging radar[J]. Systems Engineering and Electronics, 2023, 45(1): 71-78.

Figures/Tables 10

Fig.1

Table 1

Fig.2

Fig.3

Fig.4

Fig.5

Fig.6

Fig.7

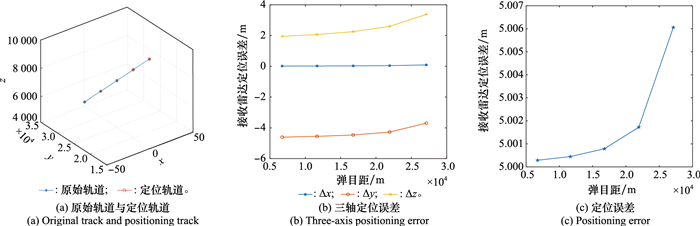

Fig.8

Fig.9

References 30

1	DENGH,LIY C,LIUM Q,et al.A space-variant phase filtering imaging algorithm for missile-borne BiSAR with arbitrary configuration and curved track[J].IEEE Sensors Journal,2018,18(8):3311-3326. doi: 10.1109/JSEN.2018.2809508
2	LIY C,DENGH,QUANY H,et al.Sequence design for high squint spotlight SAR imaging on maneuvering descending trajectory[J].IET Radar, Sonar & Navigation,2017,11(2):219-225.
3	TANG S Y, DENG H, GUO P, et al. A modified CSA for missile-borne SAR with curved trajectory[C]//Proc. of the IEEE Radar Conference, 2020.
4	MEIH W,LIY C,XINGM D,et al.A frequency-domain imaging algorithm for translational variant bistatic forward-looking SAR[J].IEEE Trans.on Geoscience and Remote Sensing,2020,58(3):1502-1515. doi: 10.1109/TGRS.2019.2943743
5	MEIH W,MENGZ Q,LIUM Q,et al.Thorough understanding property for bistatic forward-looking high-speed maneuvering platform SAR[J].IEEE Trans.on Aerospace and Electronic Systems,2017,53(4):1826-1845. doi: 10.1109/TAES.2017.2674158
6	MENG Z Q, LI Y C, XING M D, et al. Imaging of missile-borne bistatic forward-looking SAR[C]//Proc. of the IEEE China Summit & International Conference on Signal and Information Processing, 2014: 179-183.
7	梅海文,李亚超,邢孟道,等.机-弹双基前视SAR俯冲段轨迹设计方法[J].系统工程与电子技术,2019,41(3):113-119.
	MEIH W,LIY C,XINGM D,et al.Trajectory design method for the terminal diving period of AMBFL-SAR[J].Systems Engineering and Electronics,2019,41(3):113-119.
8	WANG C H, LIU F F, WANG Z Z, et al. Translational invariant bistatic SAR based on tower crane: experiments and results[C]// Proc. of the Asia-Pacific Conference on Synthetic Aperture Radar, 2019.
9	SUN Q, LI M Z, SHEN D, et al. Research on fast algorithm for general bistatic SAR raw signal[C]//Proc. of the IEEE International Conference on RFID Technology and Application, 2018.
10	GUO P, JIAO X Y, WANG A Y, et al. Space-missile borne bistatic SAR geometry and imaging properties analysis[C]//Proc. of the IEEE International Geoscience and Remote Sensing Symposium, 2019: 2917-2920.
11	LI T T, CHEN K S, JIN M. Imaging performance of backward and forward bistatic SAR[C]//Proc. of the Progress in Electromagnetics Research Symposium, 2018: 669-676.
12	SONG X, LI Y C, WU C F, et al. Experiment and raw data processing of heterogeneous bistatic forward-looking SAR[C]// Proc. of the Asia-Pacific Conference on Synthetic Aperture Radar, 2019.
13	DING J B, LI Y C, WU C F, et al. Analysis of diving configuration of bistatic forward-looking SAR based on nonlinear chirp scaling algorithm[C]//Proc. of the Asia-Pacific Conference on Synthetic Aperture Radar, 2019.
14	郭媛,索志勇,王婷婷,等.弹载SAR系统优化设计方法[J].系统工程与电子技术,2020,42(7):1478-1483.
	GUOY,SUOZ Y,WANGT T,et al.Parameter optimization design method of missile-borne SAR system[J].Systems Engineering and Electronics,2020,42(7):1478-1483.
15	WEIP.Deep SAR imaging and motion compensation[J].IEEE Trans.on Image Processing,2021,30,2232-2247. doi: 10.1109/TIP.2021.3051484
16	孟自强,李亚超,胡奇,等.弹载双基前视SAR建模及运动/同步误差分析[J].系统工程与电子技术,2015,37(3):523-531.
	MENGZ Q,LIY C,HUQ,et al.Modeling and motion/synchronization error analysis of MBFL-SAR[J].Systems Engineering and Electronics,2015,37(3):523-531.
17	CHENS,YUANY,ZHANGS N,et al.A new imaging algorithm for forward-looking missile-borne bistatic SAR[J].IEEE Journal of Selected Topics in Applied Earth Observations and Remote Sensing,2016,9(4):1543-1552. doi: 10.1109/JSTARS.2015.2507260
18	WANG B N, XIAN M S, ZHOU L J, et al. The location model of platform in IN-AR/INS integrated navigation system[C]// Proc. of the IEEE International Geoscience and Remote Sensing Symposium, 2019: 1717-1720.
19	WANG J M, WANG Z, ZHANG S M, et al. SAR image matching area selection based on actual flight real-time image[C]//Proc. of the IAPR Workshop on Pattern Recognition in Remote Sensing, 2018.
20	CURLANDERJ C.Location of spaceborne SAR imagery[J].IEEE Trans.on Geoscience and Remote Sensing,1982,GE-20(3):359-364. doi: 10.1109/TGRS.1982.350455
21	CURLANDERJ C.Utilization of spaceborne SAR data for mapping[J].IEEE Trans.on Geoscience and Remote Sensing,1984,GE-22(2):106-112. doi: 10.1109/TGRS.1984.350601
22	冉聃,邓欢,李亚超,等.基于欧拉四面体的下降轨雷达图像定位方法[J].电子与信息学报,2017,39(3):677-683.
	RAND,DENGH,LIY C,et al.Radar image positioning method on decent trajectory based on Euler tetrahedron[J].Journal of Electronics and Information,2017,39(3):677-683.
23	潘志刚,王超,曹舸.基于距离方程组的机载SAR图像立体定位方法[J].中国科学院大学学报,2020,37(6):798-804.
	PANZ G,WANGC,CAOG.Stereo localization method for air-borne SAR image based on range equations[J].Journal of University of Chinese Academy of Sciences,2020,37(6):798-804.
24	梁毅,李晴晴,孙昆,等.利用SAR图像匹配的弹体定位新方法[J].西安电子科技大学报,2018,45(6):1-6.
	LIANGY,LIQ Q,SUNK,et al.A new method for missile positioning based on SAR scene matching[J].Journal of Xidian University,2018,45(6):1-6.
25	徐英杰,郭福成.基于高斯-牛顿迭代的三星时差定位融合算法[J].航天电子对抗,2020,36(5):14-17.
	XUY J,GUOF C.Triplet satellites location fusion algorithm of TDOA based on Gauss-Newton iteration[J].Aperospace Electronic Warfare,2020,36(5):14-17.
26	ZHAO X B, LI Y, LIU L. A target location method for HBFL-SAR[C]//Proc. of the IET International Radar Conference, 2015.
27	胥遇时. 双(多)基地合成孔径雷达定位方法[D]. 成都: 电子科技大学, 2018.
	XU Y S. Bistatic and multistatic SAR localization methods[D]. Chengdu: University of Electronic Science and Technology of China, 2018.
28	ZHONG X Q, WU J J, LI Z Y, et al. A location method for airborne bistatic SAR based on neighborhood recursion[C]//Proc. of the IEEE Radar Conference, 2015: 1193-1197.
29	梅海文,孟自强,李亚超,等.双基前视SAR几何定位及同步误差分析[J].电子与信息学报,2018,40(4):882-889.
	MEIH W,MENGZ Q,LIY C,et al.Bistatic forward-looking SAR geometrical positioning and analysis of synchronization error[J].Journal of Electronics and Information Technology,2018,40(4):882-889.
30	WEI Y L, SUN B, LIU L W. Error analysis of platform positioning based on SAR image matching[C]//Proc. of the Asia-Pacific Conference on Synthetic Aperture Radar, 2019.

接收雷达解析解	接收雷达惯导数据大小关系	接收雷达坐标选取准则
x_r	x′_r≥x_C	max(x′_r)
x_r	x′_r < x_C	min(x′_r)
y_r	y′_r≥x′_r	max(y′_r)
y_r	y′_r < x′_r	min(y′_r)
z_r	z′_r≥x′_r	max(z′_r)
z_r	z′_r < x′_r	min(z′_r)
