基于星座成形的高谱效编码调制方案

doi:10.12305/j.issn.1001-506X.2021.06.28

Abstract

Abstract:

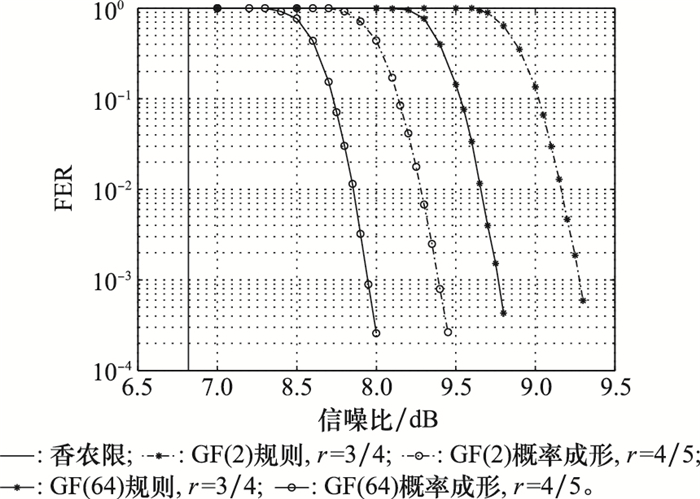

Aiming at the problem of shaping loss of regular quadrature amplitude modulation constellation in high-order modulation system, probabilistic shaping and geometric shaping schemes are studied and compared. Through the analysis of the average mutual information, it is shown theoretically that probabilistic shaping can obtain better shaping gain. Under the same spectral efficiency and frame error rate, the signal to noise ratio (SNR) of probabilistic shaping is lower than that of geometric shaping. In terms of coding, compared with binary low-density parity-check (LDPC) codes, nonbinary LDPC codes can obtain coding gain. Simulation results show that the high spectral efficient coded modulation scheme based on constellation shaping is effective and suitable for the ultra-high reliability requirements of future mobile communication systems.

Key words: probabilistic shaping, geometric shaping, high order modulation, average mutual information

CLC Number:

TN911.3

Weimin KANG, Hongwen YANG. High spectral efficient coded modulation scheme based on constellation shaping[J]. Systems Engineering and Electronics, 2021, 43(6): 1686-1691.

Figures/Tables 10

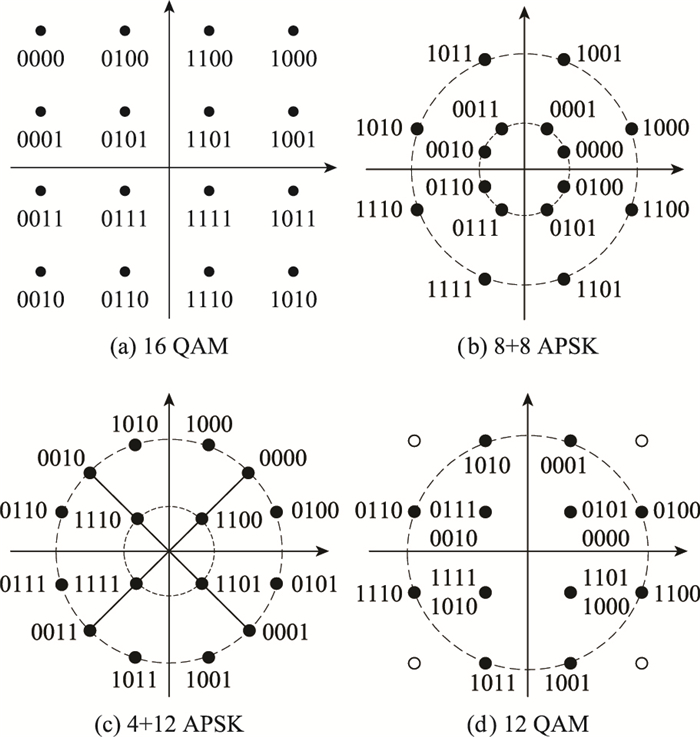

Fig.1

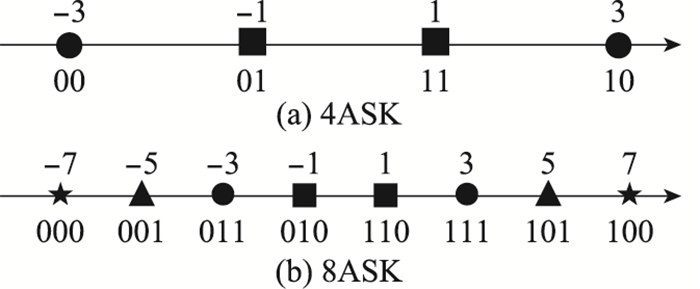

Fig.2

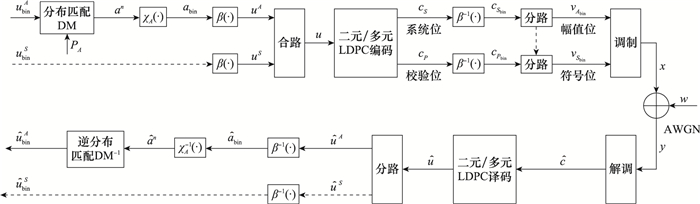

Fig.3

Table 1

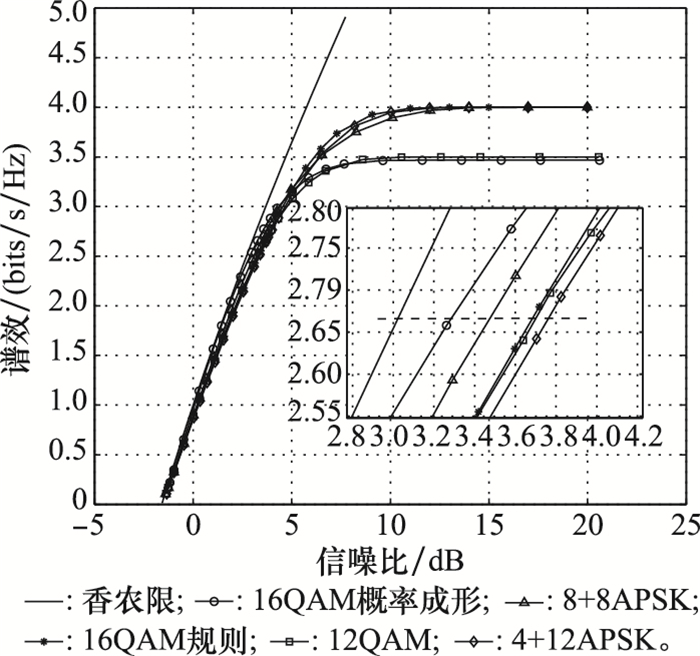

Fig.4

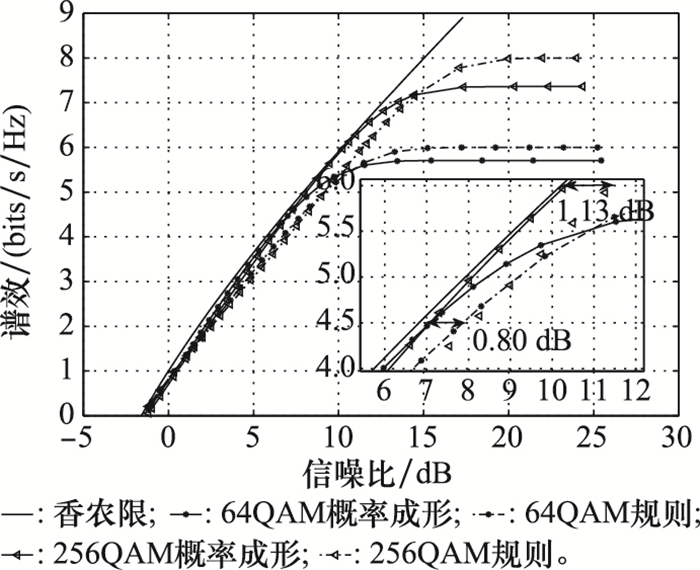

Fig.5

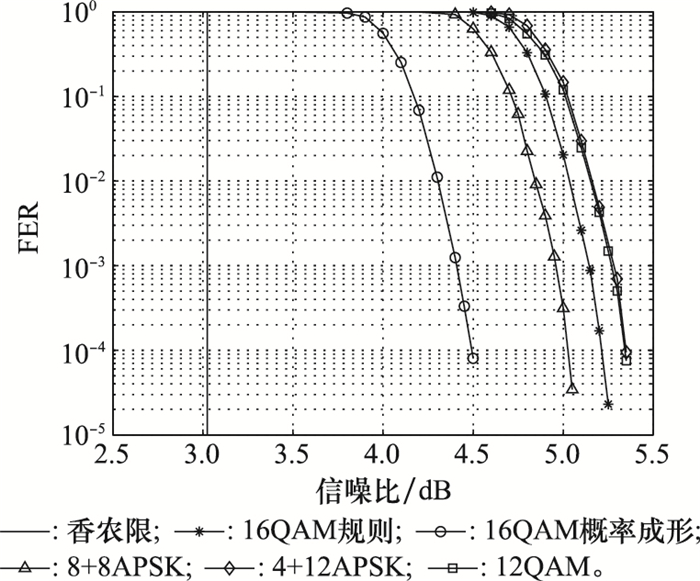

Fig.6

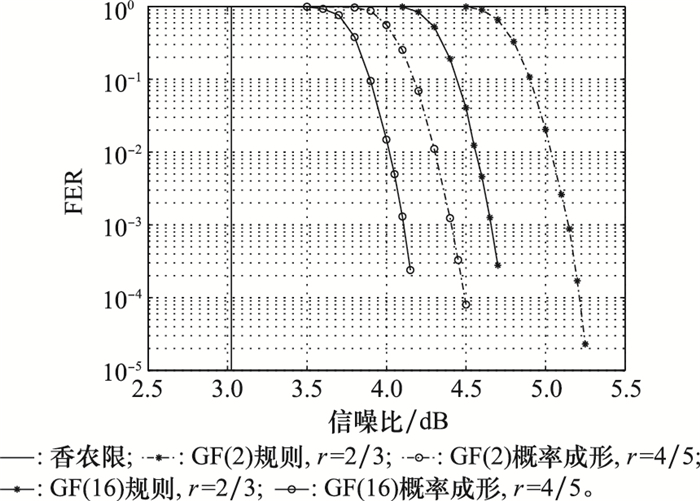

Fig.7

Fig.8

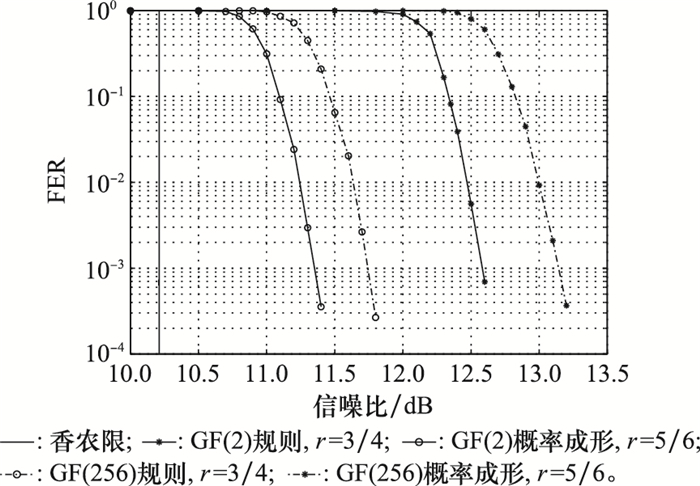

Fig.9

References 20

1	KLAUS D , JAAFAR E , HARALD H , et al. Defining 6G: challenges and opportunities[J]. IEEE Vehicular Technology Magazine, 2019, 14 (3): 14- 16. doi: 10.1109/MVT.2019.2922512
2	ZHANG L , LIANG Y C , NIYATO D . 6G visions: mobile ultra-broadband, super internet-of-things, and artificial intelligence[J]. China Communications, 2019, 16 (8): 1- 14. doi: 10.23919/JCC.2019.08.001
3	CHEN S Z , LIANG Y C , SUN S H , et al. Vision, requirements, and technology trend of 6G: how to tackle the challenges of system coverage, capacity, user data-rate and movement speed[J]. IEEE Wireless Communications, 2020, 27 (2): 218- 228. doi: 10.1109/MWC.001.1900333
4	SAAD W , BENNIS M , CHEN M . A vision of 6G wireless systems: applications, trends, technologies, and open research problems[J]. IEEE Network, 2020, 34 (3): 134- 142. doi: 10.1109/MNET.001.1900287
5	VISWANATHAN H , MOGENSEN P E . Communications in the 6G Era[J]. IEEE Access, 2020, 8, 57063- 57074. doi: 10.1109/ACCESS.2020.2981745
6	JR G D F , GALLAGER R G , LANG G R , et al. Efficient modulation for band-limited channels[J]. IEEE Journal on Selected Areas in Communications, 1984, 2 (5): 632- 647. doi: 10.1109/JSAC.1984.1146101
7	BARRUECO J , MONTALBAN J , REGUEIRO C , et al. Constellation design for bit-interleaved coded modulation(BICM) systems in advanced broadcast standards[J]. IEEE Trans.on Broadcasting, 2017, 63 (4): 603- 614. doi: 10.1109/TBC.2017.2677259
8	QU Z , DJORDJEVIC I B . On the probabilistic shaping and geometric shaping in optical communication systems[J]. IEEE Access, 2019, 7, 21454- 21464. doi: 10.1109/ACCESS.2019.2897381
9	BOCHERER G , STEINER F , SCHULTE P . Bandwidth efficient and rate-matched low-density parity-check coded modulation[J]. IEEE Trans.on Communications, 2015, 63 (12): 4651- 4665. doi: 10.1109/TCOMM.2015.2494016
10	BOCHERER G , SCHULTE P , STEINER F . Probabilistic shaping and forward error correction for fiber-optic communication systems[J]. Journal of Lightwave Technology, 2019, 37 (2): 230- 244. doi: 10.1109/JLT.2019.2895770
11	SCHULTE P , BOCHERER G . Constant composition distribution matching[J]. IEEE Trans.on Information Theory, 2016, 62 (1): 430- 434. doi: 10.1109/TIT.2015.2499181
12	KSCHISCHANG F R , PASUPATHY S . Optimal nonuniform signaling for Gaussian channels[J]. IEEE Trans.on Information Theory, 2002, 39 (3): 913- 929.
13	JANA M . Probabilistic shaping in time-frequency-packed tera-bit superchannel transmission[J]. IEEE Photonics Technology Letters, 2020, 32 (17): 1065- 1068. doi: 10.1109/LPT.2020.3011628
14	İşCAN O , BÖHNKE R , XU W . Probabilistic shaping using 5G new radio polar codes[J]. IEEE Access, 2019, 7, 22579- 22587. doi: 10.1109/ACCESS.2019.2898103
15	DAVEY M C , MACKAY D . Low-density parity check codes over GF(q)[J]. IEEE Communications Letters, 1998, 2 (6): 165- 167. doi: 10.1109/4234.681360
16	VOICILA A . Low-complexity decoding for nonbinary LDPC codes in high order fields[J]. IEEE Trans.on Communications, 2010, 58 (5): 1365- 1375. doi: 10.1109/TCOMM.2010.05.070096
17	STEINER F , BOCHERER G , LIVA G . Bit-metric decoding of non-binary LDPC codes with probabilistic amplitude shaping[J]. IEEE Communications Letters, 2018, 22 (11): 2210- 2213. doi: 10.1109/LCOMM.2018.2870180
18	STEINER F, LIVA G, BOCHERER G. Ultra-sparse non-binary LDPC codes for probabilistic amplitude shaping[C]//Proc. of the IEEE Global Communications Conference, 2017.
19	WU Z J , GAO X , JIANG C X . Nonbinary LDPC-coded spatial multiplexing for Rate-2 MIMO of DVB-NGH system[J]. IEEE Trans.on Broadcasting, 2018, 64 (2): 201- 210. doi: 10.1109/TBC.2017.2781119
20	CAIRE G , TARICCO G , BIGLIERI E . Bit-interleaved coded modulation[J]. IEEE Trans.on Information Theor, 1998, 44 (3): 927- 946. doi: 10.1109/18.669123

运算	Log-FFT-BP	Log-BP	GF(64)d_v=2	GF(2)d_v=3
加法	$ \left(2 q+\frac{4 q}{\log _{2} q}\right) d_{v}$	4d_v-1	341.33	11
比较	2qd_v	—	256	—
查表	2qd_v	4d_v	256	12
总计	$ \left(6 q+\frac{4 q}{\log _{2} q}\right) d_{v}$	8d_v-1	853.33	23
